前言
Full Stack Engineer V0.0.0.1
贡献名单
-
李喜
1. Docker
基于 CentOS 7
1.1. CentOS7安装配置
1.1.1. 准备分区
# XFS必须启用ftype参数,比如硬盘分区 /dev/sda1
mkfs.xfs -n ftype=1 -f $硬盘分区
# 挂载硬盘分区,用于存储Docker数据
echo `ll /dev/disk/by-uuid/|grep $硬盘分区|awk '{print "UUID="$9" /data xfs defaults 0 0"}'` >> /etc/fstab
# 自动挂载所有分区
mount -a
# 验证挂载
df -h|grep /data
mkdir -p /data/var/lib/docker
1.1.2. 升级内核
由于内核版本太低,Docker 存储方面有限制。需要升级到更版本内核。
| 每次官方更新了内核版本,grub.cfg会被覆盖。需要重新执行以下步骤。 |
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
rpm -Uvh http://www.elrepo.org/elrepo-release-7.0-3.el7.elrepo.noarch.rpm
# 稳定版本内核
yum --enablerepo=elrepo-kernel install kernel-ml
# 长期支持版本内核
yum --enablerepo=elrepo-kernel install kernel-lt
# 查找内核启动项
grep "menuentry 'CentOS Linux" /boot/grub2/grub.cfg|awk -F "'" '{print $2}'
grep "menuentry 'CentOS Linux" /boot/efi/EFI/centos/grub.cfg|awk -F "'" '{print $2}'
# 设置默认内核版本
grub2-set-default 'CentOS Linux (4.4.112-1.el7.elrepo.x86_64) 7 (Core)'
cp /boot/grub2/grub.cfg /boot/grub2/grub.cfg.bak
cp /boot/efi/EFI/centos/grub.cfg /boot/efi/EFI/centos/grub.cfg.bak
grub2-mkconfig -o /boot/grub2/grub.cfg
grub2-mkconfig -o /boot/efi/EFI/centos/grub.cfg
重启服务器。
1.1.3. 安装
yum install -y yum-utils \
device-mapper-persistent-data \
lvm2
yum-config-manager \
--add-repo \
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum install -y docker-ce
1.1.4. 配置
modprobe br_netfilter
echo br_netfilter >> /etc/modules-load.d/modules.conf
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.conf
echo "net.bridge.bridge-nf-call-iptables = 1" >> /etc/sysctl.conf
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf
sysctl -p
mkdir -p /etc/docker
cat << EOF > /etc/docker/daemon.json
{
"registry-mirrors": [
"https://registry.docker-cn.com",
"https://hub-mirror.c.163.com"
],
"data-root": "/var/lib/docker",
"storage-driver": "overlay2",
"dns" : [
"223.5.5.5",
"223.6.6.6"
]
}
EOF
| mirrors 位置最后一个优先级高 |
- registry-mirrors
-
Docker镜像源
- graph
-
Docker数据目录
- storage-driver
-
Docker 数据文件存储路径
- dns
-
容器默认DNS。如果不设置可能出现
git pull缓慢
1.1.5. 启动
systemctl enable docker
systemctl start docker
docker info
1.1.6. 新建自定义网桥
docker network create --subnet=10.10.10.0/16 --gateway=10.10.10.1 foo
docker network inspect foo
1.2. CentOS8安装配置
1.2.1. 准备分区
# XFS必须启用ftype参数,比如硬盘分区 /dev/sda1
mkfs.xfs -n ftype=1 -f $硬盘分区
# 挂载硬盘分区,用于存储Docker数据
echo `ll /dev/disk/by-uuid/|grep $硬盘分区|awk '{print "UUID="$9" /data xfs defaults 0 0"}'` >> /etc/fstab
# 自动挂载所有分区
mount -a
# 验证挂载
df -h|grep /data
mkdir -p /data/var/lib/docker
1.2.2. 安装
dnf install -y yum-utils
yum-config-manager \
--add-repo \
https://download.docker.com/linux/centos/docker-ce.repo
dnf install -y docker-ce docker-ce-cli containerd.io
systemctl enable docker
1.2.3. 配置
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.conf
echo "net.bridge.bridge-nf-call-iptables = 1" >> /etc/sysctl.conf
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf
sysctl -p
mkdir -p /etc/docker
cat << EOF > /etc/docker/daemon.json
{
"registry-mirrors": [
"https://registry.docker-cn.com",
"https://dockerhub.azk8s.cn",
"https://hub-mirror.c.163.com"
],
"data-root": "/var/lib/docker",
"storage-driver": "overlay2",
"dns" : [
"223.5.5.5",
"223.6.6.6"
]
}
EOF
| mirrors 位置最后一个优先级高 |
- registry-mirrors
-
Docker镜像源
- graph
-
Docker数据目录
- storage-driver
-
Docker 数据文件存储路径
- dns
-
容器默认DNS。如果不设置可能出现
git pull缓慢
最后,启动或重启docker服务:
systemctl restart docker
1.2.4. 查看Docker运行信息
[root@dell7 ~]# docker info
Client:
Debug Mode: false
Server:
Containers: 0
Running: 0
Paused: 0
Stopped: 0
Images: 1
Server Version: 19.03.13
Storage Driver: overlay2
Backing Filesystem: xfs
Supports d_type: true
Native Overlay Diff: true
Logging Driver: json-file
Cgroup Driver: cgroupfs
Plugins:
Volume: local
Network: bridge host ipvlan macvlan null overlay
Log: awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog
Swarm: inactive
Runtimes: runc
Default Runtime: runc
Init Binary: docker-init
containerd version: 8fba4e9a7d01810a393d5d25a3621dc101981175
runc version: dc9208a3303feef5b3839f4323d9beb36df0a9dd
init version: fec3683
Security Options:
seccomp
Profile: default
Kernel Version: 4.18.0-147.8.1.el8_1.x86_64
Operating System: CentOS Linux 8 (Core)
OSType: linux
Architecture: x86_64
CPUs: 4
Total Memory: 15.46GiB
Name: dell7
ID: WFX3:WXWH:WPML:VRCA:QRTN:LGCB:6UBM:V73O:QEGU:KADY:V3FH:E4Q6
Docker Root Dir: /var/lib/docker
Debug Mode: false
Registry: https://index.docker.io/v1/
Labels:
Experimental: false
Insecure Registries:
127.0.0.0/8
Registry Mirrors:
https://hub-mirror.c.163.com/
Live Restore Enabled: false
1.2.5. 测试
拉取测试镜像:
docker pull hello-world
[root@dell7 ~]# docker pull hello-world
Using default tag: latest
latest: Pulling from library/hello-world
0e03bdcc26d7: Already exists
Digest: sha256:e7c70bb24b462baa86c102610182e3efcb12a04854e8c582838d92970a09f323
Status: Downloaded newer image for hello-world:latest
docker.io/library/hello-world:latest
创建测试容器:
docker run --name hello hello-world
[root@dell7 ~]# docker run --name hello hello-world
Hello from Docker!
This message shows that your installation appears to be working correctly.
......
查看已经创建的容器:
docker ps -a
[root@dell7 ~]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
59cc42b09fce hello-world "/hello" 24 seconds ago Exited (0) 22 seconds ago hello
删除测试容器:
docker rm hello
1.3. 拉取镜像慢的问题
很多时候就算更换了源之后,docker pull 还是很慢时,用拷贝的方法更快。
在有镜像的系统上导出镜像:
docker save -o docker-centos6-php52.tar fifilyu/docker-centos6-php52
用 scp 或 rsync 把 docker-centos6-php52.tar 上传到目标系统,然后导入:
docker load -i docker-centos6-php52.tar
1.4. Pure-FTPd in Docker
必须使用 --without-capabilities 参数重新编译 Pure-FTPd,否则会出现以下错误:
[root@690bec85ee11 /]# /usr/sbin/pure-ftpd 421 Unable to switch capabilities : Operation not permitted
1.4.1. 重新打包
准备打包环境
cd ~
yum install yum-utils rpm-build gcc
yumdownloader --source pure-ftpd
rpm -ivh pure-ftpd-1.0.42-3.el7.src.rpm
yum-builddep pure-ftpd
修改包文件
sed -i 's/--with-capabilities /--without-capabilities /g' rpmbuild/SPECS/pure-ftpd.spec
准备源代码
rpmbuild -bp rpmbuild/SPECS/pure-ftpd.spec
重新打包
rpmbuild -ba rpmbuild/SPECS/pure-ftpd.spec
安装测试
rpm -ivh ~/rpmbuild/RPMS/x86_64/pure-ftpd-1.0.42-3.el7.centos.x86_64.rpm
/usr/sbin/pure-config.pl /etc/pure-ftpd/pure-ftpd.conf --daemonize
ps aux|grep ftp
1.5. 容器启动命令
docker run -d --restart=always --name test centos:7 docker-entrypoint.sh
docker-entrypoint.sh 表示容器中的 /usr/local/bin/docker-entrypoint.sh ,通常内容为:
#!/bin/sh
/usr/bin/rm -f /run/nginx.pid && /usr/sbin/nginx -t && /usr/sbin/nginx
# 始终放到最后,防止以上命令启动失败,导致容器无法启动。
# 容器启动失败的处理流程较复杂,用此代码保证能进入容器处理故障。
while true
do
sleep 100
done
docker run \
-d \
--restart always \
--env LANG=en_US.UTF-8 \
--env TZ=Asia/Shanghai \
--name lift360_all_data \
--mount type=bind,source=/etc/localtime,target=/etc/localtime,readonly \
--mount source=lift360_all_data,target=/data \
centos:6 \
bash -c 'while true; do sleep 100; done;'
1.5.1. 程序启动命令汇总
PSQL
docker pull centos/postgresql-94-centos7
docker run \
-d \
--restart always \
--env LANG=en_US.UTF-8 \
--env TZ=Asia/Shanghai \
--mount type=bind,source=/etc/localtime,target=/etc/localtime,readonly \
-p 18080:8080 \
--name xxl_job_tomcat \
xxl_job_tomcat \
docker-entrypoint.sh
#免密码登录
echo '127.0.0.1:15432:esafesys_com:postgres:GcMuEKzRtvNIAiX1' > ~/.pgpass
chmod 600 ~/.pgpass
psql -h 127.0.0.1 -p 15432 -U postgres -c "create database esafesys_com;"
#导入数据库
psql -h 127.0.0.1 -p 15432 -U postgres esafesys_com -f foo.sql
MySQL5.1
/usr/bin/mysqld_safe
或者
/usr/libexec/mysqld \
--basedir=/usr \
--datadir=/var/lib/mysql \
--user=mysql \
--log-error=/var/log/mysqld.log \
--pid-file=/var/run/mysqld/mysqld.pid \
--socket=/var/lib/mysql/mysql.sock
MySQL5.6+
/usr/sbin/mysqld \
--basedir=/usr \
--datadir=/var/lib/mysql \
--plugin-dir=/usr/lib64/mysql/plugin \
--user=mysql --log-error=/var/log/mysqld.log \
--pid-file=/var/run/mysqld/mysqld.pid \
--socket=/var/lib/mysql/mysql.sock
Tomcat
su tomcat --shell /usr/libexec/tomcat/server start
zookeeper
su - zookeeper -c '/usr/local/zookeeper/bin/zkServer.sh start-foreground'
Nginx
/usr/bin/rm -f /run/nginx.pid && /usr/sbin/nginx -t && /usr/sbin/nginx
Pure-FTPd
/usr/sbin/pure-config.pl /etc/pure-ftpd/pure-ftpd.conf --daemonize
| 要在 Docker 中使用 Pure-FTPd,请查看 Pure-FTPd in Docker |
2. Nginx
2.1. HTTP基本身份验证
2.1.1. 生成密码文件
安装 htpasswd 命令的软件包和 pwgen 包:
apt install apache2-utils pwgen
yum install -y httpd-tools pwgen
# 或
dnf install -y httpd-tools pwgen
git_password=`pwgen -s 20`
echo $git_password
# 添加第一个用户时,创建 /etc/nginx/.htpasswd 文件
echo $git_password | htpasswd -i -c /etc/nginx/.htpasswd git
|
添加第二个用户时,不需要
|
配置Nginx
在Nginx的Server配置中,加入:
location /api {
auth_basic "Administrator’s Area";
auth_basic_user_file /etc/nginx/.htpasswd;
}
生效新配置:
nginx -t && nginx -s reload
2.2. proxy_pass 传递查询参数
proxy_pass 最后一个 "/" 表示传递查询参数到后端。
location /api-elevator/ {
proxy_pass http://ttd1_api_elevator:8080/;
}
yum install -y httpd-tools
htpasswd -b -c /etc/nginx/conf.d/dl.2012iot.com.pass admin CaNxR7doJLW76HPXGkrsMmH9epCtSIbn23bz6bOm
server {
listen 80;
server_name dl.2012iot.com;
root /usr/share/nginx/html;
access_log off;
auth_basic "auth";
auth_basic_user_file /etc/nginx/conf.d/dl.2012iot.com.pass;
charset UTF-8;
autoindex on;
autoindex_exact_size off;
autoindex_localtime on;
}
2.3. 目录浏览
server {
listen 80;
server_name dl.cdgeekcamp.com;
root /data/web/dl.cdgeekcamp.com;
autoindex on;
autoindex_localtime on;
# 设置文件大小显示单位
autoindex_exact_size off;
}
日志文件设置MIME,支持直接浏览器显示:
yum install -y httpd-tools pwgen
log_password=$(pwgen -s 20)
echo $log_password
htpasswd -b -c /etc/nginx/.htpasswd log $log_password
server {
listen 34567;
server_name _;
root /var/log/nginx;
autoindex on;
autoindex_localtime on;
# 设置文件大小显示单位
autoindex_exact_size off;
auth_basic "Administrator’s Area";
auth_basic_user_file /etc/nginx/.htpasswd;
location ~ \.log$ {
default_type text/plain;
}
}
.gz 文件会提示下载(MIME:application/octet-stream)
|
2.4. 缓存静态文件
proxy_cache_path /var/lib/nginx/tmp/static_cache levels=1:2 keys_zone=static_cache:100m inactive=1d max_size=10g;
server {
listen 80;
server_name chinakaoyan.com www.chinakaoyan.com;
root /usr/share/nginx/html/;
access_log /var/log/nginx/www.log main;
location / {
proxy_pass http://192.168.2.204:80;
}
location ~* \.(ico|gif|jpg|jpeg|png|bmp|zip|rar|7z|js|css|docx?|xls|pdf)$ {
proxy_cache_valid 200 10d;
proxy_cache_key $uri;
proxy_cache static_cache;
proxy_pass http://192.168.2.204:80;
}
}
2.5. 关于代理链的客户端真实IP地址问题
173.88.111.174(浏览器) → 103.198.200.207(CDN) → 102.237.179.242(网络反代)
常规配置,应用程序只能得到CDN的IP地址,获得真实客户端(浏览器)IP地址需要特殊代码。
启用 ngx_http_realip_module 模块,可以不修改代码获得真实客户端IP地址。
2.5.1. CDN Nginx配置
103.198.200.207 Nginx配置:
server {
location / {
# 一旦当前作用域设置proxy_set_header,全局设置即刻失效,注意补全所有需要的Header
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Proto http;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://127.0.0.1:1034;
}
}
2.5.2. 应用服务器Nginx配置
102.237.179.242 Nginx配置:
http {
log_format main '$host $server_port $remote_addr - $remote_user [$time_local] "$request" '
'$status $request_time $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for" $realip_remote_addr';
log_format postdata '$host $server_port $remote_addr - $remote_user [$time_local] "$request" '
'$status $request_time $body_bytes_sent "$http_referer" ""'
'"$http_user_agent" "$http_x_forwarded_for" $realip_remote_addr "$request_body"';
set_real_ip_from 0.0.0.0/0;
real_ip_header X-Real-IP;
real_ip_recursive on;
}
启用 ngx_http_realip_module 模块前
foo.com 2081 102.237.179.242 - - [07/Oct/2023:13:05:23 +0800] "GET /api/login HTTP/1.0" 200 0.062 58 "https://www.foo.com/" "Mozilla/5.0 (Linux; Android 6.0; Nexus 5 Build/MRA58N) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.0.0 Mobile Safari/537.36" "173.88.111.174, 103.198.200.207"
启用 ngx_http_realip_module 模块后
foo.com 2081 173.88.111.174 - - [07/Oct/2023:13:05:23 +0800] "GET /api/login HTTP/1.0" 200 0.062 58 "https://www.foo.com/" "Mozilla/5.0 (Linux; Android 6.0; Nexus 5 Build/MRA58N) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.0.0 Mobile Safari/537.36" "173.88.111.174"
3. PostgreSQL
3.1. 基础入门
3.1.1. 初始化
mkdir -p /var/lib/postgres/data
chown -R postgres:postgres /var/lib/postgres
su - postgres -c "initdb --locale en_US.UTF-8 -D '/var/lib/postgres/data'"
| 默认数据库 |
postgres |
| 默认用户名称 |
postgres |
| 默认用户密码 |
无 |
3.1.2. 配置文件
- 主配置文件
-
/var/lib/postgres/data/postgresql.conf
- 客户端认证配置文件
-
/var/lib/postgres/data/pg_hba.conf
pg_hba.conf 中有:
# TYPE DATABASE USER ADDRESS METHOD
# "local" is for Unix domain socket connections only
local all all trust
# IPv4 local connections:
host all all 127.0.0.1/32 trust
socket连接
local 行表示任意用户使用socket(不指定 -h 参数)时连接连接所有数据库,不需要密码。比如,
[postgres@ryzen7 ~]$ psql
psql (13.4)
输入 "help" 来获取帮助信息.
postgres=#
这种连接和监听端口 5432 无关。
连接指定主机(端口5432)
host 行表示任意用户通过 -h 127.0.0.1 连接所有数据库,不需要密码。
[postgres@ryzen7 ~]$ psql -h 127.0.0.1
psql (13.4)
输入 "help" 来获取帮助信息.
postgres=
通常,我会将上面这行修改为:
host all all 0.0.0.0/0 password
表示 -h 指定主机时,必须使用密码登录。
3.1.3. 启动服务
systemctl enable postgresql
systemctl start postgresql
systemctl status postgresql
3.1.4. 通过socket登录数据库
切换到postgres用户:
sudo su - postgres
[foo@ryzen7 ~]$ sudo su - postgres
[sudo] foo 的密码:
[postgres@ryzen7 ~]$ id
用户id=88(postgres) 组id=88(postgres) 组=88(postgres)
直接socket登录pg,不需要 -h 参数:
sudo su - postgres -c psql
[foo@ryzen7 ~]$ sudo su - postgres -c psql
[sudo] foo 的密码:
psql (13.4)
输入 "help" 来获取帮助信息.
postgres=#
3.1.5. psql创建用户
psql 登录pg后,新建用户 foo,同时设置密码:
create user foo with password 'password';
[foo@ryzen7 ~]$ sudo su - postgres -c psql
[sudo] foo 的密码:
psql (13.4)
输入 "help" 来获取帮助信息.
postgres=# create user foo with password 'password';
CREATE ROLE
postgres=#
3.1.6. psql创建数据库
psql 登录pg后,新建数据库 testdb,同时设置数据库主用户:
create database testdb owner foo;
[foo@ryzen7 ~]$ sudo su - postgres -c psql
[sudo] foo 的密码:
psql (13.4)
输入 "help" 来获取帮助信息.
postgres=# create database testdb owner foo;
CREATE DATABASE
postgres=#
3.1.7. 测试通过网络登录数据库
用新建的用户登录数据库 testdb:
psql -h 127.0.0.1 -U foo testdb
[foo@ryzen7 ~]$ psql -h 127.0.0.1 -U foo testdb
用户 foo 的口令:
psql (13.4)
输入 "help" 来获取帮助信息.
testdb=>
[foo@ryzen7 ~]$ psql -h 127.0.0.1 -U foo testdb
用户 foo 的口令:
psql: 错误: FATAL: password authentication failed for user "foo"
pg_hba.conf 中必须设置 password 认证密码登录才会有效。
|
3.1.8. 导入导出
pg_dump --inserts -h 127.0.0.1 -U foo testdb -f testdb.sql
psql -h 127.0.0.1 -U foo testdb -f testdb.sql
3.1.9. pgsql控制台命令
| \h |
查看SQL命令的解释,比如\h select。 |
| \? |
查看psql命令列表。 |
| \l |
列出所有数据库。 |
| \c [database_name] |
连接其他数据库。 |
| \d |
列出当前数据库的所有表格。 |
| \d [table_name] |
列出某一张表格的结构。 |
| \du |
列出所有用户。 |
| \e |
打开文本编辑器。 |
| \conninfo |
列出当前数据库和连接的信息。 |
| \password |
修改当前用户密码 |
| \q |
退出pgsql |
3.2. 常用SQL
create user dbuser with password 'password';
grant all privileges on database db to dbuser;
create database db;
create database db owner dbuser;
alter database db rename to newdb;
create table table_name(name varchar(20), signup_date date);
insert into table_name(name, signup_date) values('张三', '2013-12-22');
select * from table_name;
update table_name set name = '李四' where name = '张三';
delete from table_name where name = '李四' ;
alter table table_name add email varchar(40);
alter table table_name alter column signup_date set not null;
alter table table_name rename column signup_date to signup;
alter table table_name drop column email;
alter table table_name rename to new_table_name;
drop table if exists table_name;
3.3. 常用技巧
3.3.1. 查看表大小
select relname, pg_size_pretty(pg_relation_size(relid)) from pg_stat_user_tables where schemaname='public' order by pg_relation_size(relid) desc;
zpmod=> select relname, pg_size_pretty(pg_relation_size(relid)) from pg_stat_user_tables where schemaname='public' order by pg_relation_size(relid) desc;
relname | pg_size_pretty
-----------+----------------
node | 8192 bytes
node_attr | 0 bytes
(2 行记录)
4. Linux
4.1. 常用命令
4.1.1. 烤机必备
从0设备到空设备持续写入,会占用单核100%:
dd if=/dev/zero of=/dev/null
如果不够,多来几个就行。
4.1.2. find分别查找目录和文件
find . -type d|xargs -d '\n' chmod 755
find . -type f|xargs -d '\n' chmod 644
由于 xargs 默认使用空格为分隔符,导致目录或文件中有空格时无法正常使用。
|
4.1.3. 创建用于运行服务的用户
useradd --comment "Python User" --user-group --no-create-home --shell /usr/bin/nologin python
4.1.4. 仅修改子目录中的文件权限,忽略目录
find . -type f -exec chmod 644 -- {} +
4.1.5. 跨行替换文件内容
需要将
INSERT INTO `tb1` VALUES (1, 607); INSERT INTO `tb1` VALUES (2, 1851);
替换为
INSERT INTO `tb1` VALUES (1, 607),(2, 1851);
perl -i -p -E 'BEGIN{undef $/;} s/;\r\nINSERT INTO `[a-zA-Z0-9_]+` VALUES \(/, \(/smg' unilive.sql.test
4.1.6. Nginx日志按日期排序
foo.com 443 38.112.15.172 - - [24/Oct/2023:13:26:53 +0800] "GET / HTTP/1.0" 200 0.001 19023 "https://foo.com/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/105.0.5195.127 Safari/537.36"
sort -t ' ' \
-k 6.2,6.3n \
-k 6.5,6.7M \
-k 6.9,6.12n \
-k 6.14,6.15n \
-k 6.17,6.18n \
-k 6.20,6.21n \
access.log
- 参数说明
-
- -t
-
以空格分列,针对第六列
[24/Oct/2023:13:26:53做排序操作 - -k
-
排序关键字,参数值格式:
"开始列号[排序规则],结束列号[排序规则]"。 比如,1n,1n表示从第1列行首开始到第1列行尾结束,都以数字规则"n"排序。按前后顺序,参数分别表示:-
日期(如
24)按数字排序 -
月份(如
Oct)按英文月份缩写排序 -
年份(如
2023)按数字排序 -
小时(如
13)按数字排序 -
分钟(如
26)按数字排序 -
秒(如
53)按数字排序
-
4.1.7. 双网卡
单网卡系统已经正常工作,配有公网IP地址。
现,需要双公网IP地址(不同网段)上网。
所以,需要设置网卡路由支持第二张网卡IP通外网。
default via 192.168.0.1 dev eth0 proto dhcp metric 100
169.254.169.254 via 192.168.0.1 dev eth0 proto dhcp metric 100
192.168.0.0/24 dev eth0 proto kernel scope link src 192.168.0.68 metric 100
192.168.1.0/24 dev eth1 proto kernel scope link src 192.168.1.26 metric 101
ip rule
ip route add default via 192.168.1.1 dev eth1 table 20
ip route add 192.168.1.0/24 dev eth1 table 20
ip rule add from 192.168.1.175 table 20
ip rule
ip route show table 20
ping -I 192.168.1.175 223.5.5.5
cat << EOF >> /etc/rc.local
# wait for nics up
sleep 5
# Add v4 routes for eth1
ip route flush table 20
ip route add default via 192.168.1.1 dev eth1 table 20
ip route add 192.168.1.0/24 dev eth1 table 20
ip rule add from 192.168.1.175 table 20
EOF
4.2. NetworkManager
4.2.1. nmcli
配置IP地址
nmcli c modify eth0 ipv4.addresses 192.168.2.12/24 ipv4.method manual
nmcli c modify eth0 ipv4.gateway 192.168.2.1
nmcli c modify eth0 ipv4.dns "223.5.5.5 223.6.6.6"
物理网卡加入网桥
nmcli c add type Ethernet autoconnect yes con-name em1 ifname em1
nmcli c add type bridge autoconnect yes con-name br1 ifname br1
nmcli c modify br1 bridge.stp no
nmcli c modify br1 ipv6.method ignore
nmcli c modify br1 ipv4.addresses 192.168.2.8/24 ipv4.method manual
nmcli c modify br1 ipv4.gateway 192.168.2.1
nmcli c modify br1 ipv4.dns "223.5.5.5 223.6.6.6"
# 以下3条命令必须同时执行,最好放到脚本里面执行。因为,delete网卡后,可能会断网。重启网络服务或启动网桥后才能恢复
cat << EOF > /tmp/set_br1.sh
nmcli c delete em1
nmcli c add type bridge-slave autoconnect yes con-name em1 ifname em1 master br1
nmcli c up br1
EOF
sh /tmp/set_br1.sh &
rm -f /tmp/set_br1.sh
5. MySQL
5.1. MySQL57安装
5.1.1. 新增Yum仓库
yum install -y https://dev.mysql.com/get/mysql80-community-release-el7-7.noarch.rpm
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-mysql*
yum-config-manager --disable mysql-connectors-community | egrep '(\[mysql-connectors-community\])|enabled'
yum-config-manager --disable mysql-tools-community | egrep '(\[mysql-tools-community\])|enabled'
yum-config-manager --disable mysql80-community | egrep '(\[mysql80-community\])|enabled'
| 按需单独启用MySQL仓库 |
5.1.2. 安装MySQL57
yum --enablerepo=mysql57-community install -y mysql-community-server
5.1.3. 初始化MySQL57
mkdir -p /var/log/mysqld
touch /var/log/mysqld/error.log
chown -R mysql:mysql /var/log/mysqld
crudini --set --existing /etc/my.cnf mysqld log-error /var/log/mysqld/error.log
mkdir -p /data/mysql
crudini --set --existing /etc/my.cnf mysqld datadir /data/mysql
5.1.4. 配置MySQL57
crudini --set /etc/my.cnf mysqld default-storage-engine InnoDB
crudini --set /etc/my.cnf mysqld disabled_storage_engines '"MyISAM"'
crudini --set /etc/my.cnf mysqld bind-address 0.0.0.0
crudini --set /etc/my.cnf mysqld max_connections 1000
crudini --set /etc/my.cnf mysqld general_log OFF
crudini --set /etc/my.cnf mysqld general_log_file /var/log/mysqld/general.log
crudini --set /etc/my.cnf mysqld long_query_time 3
crudini --set /etc/my.cnf mysqld slow_query_log ON
crudini --set /etc/my.cnf mysqld slow_query_log_file /var/log/mysqld/slow_query.log
# 开启兼容模式,兼容老MySQL代码,比如使用空字符串代替NULL插入数据
crudini --set /etc/my.cnf mysqld sql_mode '""'
crudini --set /etc/my.cnf mysqld skip-name-resolve 'OFF'
crudini --set /etc/my.cnf mysqldump max_allowed_packet 100M
echo "quick" >> /etc/my.cnf
echo "quote-names" >> /etc/my.cnf
systemctl enable mysqld
systemctl start mysqld
systemctl status mysqld
● mysqld.service - MySQL Server
Loaded: loaded (/usr/lib/systemd/system/mysqld.service; enabled; vendor preset: disabled)
Active: active (running) since Fri 2023-09-15 22:11:05 CST; 9s ago
Docs: man:mysqld(8)
http://dev.mysql.com/doc/refman/en/using-systemd.html
Process: 28577 ExecStart=/usr/sbin/mysqld --daemonize --pid-file=/var/run/mysqld/mysqld.pid $MYSQLD_OPTS (code=exited, status=0/SUCCESS)
Process: 28540 ExecStartPre=/usr/bin/mysqld_pre_systemd (code=exited, status=0/SUCCESS)
Main PID: 28580 (mysqld)
CGroup: /system.slice/mysqld.service
└─28580 /usr/sbin/mysqld --daemonize --pid-file=/var/run/mysqld/mysqld.pid
Sep 15 22:11:04 gitlab_a_test systemd[1]: Starting MySQL Server...
Sep 15 22:11:05 gitlab_a_test systemd[1]: Started MySQL Server.
5.1.5. 修改密码
临时密码有不常用的特殊字符,不便日常管理。不降低安全性的前提性,更改MySQL密码
MYSQL_TMP_ROOT_PASSWORD=$(grep 'A temporary password' /var/log/mysqld/error.log | tail -n 1 | awk '{print $NF}')
export BY_MYSQL_ROOT_PASSWORD=$(pwgen -csnB 10)_$(pwgen -csnB 10)
# 永久保存临时配置(重新登录或重启都有效)
sed -i '/export BY_/d' ~/.bash_profile && env | grep BY_ | awk '{print "export "$1}' >> ~/.bash_profile
echo -e " MySQL用户名:root\nMySQL临时密码:${MYSQL_TMP_ROOT_PASSWORD}\n MySQL新密码:${BY_MYSQL_ROOT_PASSWORD}"
mysqladmin -uroot -p"${MYSQL_TMP_ROOT_PASSWORD}" password ${BY_MYSQL_ROOT_PASSWORD}
MySQL用户名:root MySQL临时密码:ABCpt*aQ9:k4 MySQL新密码:sSU9vdfRUP_i7nLFrcYFF
5.1.6. 本机无密码登录设置
脚本无人化配置(自动输入密码)
-
执行脚本
unbuffer expect -c " spawn mysql_config_editor set --skip-warn --login-path=client --host=localhost --user=root --password expect -nocase \"Enter password:\" {send \"${BY_MYSQL_ROOT_PASSWORD}\n\"; interact} "终端输出spawn mysql_config_editor set --skip-warn --login-path=client --host=localhost --user=root --password (1) Enter password:
1 注意 --login-path参数值为 client,表示可以这样(mysql --login-path=client)无密码执行MySQL命令 -
查看MySQL无密码配置清单
mysql_config_editor print --all终端输出[client] (1) user = "root" password = ***** host = "localhost"
1 此处的名称必须与前文的 --login-path=client一致,都是client
无密码登录测试
现在,可以不带用户名称及密码在终端执行 mysql 命令了。比如,查看数据库列表:
mysql -e "show databases;"
+--------------------+ | Database | +--------------------+ | information_schema | | mysql | | performance_schema | | sys | +--------------------+
|
当
|
5.1.7. 卸载密码插件
默认的密码复杂度要求太高,卸载之:
mysql -e "uninstall plugin validate_password;"
5.2. MySQL57主从
采用冷复制方式
5.2.1. 配置文件
公共配置
mkdir -p /data/mysql_data_log
chown -R mysql:mysql /data/mysql_data_log
crudini --set /etc/my.cnf mysqld expire_logs_days 30
crudini --set /etc/my.cnf mysqld max_binlog_size 1GB
crudini --set /etc/my.cnf mysqld log-bin /data/mysql_data_log/mysql-bin
crudini --set /etc/my.cnf mysqld log_bin_index /data/mysql_data_log/mysql-bin.index
crudini --set /etc/my.cnf mysqld relay-log /data/mysql_data_log/relay-log
crudini --set /etc/my.cnf mysqld relay-log-index /data/mysql_data_log/relay-log-index
crudini --set /etc/my.cnf mysqld relay-log-info-file /data/mysql_data_log/relay-log.info
#强烈建议,其它格式可能造成数据不一致
crudini --set /etc/my.cnf mysqld binlog_format row
crudini --set /etc/my.cnf mysqld gtid-mode on
crudini --set /etc/my.cnf mysqld enforce_gtid_consistency on
crudini --set /etc/my.cnf mysqld default-storage-engine InnoDB
crudini --set /etc/my.cnf mysqld disabled_storage_engines '"MyISAM"'
crudini --set /etc/my.cnf mysqldump max_allowed_packet 100M
echo 'quick' >> /etc/my.cnf
echo 'quote-names' >> /etc/my.cnf
主的配置
crudini --set /etc/my.cnf mysqld master-verify-checksum on
crudini --set /etc/my.cnf mysqld server_id 1
# 主可读可写
crudini --set /etc/my.cnf mysqld read_only off
crudini --set /etc/my.cnf mysqld super_read_only off
从的配置
crudini --set /etc/my.cnf mysqld slave-sql-verify-checksum on
crudini --set /etc/my.cnf mysqld skip-slave-start on
crudini --set /etc/my.cnf mysqld server_id 2
# 从可读不可写
crudini --set /etc/my.cnf mysqld read_only on
crudini --set /etc/my.cnf mysqld super_read_only on
# 从写bin log,做实时备份需要
crudini --set /etc/my.cnf mysqld log-slave-updates on
5.2.2. 主上的操作
mysql -e "update mysql.user set host='%' where user='root';flush privileges;"
mysql -e "CREATE USER 'repl'@'%' IDENTIFIED BY 'Wielae7eg6Ae9ebayiec';"
mysql -e "GRANT REPLICATION SLAVE ON *.* TO 'repl'@'%' WITH GRANT OPTION;"
mysql -e "show master status;"
systemctl stop mysqld
tar zcf /tmp/mysql.tar.gz -C /data mysql
systemct start mysqld
cd /tmp && python3 -m http.server
| 将MySQL数据目录打包压缩,上传至从服务器解压,将其作为从服务器的数据目录 |
5.2.3. 从上的操作
wget x.x.x.x:8000/mysql.tar.gz -O mysql.tar.gz
rm -r /data/mysql
tar xf mysql.tar.gz -C /data
echo -e "[auto]\nserver-uuid=$(uuidgen)" > /data/mysql/auto.cnf
rm -f /data/mysql/*.log
systemctl start mysqld
# 因为是冷复制 master_auto_position=1
mysql -e "change master to master_port=3306, master_host='x.x.x.x', master_user='repl', master_password='Wielae7eg6Ae9ebayiec', master_auto_position=1;"
mysql -e "start slave;"
mysql -e "show slave status\G;"
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: x.x.x.x
Master_User: repl
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: mysql-bin.000005
Read_Master_Log_Pos: 353
Relay_Log_File: relay-log.000004
Relay_Log_Pos: 454
Relay_Master_Log_File: mysql-bin.000005
Slave_IO_Running: Yes (1)
Slave_SQL_Running: Yes (2)
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 353
Relay_Log_Space: 695
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 1
Master_UUID: 2a7f13cc-76fb-11ee-8d0e-fa163e0b63c7
Master_Info_File: /data/mysql/master.info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates (3)
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set: 2a7f13cc-76fb-11ee-8d0e-fa163e0b63c7:7
Executed_Gtid_Set: 2a7f13cc-76fb-11ee-8d0e-fa163e0b63c7:1-7,
fc414685-9b00-4294-a441-750fabb9d141:1-2
Auto_Position: 1
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
| 1 | 主从正在运行 |
| 2 | 主从正在运行 |
| 3 | 主从状态正常,无错误 |
5.3. 常用命令
5.3.1. MySQL 8.0重置密码
带 --skip-grant-tables 参数启动MySQL服务
/usr/libexec/mysqld --basedir=/usr --user=mysql --skip-grant-tables
空密码直接登录MySQL
mysql
执行MySQL指令
select host, user, authentication_string from mysql.user;
# 刷新权限后,才能使用password指令
flush privileges;
set password for 'root'@'localhost'='geek';
select host, user, authentication_string from mysql.user;
exit
测试新密码
mysql -uroot -pgeek -e 'show databases;'
重启MySQL
移除 --skip-grant-tables 参数,重启MySQL服务
5.3.2. 卸载密码插件
MySQL5.7+以上的版本安装后必须先改密码,才能进行其它操作:
# 设置临时密码
mysqladmin -uroot -p'旧密码' password "1qaz@2wsX"
# MySQL 5.7
mysql -uroot -p'1qaz@2wsX' -e "uninstall plugin validate_password;"
# MySQL 8.0
mysql -uroot -p'1qaz@2wsX' -e "UNINSTALL COMPONENT 'file://component_validate_password';"
# 设置新密码
mysqladmin -uroot -p'1qaz@2wsX' password '新密码'
5.3.3. 创建数据库时指定字符集
CREATE DATABASE db_name DEFAULT CHARACTER SET utf8mb4 DEFAULT COLLATE utf8mb4_unicode_ci;
5.3.4. 新建或修改密码、开放指定HOST登录
CREATE USER 'dummy'@'localhost';
CREATE USER 'finley'@'localhost' IDENTIFIED BY 'password';
GRANT ALL ON *.* TO 'finley'@'localhost' WITH GRANT OPTION;
use mysql
update user set host = '%' where user ='root';
flush privileges;
use mysql
ALTER USER 'root'@'%' IDENTIFIED BY 'geek';
flush privileges;
use mysql
grant all privileges on *.* to root@"172.17.%.%" identified by "geek";
update user set Grant_priv='Y' where User='root' and Host='172.17.%.%';
flush privileges;
5.3.5. 本机无密码登录
mysql_config_editor set --login-path=client --host=localhost --user=root --password
mysql_config_editor print
mysql --login-path=client db_name
mysql db_name
5.3.6. 查看字符集
|
需要中文可以考虑用 修改表排序规则:
查看表排序规则:
参考: https://dev.mysql.com/doc/refman/8.0/en/charset-unicode-sets.html |
mysql> show variables like 'collation%'; +----------------------+--------------------+ | Variable_name | Value | +----------------------+--------------------+ | collation_connection | utf8mb4_unicode_ci | | collation_database | utf8mb4_unicode_ci | | collation_server | utf8mb4_unicode_ci | +----------------------+--------------------+ 3 rows in set (0.00 sec) mysql> show variables like 'character%'; +--------------------------+----------------------------+ | Variable_name | Value | +--------------------------+----------------------------+ | character_set_client | utf8mb4 | | character_set_connection | utf8mb4 | | character_set_database | utf8mb4 | | character_set_filesystem | binary | | character_set_results | utf8mb4 | | character_set_server | utf8mb4 | | character_set_system | utf8 | | character_sets_dir | /usr/share/mysql/charsets/ | +--------------------------+----------------------------+ 8 rows in set (0.00 sec)
mysql> show create database ghibli; +----------+----------------------------------------------------------------------------------------------------------------------------------+ | Database | Create Database | +----------+----------------------------------------------------------------------------------------------------------------------------------+ | ghibli | CREATE DATABASE `ghibli` /*!40100 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci */ /*!80016 DEFAULT ENCRYPTION='N' */ | +----------+----------------------------------------------------------------------------------------------------------------------------------+ 1 row in set (0.00 sec)
mysql> show create table pre_ucenter_memberfields; Current database: db_name +-----------------------------------------------------------------+ | Table | Create Table| +-----------------------------------------------------------------+ | pre_ucenter_memberfields | CREATE TABLE `pre_ucenter_memberfields` ( `uid` mediumint(8) unsigned NOT NULL DEFAULT '0', `blacklist` text NOT NULL, PRIMARY KEY (`uid`) ) ENGINE=InnoDB DEFAULT CHARSET=gbk | +-----------------------------------------------------------------+ 1 row in set (0.98 sec)
5.3.7. 修改表字符集
ALTER TABLE table_name CONVERT TO CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
ALTER DATABASE db_name CHARACTER SET = utf8mb4 COLLATE = utf8mb4_unicode_ci;
5.3.8. 备份和还原
# 导出数据库
mysqldump db_name > db_name_dump.sql
# 导出数据库并压缩
mysqldump db_name | gzip > db_name_$(date +%Y_%m_%d_%H_%M_%S).sql.gz
# 导出不带create table的表数据,每行一个INSERT INTO
mysqldump db_name table_name --no-create-info --extended-insert=false
# 每行一个INSERT INTO,替换成INSERT IGNORE INTO,用于合并同表的数据
# 如果表ID存在,则跳过插入
mysqldump db_name table_name --no-create-info --extended-insert=false | grep -E '(INSERT INTO)|LOCK' |sed 's/INSERT INTO /INSERT IGNORE INTO /'
# 导入SQL文件
mysql db_name < db_name_dump.sql
5.3.9. 临时启用性能调优
set profiling=on;
show profiles;
show profile for query query_id;
5.3.10. 查看全局变量
# 开启SQL日志
#
set global general_log = ON;
set gloabl general_log_file = /var/lib/mysql/hostname.log;
show global variables like '%general_log%';
# 开启慢查询
set global long_query_time = 10;
set global slow_query_log = ON;
set gloabl slow_query_log_file = /var/lib/mysql/hostname-slow.log;
show global variables like '%_query_%';
[mysqld]
general_log = ON
general_log_file = /var/lib/mysql/general.log
long-query-time = 10
slow_query_log = ON
slow_query_log_file = /var/lib/mysql/slow.log
5.4. 索引
5.4.1. 查看索引
SHOW INDEX FROM TBLNAME;
5.4.2. 创建索引
CREATE INDEX ev_info_createBy_IDX USING BTREE ON ttd.ev_info (createBy);
5.4.3. 删除索引
DROP INDEX index_name ON talbe_name;
6. ArchLinux
6.1. ArchLinux 安装
|
Arch Linux安装可以在启动镜像之后,通过SSH连接复制以下命令字符完成安装。步骤如下:
如果是安装中途连接SSH的,请注意适时执行 |
6.1.1. 建立硬盘分区

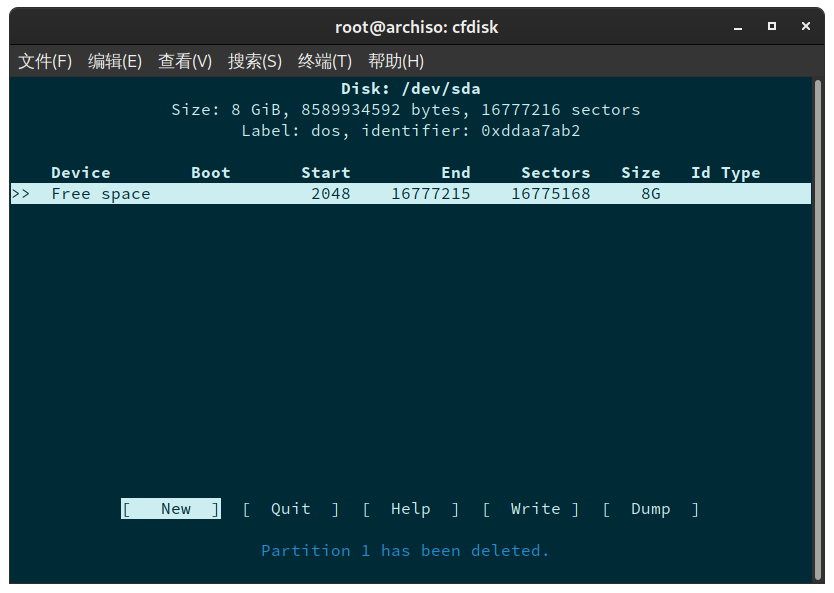

cfdisk
| 按照本教程安装ArchLinux ,硬盘至少需要10G以上。 |
如果使用UEFI启动方式,需要新建 /dev/sda1 容量200M,并且设置为启动分区,其余分区编号顺延。
|

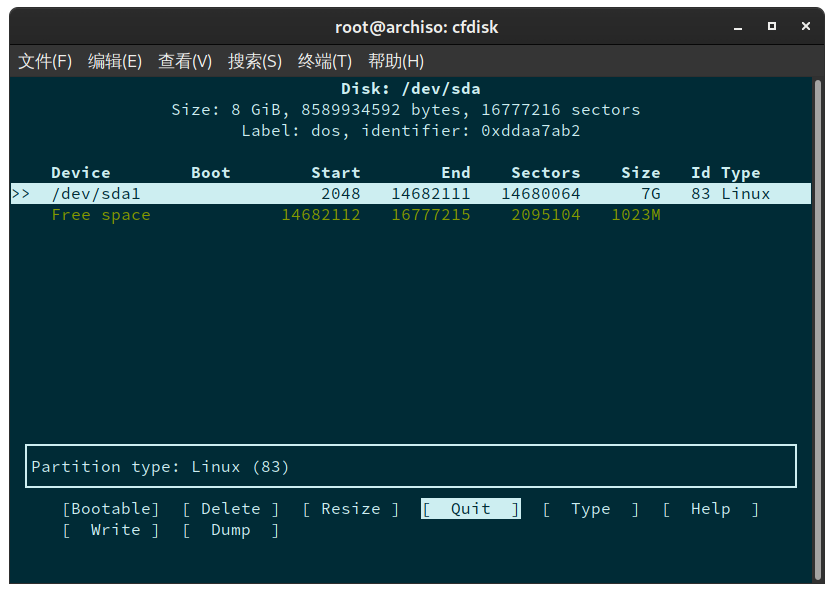

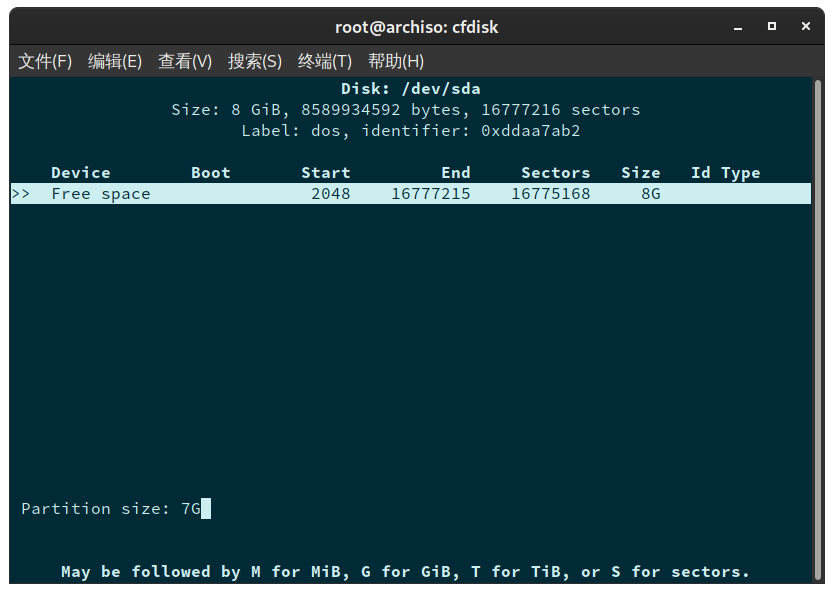

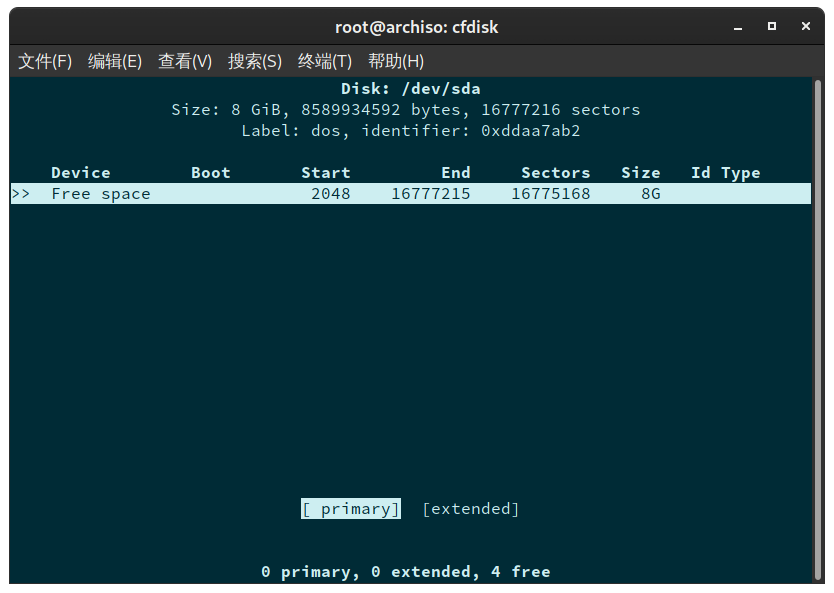

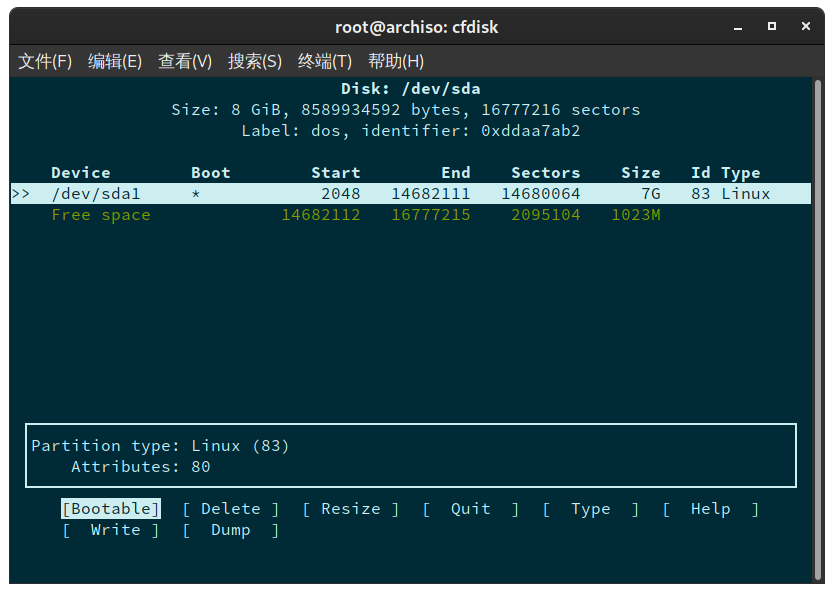

创建主分区,此处以7G为例,实际情况至少10G:

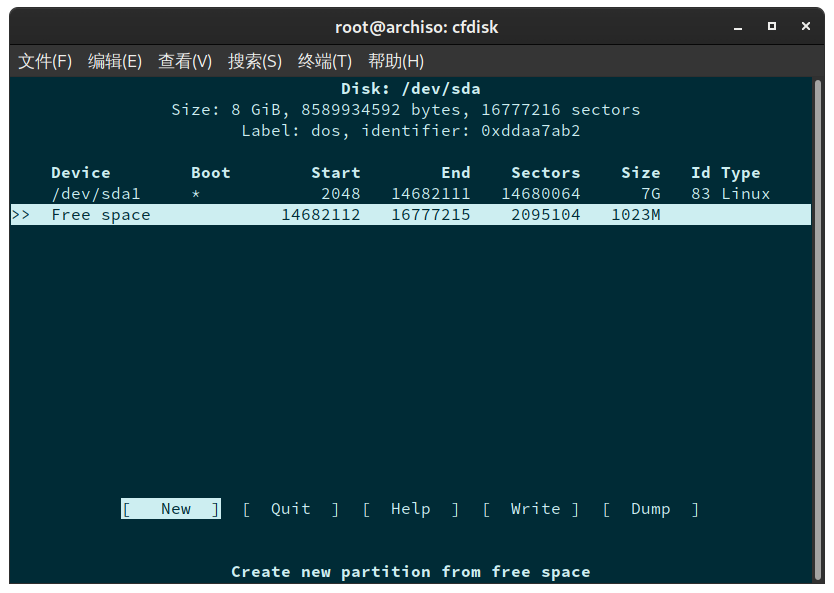

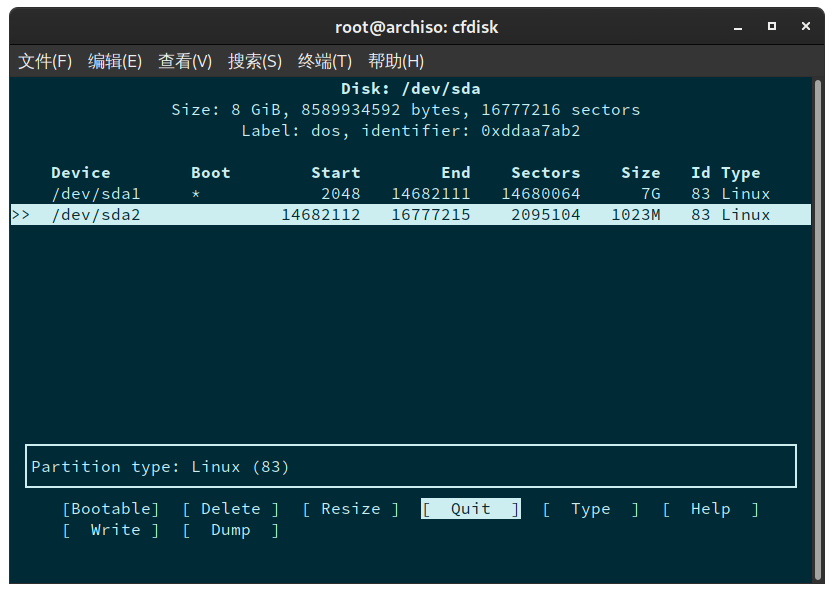

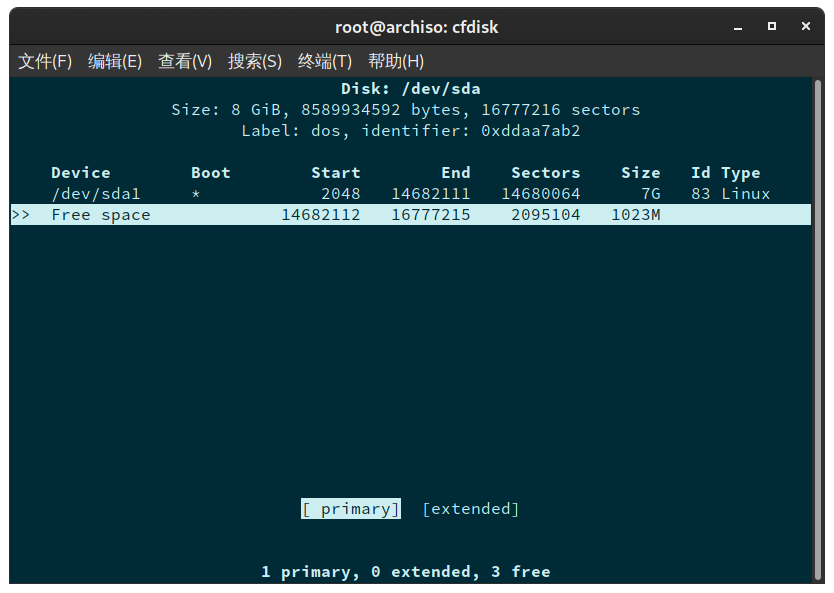

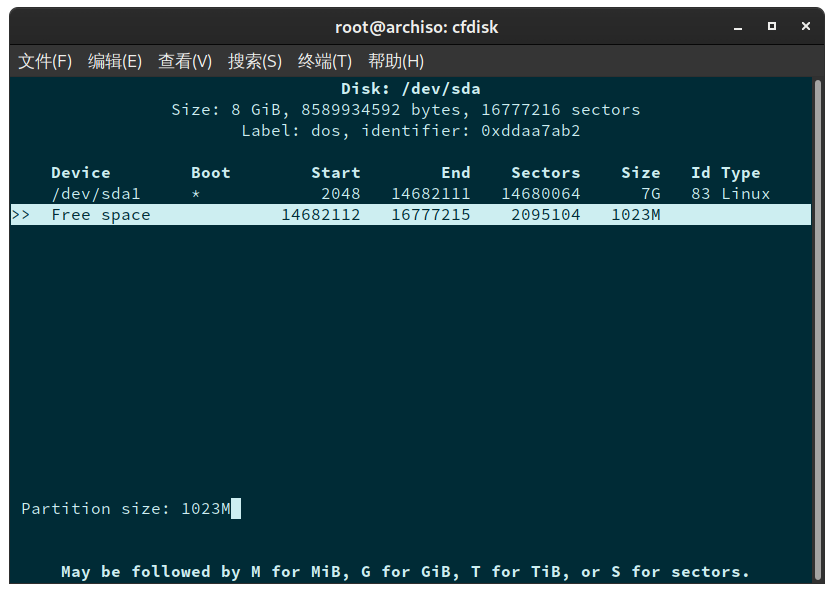

创建交换分区,容量1G:

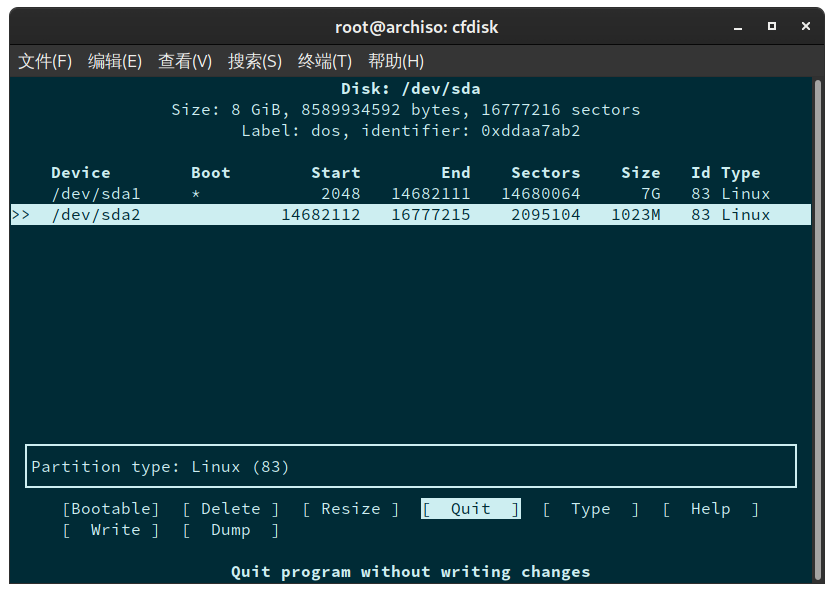

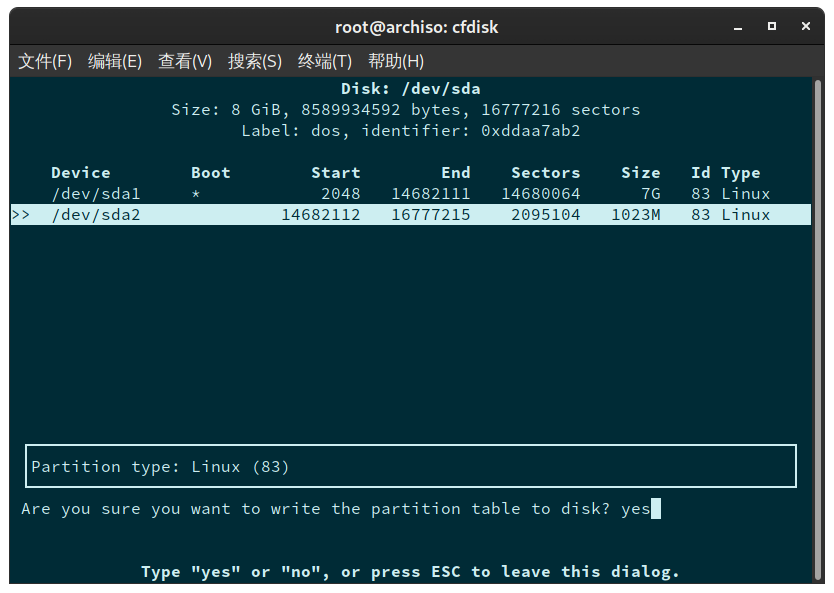

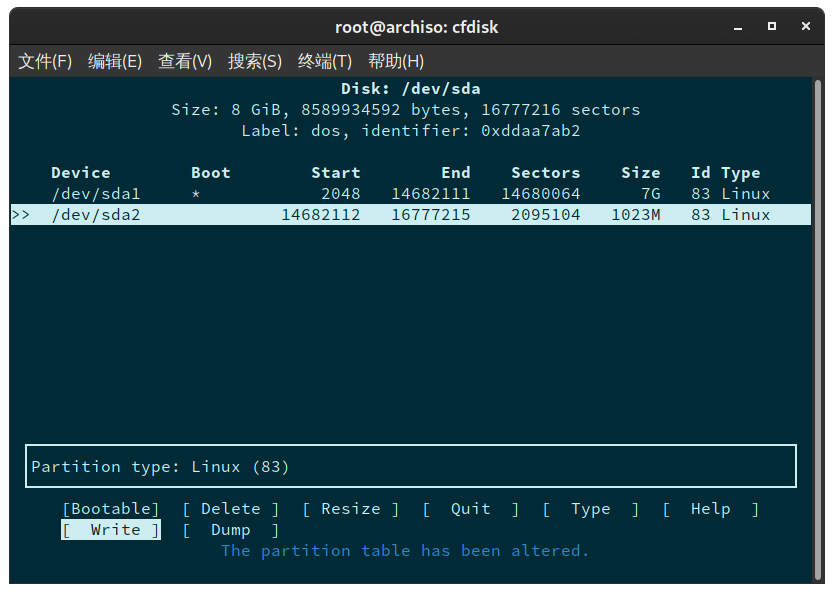

保存修改并退出:
6.1.2. 格式化分区
格式化主分区:
mkfs.ext4 /dev/sda1
格式化虚拟分区:
mkswap /dev/sda2
swapon /dev/sda2
|
如果使用UEFI启动方式,并且
|
6.1.3. 挂载分区
mount /dev/sda1 /mnt
|
如果使用UEFI启动方式,并且
|
6.1.4. 连接WIFI
执行 iwctl 命令,进入iwd交互Shell:
# 获得WIFI网卡名称 wlan0 和 WIFI硬件名称 phy0
device list
device wlan0 set-property Powered on
adapter phy0 set-property Powered on
# 不会有任何屏幕输出
station wlan0 scan
# 列表WIFI清单
station wlan0 get-networks
# 会提示输入连接密码,其中 GEEKCAMP_5G 是选择的WIFI SSID
station wlan0 connect GEEKCAMP_5G
# 查看WIFI连接
station wlan0 show
# 退出iwd Shell
exit
测试网络连接:
ping qq.com
6.1.5. 设置国内镜像源
cat << EOF > /etc/pacman.d/mirrorlist
Server = https://mirrors.163.com/archlinux/\$repo/os/\$arch
EOF
6.1.6. 安装基础包
pacstrap /mnt base
6.1.7. 开机挂载分区
genfstab -U /mnt >> /mnt/etc/fstab
编辑 /mnt/etc/fstab 文件,确认分区信息无误。
6.1.8. 切换到全新 Arch Linux 系统
arch-chroot /mnt
6.1.9. 设置国内镜像源
cat << EOF > /etc/pacman.d/mirrorlist
Server = https://mirrors.163.com/archlinux/\$repo/os/\$arch
EOF
6.1.10. 安装vim
pacman -S vim
6.1.11. 设置时区
ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
6.1.12. 本地化语言支持
启用语言参数:
echo "en_US.UTF-8 UTF-8" >> /etc/locale.gen
echo "zh_CN.GB18030 GB18030" >> /etc/locale.gen
echo "zh_CN.GBK GBK" >> /etc/locale.gen
echo "zh_CN.UTF-8 UTF-8" >> /etc/locale.gen
echo "zh_CN GB2312" >> /etc/locale.gen
生成locale:
locale-gen
设置系统默认语言:
echo "LANG=en_US.UTF-8" > /etc/locale.conf
全局设置为英文,tty控制台不会乱码,新用户默认目录也是英文名称,方便使用。
新用户登录桌面后,自行找到控制面板中的 “Region and Language”(区域和语言)设置为 汉语 即可。设置后,如果提示更新目录名称为中文,请选择 “保留旧的文件名”,除非你想在终端经常打中文目录名称(累死你~~)。
6.1.13. 键盘布局
echo "KEYMAP=us" > /etc/vconsole.conf
6.1.14. 设置主机名
echo 'archlinux' > /etc/hostname
6.1.15. 本地网络配置
echo '127.0.0.1 localhost' > /etc/hosts
# 添加主机名对应的设置
echo '127.0.0.1 archlinux' >> /etc/hosts
6.1.16. 设置root密码
passwd
6.1.17. 创建用户
新增用户:
useradd -m 你的用户名
设置用户密码:
passwd 你的用户名
添加到sudo列表:
pacman -S sudo
echo '你的用户名 ALL=(ALL:ALL) NOPASSWD: ALL' >> /etc/sudoers
6.1.18. 安装Grub引导
Windows+Linux双引导
pacman -S grub os-prober ntfs-3g
sed -i 's/#GRUB_DISABLE_OS_PROBER=false/GRUB_DISABLE_OS_PROBER=false/g' /etc/default/grub
下次进入GNOME桌面后,执行 grub-mkconfig -o … 命令就会自动将Windows系统加入到Grub启动菜单
使用传统方式启动的BIOS
pacman -S grub
grub-install --target=i386-pc --recheck /dev/sda
pacman -S linux linux-headers linux-lts linux-lts-headers
grub-mkconfig -o /boot/grub/grub.cfg
使用UEFI启动的BIOS
对于使用 UEFI 启动的用户,请用以下方式安装和设置Grub引导:
pacman -S grub efibootmgr
grub-install --target=x86_64-efi --efi-directory=/boot/efi --bootloader-id=arch
pacman -S linux linux-headers linux-lts linux-lts-headers
grub-mkconfig -o /boot/grub/grub.cfg
6.1.19. 安装桌面
# 更新软件包索引
pacman -Syy
# 桌面环境
pacman -S gnome vim networkmanager
# WIFI驱动
pacman -S linux-firmware
# 拼音输入法
pacman -S ibus-sunpinyin sunpinyin sunpinyin-data
# 显卡驱动
pacman -S xf86-video-fbdev xf86-video-intel xf86-video-vesa xf86-video-ati xf86-video-amdgpu
# 汉字字体
pacman -S wqy-microhei wqy-zenhei
# 开机启动
systemctl enable NetworkManager
systemctl enable gdm
6.1.20. 重启
exit
reboot
安装完成,重启进入Arch Linux系统。
6.1.21. 设置pacman
增加 Arch Linux 中文社区仓库 的腾讯镜像服务器:
# 进入root
sudo -i
cat << EOF >> /etc/pacman.conf
[archlinuxcn]
Server = https://mirrors.cloud.tencent.com/archlinuxcn/\$arch
SigLevel = Optional TrustAll
EOF
exit
Arch Linux 中文社区仓库 包含深度QQ、深度TIM、WPS、Google Chrome浏览器、WPS等等不开源的软件。
6.1.22. 安装常用软件
在桌面打开终端,复制以下命令一次性安装:
sudo pacman -Syy
sudo pacman -S archlinuxcn-keyring
sudo pacman -S gedit vim screen thunderbird thunderbird-i18n-zh-cn openssh bash-completion cmake git curl wget filezilla gcc make mlocate nginx ntp p7zip rsync virtualbox virtualbox-guest-iso virtualbox-host-dkms file-roller parted sshpass rdesktop qt5-base qt6-base fakeroot yay openssl wireshark-qt base-devel code gnome-terminal os-prober
yay -S google-chrome
6.1.23. 系统设置
在桌面打开终端,执行以下命令:
# GNOME 桌面设置
gsettings set org.gnome.nautilus.preferences always-use-location-entry true
gsettings set org.gnome.nautilus.preferences default-sort-order name
gsettings set org.gtk.Settings.FileChooser sort-directories-first true
gsettings set org.gnome.desktop.interface clock-show-date true
gsettings set org.gnome.desktop.interface clock-show-seconds true
# Ctrl+Shift+Alt+R 录像时,30秒后自动结束。设置为0,不限制
gsettings set org.gnome.settings-daemon.plugins.media-keys max-screencast-length 0
# 禁用最近文件访问记录
gsettings set org.gnome.desktop.privacy remember-recent-files false
# virtualbox 设置
sudo gpasswd -a root vboxusers
sudo gpasswd -a $USER vboxusers
# wireshark 设置
sudo gpasswd -a root wireshark
sudo gpasswd -a $USER wireshark
# 系统日志
sudo gpasswd -a $USER adm
sudo gpasswd -a $USER systemd-journal
sudo gpasswd -a $USER wheel
# docker
#sudo gpasswd -a $USER docker
sudo grpunconv
# 开机启动
sudo systemctl enable systemd-timesyncd
sudo systemctl start systemd-timesyncd
sudo systemctl enable sshd
sudo systemctl mask tmp.mount
默认不能使用 root 用户 SSH 连接 Arch Linux。请修改 /etc/ssh/sshd_config 中的 PermitRootLogin 为 yes。
|
gedit 编辑器设置
安装设置编辑器:
sudo pacman -S dconf-editor
然后,在终端执行 dconf-editor 命令后,依次找到菜单 org.gnome.gedit.preferences.editor → scheme → cobalt,可以设置编辑器背景。
org.gnome.gedit.preferences.editor 中有许多其它设置,根据自己习惯自行设置。
6.1.24. FAQ
E495
-
禁用安全启动;
-
进入BIOS,设置:
-
"Startup"→"UEFI/Legacy Boot"为"UEFI Only"; -
"Startup"→"UEFI/Legacy Boot"→"CMS Support"为"yes";
-
如果不设置,安装Linux后显卡硬件不会被识别。在日志文件 "Xorg.0.log" 中会出现 "(EE) open /dev/dri/card0: No such file or directory" 的错误,无法进入桌面。
A485显卡驱动无法加载,导致桌面问题
-
禁用安全启动;
-
启用
amdgpu驱动;
sudo -i
cat << EOF > /etc/modprobe.d/amdgpu.conf
options amdgpu si_support=1
options amdgpu cik_support=1
EOF
cat << EOF > /etc/modprobe.d/radeon.conf
options radeon si_support=0
options radeon cik_support=0
EOF
mkinitcpio -P
重启后,验证:
lspci -k | grep -A 3 -E "(VGA|3D)"
06:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Raven Ridge [Radeon Vega Series / Radeon Vega Mobile Series] (rev d1) Subsystem: Lenovo Raven Ridge [Radeon Vega Series / Radeon Vega Mobile Series] Kernel driver in use: amdgpu Kernel modules: amdgpu
其中,Kernel driver in use: amdgpu 表示设置已经生效。
6.2. pacman
6.2.1. 用法
安装包
安装指定的包
安装单个包或多个包以及包依赖,执行命令:
pacman -S package_name1 package_name2 ...
有时会出现一个包有多个版本,来自不同的仓库(比如,extra 和 testing)。
以下命令会安装 extra 仓库的包,仓库名称放在包名之前:
pacman -S extra/package_name
安装包组
安装包组下的所有包:
pacman -S gnome
查看 gnome 组下的包:
pacman -Sg gnome
移除包
移除包,但不移除相关依赖包:
pacman -R package_name
移除包及其依赖包:
pacman -Rs package_name
升级包
有时仅仅需要更新软件索引包,使用 Syy:
pacman -Syy
pacman 能够使用一个命令升级系统上的所有包。根据系统上次更新时间不同,升级的时间也有所不同。
下面这个命令会同步仓库数据库并更新包。
pacman -Syu
查询包数据库
pacman 使用 -Q 参数查询本地包数据库,使用 -S 参数同步远端数据库,使用 -F 参数同步文件列表数据库。
使用 pacman -Q --help,pacman -S --help,pacman -F --help 命令可以查看更多信息。
pacman 可以搜索数据库中的包信息,包括包名称和描述:
pacman -Ss string1 string2 ...
搜索已经安装的包:
pacman -Qs string1 string2 ...
根据文件名搜索远端仓库:
pacman -F string1 string2 ...
显示指定包的概要信息:
pacman -Si package_name
显示已经安装的包信息:
pacman -Qi package_name
打印本地包的文件列表:
pacman -Ql package_name
从远端仓库获取包的文件列表:
pacman -Fl package_name
检查本地包文件是否存在:
pacman -Qk package_name
传递两个 k 参数将会执行更多检查。
|
查询文件所属本地包:
pacman -Qo /path/to/file_name
从远程仓库查询文件所属包:
pacman -F /path/to/file_name
清除包缓存
pacman -Scc
其它命令
仅下载包:
pacman -Sw package_name
从本地文件系统安装包:
pacman -U /path/to/package/package_name-version.pkg.tar.xz
Search for a package that contains a specific file
同步文件数据库:
pacman -Fy
搜索包里面的一个文件,比如:
$ pacman -F pacman
core/pacman 5.2.1-1 (base base-devel) [installed]
usr/bin/pacman
usr/share/bash-completion/completions/pacman
extra/xscreensaver 5.43-1
usr/lib/xscreensaver/pacman
更多高级用法,请安装 pkgfile。
6.2.2. Troubleshooting
Signature from "User <email@example.org>" is unknown trust, installation failed
可选方案:
- 方法一
-
更新已有密钥:
pacman-key --refresh-keys - 方法二
-
手动升级
archlinux-keyring包:pacman -Sy archlinux-keyring && pacman -Su - 方法三
-
重置所有密钥
-
删除
/etc/pacman.d/gnupg文件夹 -
pacman-key --init -
pacman-key --populate archlinux
-
6.3. Wireshark
6.3.1. 以普通用户身份抓包
默认情况下,必须使用 sudo -i 等命令切换到 root 用户才能获取到本地接口列表,然后抓包。
如需要使用普通用户抓包,必须将用户加入 wireshark 群组:
gpasswd -a $USERNAME wireshark
重启后生效。
6.4. Sudo
6.4.1. sudo command doesn’t source ~/.bashrc
sudo sh -c 'echo $PATH' or sudo bash -c 'echo $PATH' doesn’t invoke an interactive shell, so .bashrc is not involved.
sudo su; echo $PATH runs an interactive instance of root’s shell. If that’s bash, then ~root/.bashrc is loaded. This snippet executes echo $PATH once this interactive shell terminates, so whatever happens in the interactive shell has no influence on what the snippet prints at the end. But if you type echo $PATH at the prompt of the interactive shell started by sudo su, you will see the value set by ~root/.bashrc.
Since .bashrc is invoked in each interactive shell, not by login shells (not even by interactive login shells, which is a design defect in bash), it’s the wrong place to define environment variables. Use .bashrc for interactive bash settings such as key bindings, aliases and completion settings. Set environment variables in files that are loaded when you log in: ~/.pam_environment or ~/.profile.
So set PATH in .profile instead of .bashrc, and either run a login shell with sudo -i 'echo $PATH', or explicitly source .profile with sudo sh -c '. ~/.profile; echo $PATH'.
6.5. 降级包
6.5.1. MySQL 启动失败
-
sudo systemctl status mysqld无具体错误 -
journalctl -xe中没有任何更加详细的MySQL错误信息,仅仅提示启动失败
通过分析发现,可能是 MySQL 的依赖出问题导致。使用 ldd /usr/bin/mysqld 查看确认。
$ ldd /usr/bin/mysqld linux-vdso.so.1 (0x00007fff4dd95000) libjemalloc.so.2 => /usr/lib/libjemalloc.so.2 (0x00007fd61d6d0000) libpthread.so.0 => /usr/lib/libpthread.so.0 (0x00007fd61d6ae000) libicuuc.so.64 => /usr/lib/libicuuc.so.64 (0x00007fd61d4d6000) libicui18n.so.64 => /usr/lib/libicui18n.so.64 (0x00007fd61d1e1000) libevent_core-2.1.so.7 => /usr/lib/libevent_core-2.1.so.7 (0x00007fd61d1a8000) libprotobuf-lite.so.18 => not found librt.so.1 => /usr/lib/librt.so.1 (0x00007fd61d0fe000)
从以上可以看到缺少 libprotobuf-lite.so.18 库文件。
查询库文件所属包
$ pkgfile libprotobuf-lite.so extra/protobuf
或者
$ sudo pacman -Fy libprotobuf-lite.so
:: 正在同步软件包数据库...
core 已经是最新版本
extra 已经是最新版本
community 已经是最新版本
multilib 已经是最新版本
archlinuxcn 已经是最新版本
extra/protobuf 3.10.0-1 [已安装: 3.10.0-1]
usr/lib/libprotobuf-lite.so
查询库文件最新版本号
$ sudo pacman -Ql protobuf|grep libprotobuf-lite.so protobuf /usr/lib/libprotobuf-lite.so protobuf /usr/lib/libprotobuf-lite.so.21 protobuf /usr/lib/libprotobuf-lite.so.21.0.0
或者
$ ldconfig -p|grep libprotobuf-lite.so libprotobuf-lite.so.21 (libc6,x86-64) => /usr/lib/libprotobuf-lite.so.21 libprotobuf-lite.so (libc6,x86-64) => /usr/lib/libprotobuf-lite.so
至此,可以确认是由于 protobuf 包更新导致 MySQL 依赖出现问题。紧急修复的方法只有先降级 protobuf 包。
6.5.2. 降级 protobuf 包
rm -f protobuf-3.7.0-1-x86_64.pkg.tar.xz
wget https://archive.archlinux.org/packages/p/protobuf/protobuf-3.7.0-1-x86_64.pkg.tar.xz
sudo pacman -U protobuf-3.7.0-1-x86_64.pkg.tar.xz
MySQL 依赖$ ldconfig -p|grep libprotobuf-lite.so libprotobuf-lite.so.18 (libc6,x86-64) => /usr/lib/libprotobuf-lite.so.18 libprotobuf-lite.so (libc6,x86-64) => /usr/lib/libprotobuf-lite.so $ ldd /usr/bin/mysqld|grep libprotobuf-lite.so libprotobuf-lite.so.18 => /usr/lib/libprotobuf-lite.so.18 (0x00007f209f7b2000)
成功搞定。
|
没有更快确认 下载最近几个版本的 |
6.5.3. 忽略 protobuf 包的后续更新
在 /etc/pacman.conf 搜索 IgnorePkg 修改为:
IgnorePkg = protobuf
$ sudo pacman -Syu [sudo] mk 的密码: :: 正在同步软件包数据库... core 已经是最新版本 extra 已经是最新版本 community 已经是最新版本 multilib 已经是最新版本 archlinuxcn 已经是最新版本 :: 正在进行全面系统更新... 警告:protobuf:忽略软件包升级 (3.7.0-1 => 3.10.0-1) 今日无事可做
6.6. 视频缩略图
6.6.1. 问题
Nautilus 窗口视频没有缩略图。
6.6.2. 解决方法
rm -rf ~/.cache/thumbnails/fail
sudo pacman -S gst-libav
最后,按 Ctrl-R 刷新 Nautilus 窗口。
6.7. 打印机
6.7.1. 安装配置
systemctl enable cups-browsed
systemctl enable org.cups.cupsd
# 将当前用户加入打印机管理员组,否则无法添加打印机提示 “已禁止”
sed -i "s/^SystemGroup sys root wheel$/SystemGroup sys root wheel $USER/" /etc/cups/cups-files.conf
systemctl restart cups-browsed
systemctl restart org.cups.cupsd
6.7.2. 打印机驱动
# 安装打印机驱动
pacman -S hplip
# 查看支持的型号
pacman -Ql hplip
6.7.3. 添加打印机
惠普打印机:惠普工具
运行:
hp-toolbox
然后,单击 Setup Device 安装打印机驱动。
Web
访问 http://localhost:631/ ,单击 "Administration" → "Printer" → "Add Printer" 添加打印机。
如果提示输入帐号密码,请填写当前登录用户的帐号和密码。
7. XXL-JOB
7.1. 安装配置
7.1.1. 安装依赖
Git
yum install -y git
Maven && Java 8
|
|
安装 Maven
yum install -y maven
查看 Maven 版本
[root@geekcamp ~]# mvn --version Apache Maven 3.0.5 (Red Hat 3.0.5-17) Maven home: /usr/share/maven Java version: 1.8.0_232, vendor: Oracle Corporation Java home: /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre Default locale: en_US, platform encoding: UTF-8 OS name: "linux", version: "3.10.0-1062.el7.x86_64", arch: "amd64", family: "unix"
查看 Java 版本
[root@geekcamp ~]# java -version openjdk version "1.8.0_232" OpenJDK Runtime Environment (build 1.8.0_232-b09) OpenJDK 64-Bit Server VM (build 25.232-b09, mixed mode)
设置 Maven 全局镜像源
mkdir ~/.m2
cat << EOF > ~/.m2/settings.xml
<settings>
<mirrors>
<mirror>
<id>aliyun</id>
<name>Aliyun Central</name>
<url>http://maven.aliyun.com/nexus/content/groups/public/</url>
<mirrorOf>central</mirrorOf>
</mirror>
</mirrors>
</settings>
EOF
Java 11(可选)
安装 Java 11:
yum install -y java-11-openjdk java-11-openjdk-devel java-11-openjdk-headless
查看当前默认 Java 版本:
[root@geekcamp ~]# java -version openjdk version "1.8.0_232" OpenJDK Runtime Environment (build 1.8.0_232-b09) OpenJDK 64-Bit Server VM (build 25.232-b09, mixed mode) [root@geekcamp ~]# alternatives --display java java - status is auto. link currently points to /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre/bin/java /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre/bin/java - family java-1.8.0-openjdk.x86_64 priority 1800232 slave jre: /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre ...... Current `best' version is /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.232.b09-0.el7_7.x86_64/jre/bin/java.
设置Java11为默认版本:
alternatives --set java `ls /usr/lib/jvm/java-11-openjdk-*/bin/java`
alternatives --set jre_openjdk `ls -d /usr/lib/jvm/java-11-openjdk-*`
alternatives --set java_sdk_openjdk `ls -d /usr/lib/jvm/java-11-openjdk-*`
查看当前默认 Java 版本:
[root@geekcamp ~]# java -version openjdk version "11.0.6" 2020-01-14 LTS OpenJDK Runtime Environment 18.9 (build 11.0.6+10-LTS) OpenJDK 64-Bit Server VM 18.9 (build 11.0.6+10-LTS, mixed mode, sharing)
MySQL
安装 MySQL:
yum install -y mariadb-server mariadb
设置开机启动:
systemctl enable mariadb
启动 MySQL 服务:
systemctl start mariadb
设置密码:
mysqladmin -uroot password "geek"
默认 MySQL 初始化并启动后,可以使用空密码登录。
|
测试 MySQL:
[root@geekcamp ~]# mysql -uroot -pgeek -e "show databases;" +--------------------+ | Database | +--------------------+ | information_schema | | mysql | | performance_schema | | test | +--------------------+
7.1.2. XXL-JOB 安装
构建:
[ ! -d "~/downloads/" ] && mkdir ~/downloads/
cd ~/downloads/
git clone https://github.com/xuxueli/xxl-job.git
cd xxl-job
mvn -T 4 package
安装:
[ ! -d "/data/xxl-job/admin" ] && mkdir -p /data/xxl-job/admin
[ ! -d "/data/xxl-job/executor" ] && mkdir -p /data/xxl-job/executor
[ ! -d "/data/applogs" ] && mkdir -p /data/applogs
echo y | cp xxl-job-admin/target/xxl-job-admin-2.2.0-SNAPSHOT.jar /data/xxl-job/admin
echo y | cp xxl-job-admin/src/main/resources/application.properties /data/xxl-job/admin
echo y | cp xxl-job-executor-samples/xxl-job-executor-sample-springboot/target/xxl-job-executor-sample-springboot-2.2.0-SNAPSHOT.jar /data/xxl-job/executor
echo y | cp xxl-job-executor-samples/xxl-job-executor-sample-springboot/src/main/resources/application.properties /data/xxl-job/executor
确认安装:
[root@geekcamp xxl-job]# find /data/xxl-job/*
/data/xxl-job/admin
/data/xxl-job/admin/xxl-job-admin-2.2.0-SNAPSHOT.jar
/data/xxl-job/admin/application.properties
/data/xxl-job/executor
/data/xxl-job/executor/xxl-job-executor-sample-springboot-2.2.0-SNAPSHOT.jar
/data/xxl-job/executor/application.properties
7.1.3. XXL-JOB 运行前
XXL-JOB 服务端
MySQL配置
创建 xxl_job 数据库:
mysql -uroot -pgeek -e "CREATE DATABASE xxl_job DEFAULT CHARACTER SET utf8mb4 DEFAULT COLLATE utf8mb4_unicode_ci;"
创建 xxl_job 用户:
mysql -uroot -pgeek -e "CREATE USER 'xxl_job'@'localhost' IDENTIFIED BY 'geek';"
mysql -uroot -pgeek -e "GRANT ALL ON xxl_job.* TO 'xxl_job'@'localhost' WITH GRANT OPTION;"
导入 SQL 文件:
mysql -uxxl_job -pgeek xxl_job < doc/db/tables_xxl_job.sql
查看 xxl_job 表:
[root@geekcamp xxl-job]# mysql -uxxl_job -pgeek xxl_job -e "show tables;" +--------------------+ | Tables_in_xxl_job | +--------------------+ | xxl_job_group | | xxl_job_info | | xxl_job_lock | | xxl_job_log | | xxl_job_log_report | | xxl_job_logglue | | xxl_job_registry | | xxl_job_user | +--------------------+
设置配置文件
sed -i '26s/spring.datasource.username=root/spring.datasource.username=xxl_job/' /data/xxl-job/admin/application.properties
sed -i '27s/spring.datasource.password=root_pwd/spring.datasource.password=geek/' /data/xxl-job/admin/application.properties
创建系统用户
useradd --user-group --no-create-home --shell /sbin/nologin --comment "XXL-JOB" xxl_job
chown -R xxl_job:xxl_job /data/applogs /data/xxl-job
增加 systemd 文件
cat << EOF > /usr/lib/systemd/system/xxl_job_admin.service
[Unit]
Description=XXL-JOB Admin Service
After=network.target remote-fs.target nss-lookup.target
[Service]
Type=simple
Environment="PORT=8080"
Environment="CONFIG_FILE=/data/xxl-job/admin/application.properties"
Environment="JAR_FILE=/data/xxl-job/admin/xxl-job-admin-2.2.0-SNAPSHOT.jar"
User=xxl_job
Group=xxl_job
WorkingDirectory=/data/xxl-job/admin
ExecStart=/usr/bin/java -Dserver.port=\${PORT} -Dspring.config.location=\${CONFIG_FILE} -jar \${JAR_FILE}
SuccessExitStatus=143
StandardOutput=null
StandardError=journal
[Install]
WantedBy=multi-user.target
EOF
XXL-JOB 客户端
创建目录
[ ! -d "/data/xxl-job/executor" ] && mkdir -p /data/xxl-job/executor
[ ! -d "/data/applogs" ] && mkdir -p /data/applogs
设置配置文件
sed -i '9s#xxl.job.admin.addresses=http://127.0.0.1:8080/xxl-job-admin#xxl.job.admin.addresses=http://192.168.2.11:8080/xxl-job-admin#' \
/data/xxl-job/executor/application.properties
appname=xxl-job-executor-s01
sed -i "12s/xxl.job.executor.appname=xxl-job-executor-sample/xxl.job.executor.appname=${appname}/" \
/data/xxl-job/executor/application.properties
|
创建系统用户
useradd --user-group --no-create-home --shell /sbin/nologin --comment "XXL-JOB" xxl_job
chown -R xxl_job:xxl_job /data/applogs /data/xxl-job/executor
增加 systemd 文件
cat << EOF > /usr/lib/systemd/system/xxl_job_executor.service
[Unit]
Description=XXL-JOB Executor Service
After=network.target remote-fs.target nss-lookup.target
[Service]
Type=simple
Environment="PORT=8081"
Environment="CONFIG_FILE=/data/xxl-job/executor/application.properties"
Environment="JAR_FILE=/data/xxl-job/executor/xxl-job-executor-sample-springboot-2.2.0-SNAPSHOT.jar"
User=xxl_job
Group=xxl_job
WorkingDirectory=/data/xxl-job/executor
ExecStart=/usr/bin/java -Dserver.port=\${PORT} -Dspring.config.location=\${CONFIG_FILE} -jar \${JAR_FILE}
SuccessExitStatus=143
StandardOutput=null
StandardError=journal
[Install]
WantedBy=multi-user.target
EOF
7.1.4. 启动 XXL-JOB 服务端
systemctl enable xxl_job_admin
systemctl start xxl_job_admin
确认运行情况:
[root@geekcamp xxl-job]# systemctl status xxl_job_admin
● xxl_job.service - XXL-JOB Service
Loaded: loaded (/usr/lib/systemd/system/xxl_job.service; enabled; vendor preset: disabled)
Active: active (running) since Thu 2020-01-16 13:56:05 CST; 1s ago
Main PID: 3015 (java)
CGroup: /system.slice/xxl_job.service
└─3015 /usr/bin/java -Dserver.port=8080 -Dspring.config.location=/data/xxl-job/application.properties -jar /data/xxl-job/xxl-job-admin-2.2.0-SNA...
Jan 16 13:56:05 geekcamp systemd[1]: Started XXL-JOB Service.
[root@geekcamp xxl-job]# ss -antpl|grep 8080
LISTEN 0 100 [::]:8080 [::]:* users:(("java",pid=2288,fd=21))
最后,浏览器访问 http://localhost:8080/xxl-job-admin
|
XXL-JOB默认帐号:admin |
7.1.5. 启动 XXL-JOB 客户端
systemctl enable xxl_job_executor
systemctl start xxl_job_executor
确认运行情况:
[root@localhost admin]# systemctl status xxl_job_executor
● xxl_job_client.service - XXL-JOB Client
Loaded: loaded (/usr/lib/systemd/system/xxl_job_client.service; enabled; vendor preset: disabled)
Active: active (running) since Thu 2020-01-16 18:49:43 CST; 4s ago
Main PID: 2876 (java)
CGroup: /system.slice/xxl_job_client.service
└─2876 /usr/bin/java -Dserver.port=8081 -Dspring.config.location=/data/xxl-job/executor/application.properties -jar /data/xxl-job/executor/xxl-j...
Jan 16 18:49:43 localhost.localdomain systemd[1]: Started XXL-JOB Client.
[root@localhost admin]# ss -antpl|grep 8081
LISTEN 0 100 [::]:8081 [::]:* users:(("java",pid=4679,fd=11))
7.1.6. 工作状态确认
访问 http://192.168.2.11:8080/xxl-job-admin/jobgroup 并登录,确认结果与下图一致:
8. LVM
8.1. 增加硬盘
pvcreate /dev/vdb
vgcreate vg_data /dev/vdb
lvcreate -l 100%free -n data vg_data
mkfs.ext4 /dev/vg_data/data
mkdir /data
echo '/dev/mapper/vg_data-data /data ext4 defaults 1 1' >> /etc/fstab
mount -a
df -h
ls /data
8.2. 在线扩容
8.2.1. 创建分区
查看硬盘分区
fdisk -l /dev/vda
Disk /dev/vda: 100 GiB, 107374182400 bytes, 209715200 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x9b35f2fd
Device Boot Start End Sectors Size Id Type
/dev/vda1 * 2048 62912511 62910464 30G 8e Linux LVM
创建分区
fdisk /dev/vda
Welcome to fdisk (util-linux 2.31.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Command (m for help): n
Partition type
p primary (1 primary, 0 extended, 3 free)
e extended (container for logical partitions)
Select (default p):
Using default response p.
Partition number (2-4, default 2):
First sector (62912512-209715199, default 62912512):
Last sector, +sectors or +size{K,M,G,T,P} (62912512-209715199, default 209715199):
Created a new partition 2 of type 'Linux' and of size 70 GiB.
Command (m for help): w
The partition table has been altered.
Syncing disks.
确认分区
fdisk -l /dev/vda
Disk /dev/vda: 100 GiB, 107374182400 bytes, 209715200 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x9b35f2fd
Device Boot Start End Sectors Size Id Type
/dev/vda1 * 2048 62912511 62910464 30G 8e Linux LVM
/dev/vda2 62912512 209715199 146802688 70G 83 Linux
8.2.2. 创建物理卷
创建物理卷
pvcreate /dev/vda2
Physical volume "/dev/vda2" successfully created.
确认物理卷
pvs
PV VG Fmt Attr PSize PFree
/dev/vda1 geek-vg lvm2 a-- <30.00g 12.00m
/dev/vda2 lvm2 --- 70.00g 70.00g
8.2.3. 扩容卷组
查看卷组
vgs
VG #PV #LV #SN Attr VSize VFree
geek-vg 1 2 0 wz--n- <30.00g 12.00m
扩容卷组
vgextend geek-vg /dev/vda2
Volume group "geek-vg" successfully extended
确认卷组
vgs
VG #PV #LV #SN Attr VSize VFree
geek-vg 2 2 0 wz--n- <100.00g 70.01g
8.2.4. 扩容逻辑卷
查看逻辑卷
lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
root geek-vg -wi-ao---- 29.03g
swap_1 geek-vg -wi-ao---- 976.00m
扩容逻辑卷
lvextend -L+70G /dev/geek-vg/root
Size of logical volume geek-vg/root changed from 29.03 GiB (7432 extents) to 99.03 GiB (25352 extents).
Logical volume geek-vg/root successfully resized.
确认逻辑卷
lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
root geek-vg -wi-ao---- 99.03g
swap_1 geek-vg -wi-ao---- 976.00m
8.2.5. 在线扩容分区
查看文件系统
df -Th
Filesystem Type Size Used Avail Use% Mounted on
udev devtmpfs 464M 0 464M 0% /dev
tmpfs tmpfs 99M 664K 98M 1% /run
/dev/mapper/geek--vg-root ext4 29G 26G 1.2G 96% /
扩容文件系统
resize2fs /dev/mapper/geek--vg-root
resize2fs 1.44.1 (24-Mar-2018)
Filesystem at /dev/mapper/geek--vg-root is mounted on /; on-line resizing required
old_desc_blocks = 4, new_desc_blocks = 13
The filesystem on /dev/mapper/geek--vg-root is now 25960448 (4k) blocks long.
确认文件系统
df -Th
Filesystem Type Size Used Avail Use% Mounted on
udev devtmpfs 464M 0 464M 0% /dev
tmpfs tmpfs 99M 664K 98M 1% /run
/dev/mapper/geek--vg-root ext4 98G 26G 68G 28% /
|
如果是XFS分区,使用 |
9. Wireshark
9.1. 技巧汇总
9.1.1. 捕获过滤器
捕获过滤器 不是 应用显示过滤器
捕获过滤器是工作在抓包过程中,此时并未解包,所有数据都是二进制,不能进行高级过滤筛选。比如不支持 http.request.method == POST
- 捕获过滤器文档
字符串匹配-捕获过滤器生成器
捕获微信回调
POST /pay/callback 的TCP包,保存到 wechat.shark.pcaptshark -i em1 -n -f 'port 80 and tcp[((tcp[12:1] & 0xf0) >> 2):4] = 0x504f5354 && tcp[((tcp[12:1] & 0xf0) >> 2) + 4:4] = 0x202f7061 && tcp[((tcp[12:1] & 0xf0) >> 2) + 8:4] = 0x792f6361 && tcp[((tcp[12:1] & 0xf0) >> 2) + 12:4] = 0x6c6c6261 && tcp[((tcp[12:1] & 0xf0) >> 2) + 16:2] = 0x636b' -w wechat.shark.pcap
字符串匹配-捕获过滤器 生成器截图捕获过滤器常用表达式
-
Capture only traffic to or from IP address 172.18.5.4:
host 172.18.5.4 -
Capture traffic to or from a range of IP addresses:
net 192.168.0.0/24
or
net 192.168.0.0 mask 255.255.255.0 -
Capture traffic from a range of IP addresses:
src net 192.168.0.0/24
or
src net 192.168.0.0 mask 255.255.255.0 -
Capture traffic to a range of IP addresses:
dst net 192.168.0.0/24
or
dst net 192.168.0.0 mask 255.255.255.0 -
Capture only DNS (port 53) traffic:
port 53 -
Capture non-HTTP and non-SMTP traffic on your server (both are equivalent):
host www.example.com and not (port 80 or port 25)
host www.example.com and not port 80 and not port 25 -
Capture except all ARP and DNS traffic:
port not 53 and not arp -
Capture traffic within a range of ports
(tcp[0:2] > 1500 and tcp[0:2] < 1550) or (tcp[2:2] > 1500 and tcp[2:2] < 1550)
or
tcp portrange 1501-1549 -
Capture only Ethernet type EAPOL:
ether proto 0x888e -
Reject ethernet frames towards the Link Layer Discovery Protocol Multicast group:
not ether dst 01:80:c2:00:00:0e -
Capture only IPv4 traffic - the shortest filter, but sometimes very useful to get rid of lower layer protocols like ARP and STP:
ip -
Capture HTTP GET requests. This looks for the bytes 'G', 'E', 'T', and ' ' (hex values 47, 45, 54, and 20) just after the TCP header. "tcp[12:1] & 0xf0) >> 2" figures out the TCP header length.
port 80 and tcp[((tcp[12:1] & 0xf0) >> 2):4] = 0x47455420
更多使用方法,请参考 CaptureFilters
10. Vue.js
10.1. 第一个Vue.js应用
10.1.1. 环境依赖
-
Node.js
10.1.2. 创建应用
npm install --global vue-cli
echo "export PATH=\$PATH:~/.npm-global/bin/" >> ~/.bashrc
source ~/.bashrc
vue init webpack demo_project
10.1.3. 运行
npm run dev
10.1.4. 打包
npm run build
dist 目录中的文件就是构建的静态页面。
$ tree dist/
dist/
├── index.html
└── static
├── css
│ ├── app.30790115300ab27614ce176899523b62.css
│ └── app.30790115300ab27614ce176899523b62.css.map
└── js
├── app.2b6e1782b7cdd8e0b86c.js
├── app.2b6e1782b7cdd8e0b86c.js.map
├── manifest.2ae2e69a05c33dfc65f8.js
├── manifest.2ae2e69a05c33dfc65f8.js.map
├── vendor.dc2a748e035f2d805547.js
└── vendor.dc2a748e035f2d805547.js.map
11. CentOS
11.1. CentOS6挂载ISO文件做仓库
CentOS6官方已经停止支持,软件仓库被移除(涉及所有仓库镜像,包括国内镜像)。
现在,yum 命令已经不能在线安装任何软件包。
This directory (and version of CentOS) is deprecated. Please see this FAQ concerning the CentOS release scheme:
Please keep in mind that 6.0, 6.1, 6.2, 6.3, 6.4 , 6.5, 6.6, 6.7, 6.8 , 6.9 and 6.10 no longer get any updates, nor any security fix’s. The whole CentOS 6 is dead and shouldn’t be used anywhere at all
生产服务器不能换系统,挂载ISO文件做仓库成唯一快速方法。
另外一种方法是替换 /etc/yum.repos.d/CentOS-Base.repo 中的URL:
baseurl=http://mirror.centos.org/centos/$releasever/
替换为:
baseurl=https://vault.centos.org/6.10/
6.10 注意替换为当前系统的版本号。
替换后下载速度慢,建议加代理使用,比如 all_proxy=http://x.x.x.x:8123。
| EPEL仓库也已经被移除,官方移动到了 https://archives.fedoraproject.org/pub/archive/epel/6/x86_64/ |
11.1.1. 下载 CentOS6 ISO镜像
国内CentOS镜像已经无法下载,只能从CentOS官方提供的地址下载。
需要下载 CentOS-6.10-x86_64-bin-DVD1.iso 和 CentOS-6.10-x86_64-bin-DVD2.iso。
推荐用种子下载,更快:
也可以直接下载,只是更慢:
11.1.2. 设置本地软件仓库
创建挂载目录
mkdir -p /media/CentOS-DVD1 /media/CentOS-DVD2
挂载ISO镜像
方法一:从光驱挂载
mount -o loop,ro /dev/cdrom /media/CentOS-DVD1
mount -o loop,ro /dev/cdrom1 /media/CentOS-DVD2
方法二:从ISO文件挂载
mount -o loop,ro CentOS-6.10-x86_64-bin-DVD1.iso /media/CentOS-DVD1
mount -o loop,ro CentOS-6.10-x86_64-bin-DVD2.iso /media/CentOS-DVD2
设置仓库文件
先备份:
cp /etc/yum.repos.d/CentOS-Media.repo /etc/yum.repos.d/CentOS-Media.repo.bak
创建配置文件:
cat << EOF > /etc/yum.repos.d/CentOS-Media.repo
# CentOS-Media.repo
#
# This repo can be used with mounted DVD media, verify the mount point for
# CentOS-6. You can use this repo and yum to install items directly off the
# DVD ISO that we release.
#
# To use this repo, put in your DVD and use it with the other repos too:
# yum --enablerepo=c6-media [command]
#
# or for ONLY the media repo, do this:
#
# yum --disablerepo=\* --enablerepo=c6-media [command]
[c6-media]
name=CentOS-\$releasever - Media
baseurl=file:///media/CentOS-DVD1
file:///media/CentOS-DVD2
gpgcheck=1
enabled=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-6
EOF
清除YUM安装包缓存:
yum clean all
禁用在线仓库
因为在线仓库已经不可用,禁用所有在线仓库。
安装 yum-config-manager 命令所属的软件包 yum-utils:
yum --disablerepo=\* --enablerepo=c6-media install -y yum-utils
|
|
永久禁用默认启用的仓库:
yum-config-manager --disable base updates extras
用 yum repolist 命令确认只有 "c6-media" 仓库被启用:
[root@localhost ~]# yum repolist
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
repo id repo name status
c6-media CentOS- - Media 6,713
repolist: 6,713
确认本地仓库生效
yum list|grep vim
vim-common.x86_64 2:7.4.629-5.el6_8.1 @c6-media
vim-enhanced.x86_64 2:7.4.629-5.el6_8.1 @c6-media
vim-filesystem.x86_64 2:7.4.629-5.el6_8.1 @c6-media
vim-minimal.x86_64 2:7.4.629-5.el6_8.1 @anaconda-CentOS-201806291108.x86_64/6.10
vim-X11.x86_64 2:7.4.629-5.el6_8.1 c6-media
现在,可以用 yum install 安装软件包了。
11.2. CentOS6初始化
yum -y erase iscsi* NetworkManager
yum -y install iproute vim-enhanced epel-release chrony wget curl screen sudo rsync tcpdump strace openssh-clients
wget http://mirrors.aliyun.com/repo/epel-6.repo -O /etc/yum.repos.d/epel.repo
chkconfig chronyd on
service chronyd start
#支持gbk文件显示
echo set fencs=utf-8,gbk >>/etc/vimrc
#删除ipv6的localhost配置
#::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
echo "127.0.0.1 localhost $(hostname)" > /etc/hosts
# 禁用ipv6
echo "NETWORKING_IPV6=no" >> /etc/sysconfig/network
echo "net.ipv6.conf.all.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.default.disable_ipv6 = 1" >> /etc/sysctl.conf
sysctl -p
sed -i "s/HOSTNAME=.*/HOSTNAME=$(hostname)/g" /etc/sysconfig/network
rm -f ~/anaconda-ks.cfg ~/install.log ~/install.log.syslog
#禁用SELINUX,必须重启才能生效
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
#清除iptables的默认规则
iptables -F
service iptables save
#最大可以打开的文件
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
#增加同时打开文件的数量
#/etc/profile会加载/etc/profile.d下的sh文件
#echo ulimit -n 65535 >/etc/profile.d/ulimit.sh
#chmod 755 /etc/profile.d/ulimit.sh
#禁止关闭显示器 archlinux wiki 提及的方法
echo -ne "\033[9;0]" >> /etc/issue
# 重启,cat /sys/module/kernel/parameters/consoleblank 为空表示生效
# ssh登录时,登录ip被会反向解析为域名,导致ssh登录缓慢
sed -i "s/#UseDNS yes/UseDNS no/" /etc/ssh/sshd_config
sed -i "s/GSSAPIAuthentication yes/GSSAPIAuthentication no/" /etc/ssh/sshd_config
sed -i "s/GSSAPICleanupCredentials yes/GSSAPICleanupCredentials no/" /etc/ssh/sshd_config
sed -i "s/#MaxAuthTries 6/MaxAuthTries 10/" /etc/ssh/sshd_config
# server每隔30秒发送一次请求给client,然后client响应,从而保持连接
sed -i "s/#ClientAliveInterval 0/ClientAliveInterval 30/" /etc/ssh/sshd_config
# server发出请求后,客户端没有响应得次数达到3,就自动断开连接,正常情况下,client不会不响应
sed -i "s/#ClientAliveCountMax 3/ClientAliveCountMax 10/" /etc/ssh/sshd_config
#设定系统时区
yes|cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
#如果是x86_64系统,排除32位包
echo "exclude=*.i386 *.i586 *.i686" >> /etc/yum.conf
service_down_list=(lvm2-monitor mdmonitor postfix ip6tables netfs)
service_up_list=(iptables)
#停止服务并取消开机启动
for i in "${service_down_list[@]}"; do
service $i stop
chkconfig $i off
done
#开机启动
for i in "${service_up_list[@]}"; do
service $i start
chkconfig $i on
done
chkconfig lvm2-monitor off 1
11.3. CentOS7初始化
11.3.1. 基础设置
rm -f ~/anaconda-ks.cfg ~/install.log ~/install.log.syslog
#禁止关闭显示器 archlinux wiki 提及的方法
echo -ne "\033[9;0]" >> /etc/issue
# 重启,cat /sys/module/kernel/parameters/consoleblank 为空表示生效
yum install -y epel-release
yum install -y iproute rsync yum-utils tree pwgen vim-enhanced wget curl screen bzip2 tcpdump unzip tar xz bash-completion-extras mlocate strace telnet iftop iotop
# PHP 7
yum install -y centos-release-scl
#查看主机名
hostnamectl status
#修改主机名
hostnamectl set-hostname 主机名
#删除ipv6的localhost配置
#::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
echo "127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 $(hostname)" > /etc/hosts
#禁用SELINUX,必须重启才能生效
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
#最大可以打开的文件
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
# ssh登录时,登录ip被会反向解析为域名,导致ssh登录缓慢
sed -i "s/#UseDNS yes/UseDNS no/" /etc/ssh/sshd_config
sed -i "s/GSSAPIAuthentication yes/GSSAPIAuthentication no/" /etc/ssh/sshd_config
sed -i "s/GSSAPICleanupCredentials yes/GSSAPICleanupCredentials no/" /etc/ssh/sshd_config
sed -i "s/#MaxAuthTries 6/MaxAuthTries 10/" /etc/ssh/sshd_config
# server每隔30秒发送一次请求给client,然后client响应,从而保持连接
sed -i "s/#ClientAliveInterval 0/ClientAliveInterval 30/" /etc/ssh/sshd_config
# server发出请求后,客户端没有响应得次数达到3,就自动断开连接,正常情况下,client不会不响应
sed -i "s/#ClientAliveCountMax 3/ClientAliveCountMax 10/" /etc/ssh/sshd_config
#支持gbk文件显示
echo "set fencs=utf-8,gbk" >> /etc/vimrc
#设定系统时区
yes|cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
#时间同步
yum install -y chrony
systemctl enable chronyd --now
#如果是x86_64系统,排除32位包
echo "exclude=*.i386 *.i586 *.i686" >> /etc/yum.conf
#disable IPv6
echo "net.ipv6.conf.all.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.default.disable_ipv6 = 1" >> /etc/sysctl.conf
#允许网络转发,主要是给iptables使用
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf
sysctl -p
#如果你想使用自己的 iptables 静态防火墙规则, 那么请安装 iptables-services 并且禁用 firewalld ,启用 iptables
yum install -y iptables-services
systemctl stop firewalld
systemctl mask firewalld
systemctl enable iptables --now
iptables -F
iptables-save >/etc/sysconfig/iptables
11.3.2. 常用命令行编辑工具
请先安装新版Python CentOS7 Install Python312
yum install -y xmlstarlet crudini
pip312 install --root-user-action=ignore -U yq toml-cli
wget https://github.com/stedolan/jq/releases/download/jq-1.6/jq-linux64 -O /usr/local/bin/jq
chmod 755 /usr/local/bin/jq
11.4. CentOS8初始化(过时)
yum install -y bash-completion bzip2 curl epel-release iftop iotop iproute lbzip2 mlocate pwgen rsync screen strace tar tcpdump telnet tree unzip vim-enhanced wget xz yum-utils
dnf install -y dnf-plugins-core
dnf config-manager --set-enabled powertools
#禁用SELINUX,必须重启才能生效
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
#最大可以打开的文件
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
# ssh登录时,登录ip被会反向解析为域名,导致ssh登录缓慢
sed -i "s/#UseDNS yes/UseDNS no/" /etc/ssh/sshd_config
sed -i "s/GSSAPIAuthentication yes/GSSAPIAuthentication no/" /etc/ssh/sshd_config
sed -i "s/GSSAPICleanupCredentials yes/GSSAPICleanupCredentials no/" /etc/ssh/sshd_config
sed -i "s/#MaxAuthTries 6/MaxAuthTries 10/" /etc/ssh/sshd_config
# server每隔30秒发送一次请求给client,然后client响应,从而保持连接
sed -i "s/#ClientAliveInterval 0/ClientAliveInterval 30/" /etc/ssh/sshd_config
# server发出请求后,客户端没有响应得次数达到3,就自动断开连接,正常情况下,client不会不响应
sed -i "s/#ClientAliveCountMax 3/ClientAliveCountMax 10/" /etc/ssh/sshd_config
#支持gbk文件显示
echo "set fencs=utf-8,gbk" >> /etc/vimrc
#设定系统时区
yes|cp /usr/share/zoneinfo/Asia/Chongqing /etc/localtime
#时间同步
dnf install -y systemd-timesyncd
systemctl enable systemd-timesyncd
systemctl start systemd-timesyncd
#如果是x86_64系统,排除32位包
echo "exclude=*.i386 *.i586 *.i686" >> /etc/yum.conf
systemctl stop firewalld
systemctl disable firewalld
systemctl mask firewalld
11.5. CentOS9初始化
11.5.1. 基础设置
rm -f ~/anaconda-ks.cfg
dnf install -y epel-release
dnf install -y iproute rsync yum-utils tree pwgen vim-enhanced wget curl screen lbzip2 tcpdump unzip tar xz bash-completion mlocate strace telnet iftop iotop
dnf install -y dnf-plugins-core
# The CodeReady Linux Builder repository contains additional packages for use by developers.
dnf config-manager --set-enabled crb
# dnf repo-pkgs crb list
#禁用SELINUX,必须重启才能生效
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
#最大可以打开的文件
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
# ssh登录时,登录ip被会反向解析为域名,导致ssh登录缓慢
sed -i "s/#UseDNS no/UseDNS no/" /etc/ssh/sshd_config
sed -i "s/#GSSAPIAuthentication no/GSSAPIAuthentication no/" /etc/ssh/sshd_config
sed -i "s/#GSSAPICleanupCredentials no/GSSAPICleanupCredentials no/" /etc/ssh/sshd_config
sed -i "s/#MaxAuthTries 6/MaxAuthTries 10/" /etc/ssh/sshd_config
# server每隔30秒发送一次请求给client,然后client响应,从而保持连接
sed -i "s/#ClientAliveInterval 0/ClientAliveInterval 30/" /etc/ssh/sshd_config
# server发出请求后,客户端没有响应得次数达到3,就自动断开连接,正常情况下,client不会不响应
sed -i "s/#ClientAliveCountMax 3/ClientAliveCountMax 10/" /etc/ssh/sshd_config
#支持gbk文件显示
echo "set fencs=utf-8,gbk" >> /etc/vimrc
#设定系统时区
yes|cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
#时间同步
dnf install -y systemd-timesyncd
systemctl enable systemd-timesyncd --now
#如果是x86_64系统,排除32位包
echo "exclude=*.i386 *.i586 *.i686" >> /etc/yum.conf
#disable IPv6
echo "net.ipv6.conf.all.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.default.disable_ipv6 = 1" >> /etc/sysctl.conf
#允许网络转发,主要是给iptables使用
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf
sysctl -p
#如果你想使用自己的 iptables 静态防火墙规则, 那么请安装 iptables-services 并且禁用 firewalld ,启用 iptables
dnf install -y iptables-services
systemctl stop firewalld
systemctl mask firewalld
systemctl enable iptables --now
iptables -F
iptables-save >/etc/sysconfig/iptables
11.5.2. 常用命令行编辑工具
dnf install -y xmlstarlet crudini
dnf install -y python3.11 python3.11-pip
pip3.11 install --root-user-action=ignore -U yq toml-cli
wget https://github.com/stedolan/jq/releases/download/jq-1.6/jq-linux64 -O /usr/local/bin/jq
chmod 755 /usr/local/bin/jq
11.6. CentOS7 Install LNMP
11.6.1. 安装 Nginx
cat << EOF > /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/\$releasever/\$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
[nginx-mainline]
name=nginx mainline repo
baseurl=http://nginx.org/packages/mainline/centos/\$releasever/\$basearch/
gpgcheck=1
enabled=0
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
EOF
|
EPEL 源中的 |
yum install -y nginx
echo y|cp /etc/nginx/nginx.conf /etc/nginx/nginx.conf.default
cat << EOF > /etc/nginx/nginx.conf
# For more information on configuration, see:
# * Official English Documentation: http://nginx.org/en/docs/
# * Official Russian Documentation: http://nginx.org/ru/docs/
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
worker_rlimit_nofile 65535;
events {
worker_connections 65535;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '\$host \$server_port \$remote_addr - \$remote_user [\$time_local] "\$request" '
'\$status \$request_time \$body_bytes_sent "\$http_referer" '
'"\$http_user_agent" "\$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;
server_names_hash_bucket_size 128;
server_name_in_redirect off;
client_header_buffer_size 32k;
large_client_header_buffers 4 32k;
client_header_timeout 3m;
client_body_timeout 3m;
client_max_body_size 50m;
client_body_buffer_size 256k;
send_timeout 3m;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.0;
gzip_comp_level 2;
gzip_types image/svg+xml application/x-font-wof text/plain text/xml text/css application/xml application/xhtml+xml application/rss+xml application/javascript application/x-javascript text/javascript;
gzip_vary on;
proxy_redirect off;
proxy_set_header Host \$host;
proxy_set_header X-Real-IP \$remote_addr;
proxy_set_header REMOTE-HOST \$remote_addr;
proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
proxy_connect_timeout 60;
proxy_send_timeout 60;
proxy_read_timeout 60;
proxy_buffer_size 256k;
proxy_buffers 4 256k;
proxy_busy_buffers_size 256k;
proxy_temp_file_write_size 256k;
proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
proxy_max_temp_file_size 128m;
#让代理服务端不要主动关闭客户端的连接,协助处理499返回代码问题
proxy_ignore_client_abort on;
fastcgi_buffer_size 64k;
fastcgi_buffers 4 64k;
fastcgi_busy_buffers_size 128k;
index index.html index.htm index.php default.html default.htm default.php;
# Load modular configuration files from the /etc/nginx/conf.d directory.
# See http://nginx.org/en/docs/ngx_core_module.html#include
# for more information.
include /etc/nginx/conf.d/*.conf;
}
EOF
mkdir /etc/nginx/conf.d
cat << EOF > /etc/nginx/conf.d/default.conf
server {
listen 80 default_server;
listen [::]:80 default_server;
server_name _;
root /usr/share/nginx/html;
# Load configuration files for the default server block.
include /etc/nginx/default.d/*.conf;
location / {
}
error_page 404 /404.html;
location = /40x.html {
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
}
}
EOF
nginx -t && rm -f /var/run/nginx.pid
|
需要手动删除 from nginx/1.16.1 |
systemctl start nginx
# systemctl status nginx
● nginx.service - The nginx HTTP and reverse proxy server
Loaded: loaded (/usr/lib/systemd/system/nginx.service; disabled; vendor preset: disabled)
Active: active (running) since Fri 2019-11-29 14:02:31 CST; 1h 18min ago
Main PID: 15759 (nginx)
CGroup: /system.slice/nginx.service
├─15759 nginx: master process /usr/sbin/nginx
└─17285 nginx: worker process
Nov 29 14:02:31 iZ6weebcmroarpx8rrxscrZ systemd[1]: Starting The nginx HTTP and reverse proxy server...
Nov 29 14:02:31 iZ6weebcmroarpx8rrxscrZ nginx[15753]: nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
Nov 29 14:02:31 iZ6weebcmroarpx8rrxscrZ nginx[15753]: nginx: configuration file /etc/nginx/nginx.conf test is successful
Nov 29 14:02:31 iZ6weebcmroarpx8rrxscrZ systemd[1]: Failed to parse PID from file /run/nginx.pid: Invalid argument
Nov 29 14:02:31 iZ6weebcmroarpx8rrxscrZ systemd[1]: Started The nginx HTTP and reverse proxy server.
# ss -antpl|grep nginx
LISTEN 0 128 *:80 *:* users:(("nginx",pid=17285,fd=6),("nginx",pid=15759,fd=6))
LISTEN 0 128 :::80 :::* users:(("nginx",pid=17285,fd=7),("nginx",pid=15759,fd=7))
systemctl enable nginx
11.6.2. 安装 MySQL
yum install -y mariadb-server
my.cnfcp /etc/my.cnf /etc/my.cnf.default
my.cnfcat << EOF > /etc/my.cnf
[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
max_allowed_packet=20M
max_heap_table_size = 100M
read_buffer_size = 2M
read_rnd_buffer_size = 16M
sort_buffer_size = 8M
join_buffer_size = 8M
tmp_table_size = 100M
# 查询缓存
#query_cache_limit=4M
#query_cache_type=on
#query_cache_size=2G
bind-address = 127.0.0.1
# 跳过主机名解析,比如localhost,foo.com之类,加速访问
skip-name-resolve
# SQL执行日志
general_log=off
general_log_file=/var/log/mariadb/general.log
# SQL慢查询日志
slow_query_log=off
slow_query_log_file=/var/log/mariadb/slowquery.log
long_query_time = 5
max_connections = 1000
# 兼容老MySQL代码,比如使用空字符串代替NULL插入数据
sql_mode = ""
[mysqld_safe]
log-error=/var/log/mariadb/mariadb.log
pid-file=/var/run/mariadb/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
EOF
mysqldump 命令参数sed -i '16 aquick\nquote-names\nmax_allowed_packet = 100M' /etc/my.cnf.d/mysql-clients.cnf
touch /var/log/mariadb/general.log /var/log/mariadb/slowquery.log
chown mysql:mysql /var/log/mariadb/general.log /var/log/mariadb/slowquery.log
systemctl enable mariadb
MySQL 服务systemctl start mariadb
MySQL 服务状态# systemctl status mariadb
● mariadb.service - MariaDB database server
Loaded: loaded (/usr/lib/systemd/system/mariadb.service; enabled; vendor preset: disabled)
Active: active (running) since Fri 2019-11-29 14:18:12 CST; 1h 7min ago
Process: 16688 ExecStartPost=/usr/libexec/mariadb-wait-ready $MAINPID (code=exited, status=0/SUCCESS)
Process: 16653 ExecStartPre=/usr/libexec/mariadb-prepare-db-dir %n (code=exited, status=0/SUCCESS)
Main PID: 16687 (mysqld_safe)
CGroup: /system.slice/mariadb.service
├─16687 /bin/sh /usr/bin/mysqld_safe --basedir=/usr
└─17043 /usr/libexec/mysqld --basedir=/usr --datadir=/var/lib/mysql --plugin-dir=/usr/lib64/mysql/plugin --log-error=/var/log/mariadb/mariadb.lo...
Nov 29 14:18:10 iZ6weebcmroarpx8rrxscrZ systemd[1]: Starting MariaDB database server...
Nov 29 14:18:10 iZ6weebcmroarpx8rrxscrZ mariadb-prepare-db-dir[16653]: Database MariaDB is probably initialized in /var/lib/mysql already, nothing is done.
Nov 29 14:18:11 iZ6weebcmroarpx8rrxscrZ mysqld_safe[16687]: 191129 14:18:11 mysqld_safe Logging to '/var/log/mariadb/mariadb.log'.
Nov 29 14:18:11 iZ6weebcmroarpx8rrxscrZ mysqld_safe[16687]: 191129 14:18:11 mysqld_safe Starting mysqld daemon with databases from /var/lib/mysql
Nov 29 14:18:12 iZ6weebcmroarpx8rrxscrZ systemd[1]: Started MariaDB database server.
# ss -antpl|grep mysql
LISTEN 0 50 127.0.0.1:3306 *:* users:(("mysqld",pid=17043,fd=14))
mysqladmin -uroot password "geek"
mysql -uroot -pgeek -e 'show databases;'
mysql -uroot -pgeek -e 'drop database test;'
mysql -uroot -pgeek mysql -e 'delete from db;'
mysql -uroot -pgeek mysql -e 'delete from user where Password="";'
mysql -uroot -pgeek -e 'flush privileges;'
11.6.3. 安装 PHP7
yum install -y centos-release-scl
yum install -y rh-php72 \
rh-php72-php \
rh-php72-php-bcmath \
rh-php72-php-fpm \
rh-php72-php-gd \
rh-php72-php-intl \
rh-php72-php-mbstring \
rh-php72-php-mysqlnd \
rh-php72-php-opcache \
rh-php72-php-pdo \
rh-php72-php-pecl-apcu \
rh-php72-php-xmlrpc \
rh-php72-php-devel
rh-php72 环境scl enable rh-php72 bash
# php -v
PHP 7.2.24 (cli) (built: Nov 4 2019 10:23:08) ( NTS )
Copyright (c) 1997-2018 The PHP Group
Zend Engine v3.2.0, Copyright (c) 1998-2018 Zend Technologies
with Zend OPcache v7.2.24, Copyright (c) 1999-2018, by Zend Technologies
cp /etc/opt/rh/rh-php72/php.ini /etc/opt/rh/rh-php72/php.ini.default
# 启用 '<? ... ?>' 代码风格
sed -i '197s/short_open_tag = Off/short_open_tag = On/' /etc/opt/rh/rh-php72/php.ini
# 禁止一些危险性高的函数
sed -i '314s/disable_functions =/disable_functions = system,exec,shell_exec,passthru,set_time_limit,ini_alter,dl,openlog,syslog,readlink,symlink,link,leak,popen,escapeshellcmd,virtual,socket_create,mail,eval/' /etc/opt/rh/rh-php72/php.ini
# 配置中国时区
sed -i '902s#;date.timezone =#date.timezone = Asia/Shanghai#' /etc/opt/rh/rh-php72/php.ini
systemctl enable rh-php72-php-fpm
PHP-FPM 服务systemctl start rh-php72-php-fpm
PHP-FPM 服务状态# systemctl status rh-php72-php-fpm
● rh-php72-php-fpm.service - The PHP FastCGI Process Manager
Loaded: loaded (/usr/lib/systemd/system/rh-php72-php-fpm.service; enabled; vendor preset: disabled)
Active: active (running) since Fri 2019-11-29 13:36:03 CST; 1h 56min ago
Main PID: 15360 (php-fpm)
Status: "Processes active: 0, idle: 6, Requests: 56, slow: 0, Traffic: 0req/sec"
CGroup: /system.slice/rh-php72-php-fpm.service
├─15360 php-fpm: master process (/etc/opt/rh/rh-php72/php-fpm.conf)
├─15361 php-fpm: pool www
├─15362 php-fpm: pool www
├─15363 php-fpm: pool www
├─15364 php-fpm: pool www
├─15365 php-fpm: pool www
└─17211 php-fpm: pool www
Nov 29 13:36:03 iZ6weebcmroarpx8rrxscrZ systemd[1]: Starting The PHP FastCGI Process Manager...
Nov 29 13:36:03 iZ6weebcmroarpx8rrxscrZ systemd[1]: Started The PHP FastCGI Process Manager.
# ss -antpl|grep php-fpm
LISTEN 0 128 127.0.0.1:9000 *:* users:(("php-fpm",pid=17211,fd=9),("php-fpm",pid=15365,fd=9),("php-fpm",pid=15364,fd=9),("php-fpm",pid=15363,fd=9),("php-fpm",pid=15362,fd=9),("php-fpm",pid=15361,fd=9),("php-fpm",pid=15360,fd=7))
11.6.4. LNMP 环境测试
mysql -uroot -pgeek -e 'create database drupal;grant all privileges on drupal.* to drupal@"localhost" identified by "drupal_password";flush privileges;'
cat << EOF > /etc/nginx/conf.d/drupal.foo.com.conf
server {
listen 80;
server_name drupal.foo.com;
root /data/web/drupal.foo.com;
error_log /var/log/nginx/drupal.foo.com_error.log;
access_log /var/log/nginx/drupal.foo.com_access.log main;
location / {
try_files \$uri /index.php\$is_args\$query_string;
}
location ~ \.php\$ {
try_files \$uri \$uri/ 404;
fastcgi_pass 127.0.0.1:9000;
fastcgi_param SCRIPT_FILENAME \$document_root\$fastcgi_script_name;
include fastcgi_params;
}
}
EOF
# 重载Nginx配置
nginx -t && nginx -s reload
Drupalmkdir -p /data/web/drupal.foo.com
# 使用 -O 参数指定保存文件名,会强制覆盖已经存在的文件
wget https://ftp.drupal.org/files/projects/drupal-8.7.10.tar.gz -O drupal-8.7.10.tar.gz
tar xf drupal-8.7.10.tar.gz
mv drupal-8.7.10/* /data/web/drupal.foo.com
rm -rf drupal-8.7.10
chown -R apache:nginx /data/web/drupal.foo.com
chmod -R 755 /data/web/drupal.foo.com
|
drupal-8.7.10/core/INSTALL.txt Drupal requires:
|
echo '47.74.60.161 drupal.foo.com' >> /etc/hosts
|
最后,访问 http://drupal.foo.com 完成安装。
Drupal数据库相关信息:
-
数据库服务器:localhost
-
数据库端口:3306
-
数据库名称:drupal
-
数据库用户名:drupal
-
数据库密码:drupal_password
11.7. CentOS8配置文档
11.7.1. 安装 Nginx
dnf install -y epel-release
dnf install -y nginx
echo y|cp /etc/nginx/nginx.conf /etc/nginx/nginx.conf.defaultv
cat << EOF > /etc/nginx/nginx.conf
# For more information on configuration, see:
# * Official English Documentation: http://nginx.org/en/docs/
# * Official Russian Documentation: http://nginx.org/ru/docs/
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;
# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;
worker_rlimit_nofile 65535;
events {
worker_connections 65535;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '\$host \$server_port \$remote_addr - \$remote_user [\$time_local] "\$request" '
'\$status \$request_time \$body_bytes_sent "\$http_referer" '
'"\$http_user_agent" "\$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;
server_names_hash_bucket_size 128;
server_name_in_redirect off;
client_header_buffer_size 32k;
large_client_header_buffers 4 32k;
client_header_timeout 3m;
client_body_timeout 3m;
client_max_body_size 50m;
client_body_buffer_size 256k;
send_timeout 3m;
gzip on;
gzip_min_length 1k;
gzip_buffers 4 16k;
gzip_http_version 1.0;
gzip_comp_level 2;
gzip_types image/svg+xml application/x-font-wof text/plain text/xml text/css application/xml application/xhtml+xml application/rss+xml application/javascript application/x-javascript text/javascript;
gzip_vary on;
proxy_redirect off;
proxy_set_header Host \$host;
proxy_set_header X-Real-IP \$remote_addr;
proxy_set_header REMOTE-HOST \$remote_addr;
proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
proxy_connect_timeout 60;
proxy_send_timeout 60;
proxy_read_timeout 60;
proxy_buffer_size 256k;
proxy_buffers 4 256k;
proxy_busy_buffers_size 256k;
proxy_temp_file_write_size 256k;
proxy_next_upstream error timeout invalid_header http_500 http_503 http_404;
proxy_max_temp_file_size 128m;
#让代理服务端不要主动关闭客户端的连接,协助处理499返回代码问题
proxy_ignore_client_abort on;
fastcgi_buffer_size 64k;
fastcgi_buffers 4 64k;
fastcgi_busy_buffers_size 128k;
index index.html index.htm index.php default.html default.htm default.php;
# Load modular configuration files from the /etc/nginx/conf.d directory.
# See http://nginx.org/en/docs/ngx_core_module.html#include
# for more information.
include /etc/nginx/conf.d/*.conf;
}
EOF
mkdir /etc/nginx/conf.d
cat << EOF > /etc/nginx/conf.d/default.conf
server {
listen 80 default_server;
listen [::]:80 default_server;
server_name _;
root /usr/share/nginx/html;
# Load configuration files for the default server block.
include /etc/nginx/default.d/*.conf;
location / {
}
error_page 404 /404.html;
location = /40x.html {
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
}
}
EOF
nginx -t
systemctl start nginx
systemctl status nginx
systemctl enable nginx
nginx -v
11.7.2. 安装 MySQL
dnf install -y mariadb-server
cp /etc/my.cnf /etc/my.cnf.default
cat << EOF > /etc/my.cnf
[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
max_allowed_packet=20M
max_heap_table_size = 100M
read_buffer_size = 2M
read_rnd_buffer_size = 16M
sort_buffer_size = 8M
join_buffer_size = 8M
tmp_table_size = 100M
# 查询缓存
#query_cache_limit=4M
#query_cache_type=on
#query_cache_size=2G
bind-address = 127.0.0.1
# 跳过主机名解析,比如localhost,foo.com之类,加速访问
skip-name-resolve
# SQL执行日志
general_log=off
general_log_file=/var/log/mariadb/general.log
# SQL慢查询日志
slow_query_log=off
slow_query_log_file=/var/log/mariadb/slowquery.log
long_query_time = 5
max_connections = 1000
# 兼容老MySQL代码,比如使用空字符串代替NULL插入数据
sql_mode = ""
[mysqld_safe]
log-error=/var/log/mariadb/mariadb.log
pid-file=/var/run/mariadb/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
EOF
systemctl enable mariadb
systemctl start mariadb
systemctl status mariadb
mysqladmin -uroot password "geek"
mysql -uroot -pgeek -e 'show databases;'
mysql -uroot -pgeek -e 'drop database test;'
mysql -uroot -pgeek mysql -e 'delete from db;'
mysql -uroot -pgeek mysql -e 'delete from user where Password="";'
mysql -uroot -pgeek -e 'flush privileges;'
11.7.3. 安装 PHP7
dnf install -y \
php \
php-bcmath \
php-fpm \
php-gd \
php-intl \
php-mbstring \
php-mysqlnd \
php-opcache \
php-pdo \
php-pecl-apcu \
php-xmlrpc \
php-devel \
php-json
sed -i '197s/short_open_tag = Off/short_open_tag = On/' /etc/php.ini
# 禁止一些危险性高的函数
sed -i '314s/disable_functions =/disable_functions = system,exec,shell_exec,passthru,set_time_limit,ini_alter,dl,openlog,syslog,readlink,symlink,link,leak,popen,escapeshellcmd,virtual,socket_create,mail,eval/' /etc/php.ini
# 配置中国时区
sed -i '902s#;date.timezone =#date.timezone = Asia/Shanghai#' /etc/php.ini
systemctl enable php-fpm
systemctl start php-fpm
systemctl status php-fpm
11.7.4. LNMP环境测试
mysql -uroot -pgeek -e 'create database drupal;grant all privileges on drupal.* to drupal@"localhost" identified by "drupal_password";flush privileges;'
cat << EOF > /etc/nginx/conf.d/drupal.foo.com.conf
server {
listen 80;
server_name drupal.foo.com;
root /data/web/drupal.foo.com;
error_log /var/log/nginx/drupal.foo.com_error.log;
access_log /var/log/nginx/drupal.foo.com_access.log main;
location / {
try_files \$uri /index.php\$is_args\$query_string;
}
location ~ \.php\$ {
try_files \$uri \$uri/ 404;
fastcgi_pass unix://run/php-fpm/www.sock;
include fastcgi.conf;
}
}
EOF
nginx -s reload
mkdir -p /data/web/drupal.foo.com
wget https://ftp.drupal.org/files/projects/drupal-8.7.10.tar.gz -O drupal-8.7.10.tar.gz
tar xf drupal-8.7.10.tar.gz
mv drupal-8.7.10/* /data/web/drupal.foo.com
rm -rf drupal-8.7.10
chown -R apache:nginx /data/web/drupal.foo.com
chmod -R 755 /data/web/drupal.foo.com
echo '47.74.60.161 drupal.foo.com' >> /etc/hosts
11.8. CentOS8安装前加载驱动
RedHat7中支持,但是在RedHat8中已经移除的硬件列表。特别是一些老的存储相关硬件。
ELRepo 社区提供一些硬件支持的DUD文件,全文如下:
RHEL 8.0 and support for removed adapters In RHEL 8.0, support for a good number of hardware devices has been removed. A list of removed adapters with their device IDs can be found in this RHEL documentation[https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/8/html/considerations_in_adopting_rhel_8/hardware-enablement_considerations-in-adopting-rhel-8#removed-adapters_hardware-enablement]. We provide support for some of those that are still fairly commonly used today. You can check your devices's IDs (as shown by lspci -nn) against our list of supported devices.
(1) Installation of the OS requires a driver for your hardware. We offer driver update disks (DUD). You can download them from here[https://elrepo.org/linux/dud/el8/x86_64/] or the corresponding directory of our mirror sites. Each DUD image contains a driver in the form of a kmod package. The installer is supposed to find the driver. If this does not happen, you need to append the inst.dd option to the boot command line. For details please see Performing an assisted driver update[https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/8/html/performing_an_advanced_rhel_installation/updating-drivers-during-installation_installing-rhel-as-an-experienced-user#performing-an-assisted-driver-update_updating-drivers-during-installation].
(2) The installation process installs the kmod package for your adapter. Normally, because of the kABI-tracking nature of kmod, there is no need to reinstall the driver upon each new kernel update. However, it was found that the current version of dracut in RHEL 8.0 has a bug and the initramfs image of a new kernel does not contain the kernel module from the installed kmod package. As a result, the new kernel fails to boot.
As an interim solution for the problem in (2), we provide a dracut package with a patch that fixes the bug here:
http://elrepo.org/people/akemi/testing/el8/dracut/
Install this version of dracut and then update the kernel. The system now should boot normally.
[UPDATE] dracut-049-10.git20190115.el8_0.1 released on Oct 29, 2019 has the patch that fixes the issue.
11.8.1. Dell Precision T3600
Storage Controller
内置:
-
Intel Storage Control Unit (SCU) SATA 3.0Gb/s controller with host based RAID 0, 1, 5, 10.
(Serial Attached SCSI controller [0300]: Intel Corporation C602 chipset 4-Port SATAStorage Control Unit [8086: 1d6b])
DUD文件 dd-isci-1.2.0-1.el8.elrepo.iso 中,文件路径有内核版本号,需要确认安装镜像中运行的内核版本。
|
加载DUD文件 dd-isci-1.2.0-1.el8.elrepo.iso 之后,CentOS8 安装界面会出问题,自动重启,无法使用。 |
-
Dual AHCI 6Gb/s SATA port option (no RAID support)
可选:
-
Dell PERC H310 PCIe host-based RAID card with four usable 6Gb/s ports supporting SATA/SAS/SSD drives and RAID 0, 1, 5, 10 configurations
(SAS controller: LSI SAS2008) -
Dell PERC H710P PCIe hardware RAID card with 1GB non-volatile cache memory and four usable 6Gb/s ports supporting SATA/SAS/SSD drives and RAID 0,1, 5, 10 configurations
说明:
Note: In my case, I'm using the card in IT mode; the disks are not set into RAID with the card, so only the mpt3sas DUD is required. If you have a IR mode (RAID via the controller) configuration, you may need the megaraid-sas DUD too.
H310 加载 megaraid_sas 之后,CentOS 8安装盘识别到了硬盘。
DUD
在USB启动之后,在安装菜单中按 Tab,在启动参数最后追加 inst.dd,进入安装界面之后,会交互式提示选择iso文件。
不过,经过测试发现交互式选择iso,无法挂载。
最终,选择修改USB设备卷标 OEMDRV 方式,成功加载。
如果需要同时加载多个DUD文件,使用 inst.dd=http://192.168.0.2/dd.iso 加上卷标 OEMDRV 方式自动加载,这样会加载两次。
|
CentOS8 网络安装地址:
|
|
H310 不支持SSD启动,建议使用SSD+Sata端口安装和运行。 |
|
T3600安装CentOS8时,只有两个盘位。所以,只能接SATA0和SATA1。并且,要保证BIOS中,SATA控制器模式是ACHI。 |
12. Mosquitto
12.1. 安装
| 基于CentOS8 |
官方文档: https://mosquitto.org/
12.1.1. 依赖
系统依赖
dnf install -y openssl-devel gcc make gcc-c++
第三方依赖(可选)
让Mosquitto支持WebSockets客户端需要安装 libwebsockets 依赖。
dnf install -y cmake
wget -O libwebsockets-4.0.1.tar.gz https://github.com/warmcat/libwebsockets/archive/v4.0.1.tar.gz
tar xf libwebsockets-4.0.1.tar.gz
cd libwebsockets-4.0.1
mkdir build
cd build
cmake -DCMAKE_INSTALL_PREFIX=/usr/local/libwebsockets-4.0.1 ..
make -j4 install
echo "/usr/local/libwebsockets-4.0.1/lib" > /etc/ld.so.conf.d/libwebsockets.conf
ldconfig
ldconfig -p|grep libwebsockets
12.1.2. 编译
下载源代码
mkdir ~/downloads
cd ~/downloads
wget -O mosquitto-1.6.9.tar.gz https://mosquitto.org/files/source/mosquitto-1.6.9.tar.gz
tar xf mosquitto-1.6.9.tar.gz
编译:默认配置
cd mosquitto-1.6.9
make -j4
make install prefix=/usr/local/mosquitto-1.6.9
编译:支持WebSockts客户端
export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:/usr/local/libwebsockets-4.0.1/lib/pkgconfig
ln -s /usr/local/libwebsockets-4.0.1/lib/libwebsockets.so /usr/lib/libwebsockets.so
cd mosquitto-1.6.9
make -j4 CFLAGS=`pkg-config --cflags-only-I libwebsockets` WITH_WEBSOCKETS=yes
make install prefix=/usr/local/mosquitto-1.6.9
unlink /usr/lib/libwebsockets.so
12.2. 配置
12.2.1. 基础配置
加入环境变量:
ln -s /usr/local/mosquitto-1.6.9/bin/* /usr/local/bin/
ln -s /usr/local/mosquitto-1.6.9/sbin/* /usr/local/bin/
echo /usr/local/mosquitto-1.6.9/lib/ >> /etc/ld.so.conf
ldconfig
创建用户:
useradd -c "mosquitto server user" -d /var/lib/mosquitto -s /sbin/nologin mosquitto
创建配置文件:
cp /etc/mosquitto/mosquitto.conf.example /etc/mosquitto/mosquitto.conf
touch /etc/mosquitto/pwfile /etc/mosquitto/aclfile /var/log/mosquitto.log
chown mosquitto:mosquitto /var/log/mosquitto.log
sed -i '588s/#log_dest stderr/log_dest file \/var\/log\/mosquitto.log/' /etc/mosquitto/mosquitto.conf
sed -i '669s/# password_file/password_file \/etc\/mosquitto\/pwfile/' /etc/mosquitto/mosquitto.conf
sed -i '728s/#acl_file/acl_file \/etc\/mosquitto\/aclfile/' /etc/mosquitto/mosquitto.conf
sed -i '651s/#allow_anonymous true/allow_anonymous false/' /etc/mosquitto/mosquitto.conf
12.2.2. 创建系统服务
cat << EOF > /usr/lib/systemd/system/mosquitto.service
[Unit]
Description=Eclipse Mosquitto - An open source MQTT broker
After=network.target remote-fs.target nss-lookup.target
[Service]
Type=forking
User=mosquitto
Group=mosquitto
ExecStart=/usr/local/mosquitto-1.6.9/sbin/mosquitto -d -c /etc/mosquitto/mosquitto.conf -v
[Install]
WantedBy=multi-user.target
EOF
systemctl enable mosquitto
启动服务:
systemctl start mosquitto
systemctl status mosquitto
12.2.3. 权限设置
创建用户 foo:
mosquitto_passwd -b /etc/mosquitto/pwfile foo 'ugnCy55jZpJj0Xnh0ucS'
另外,可以在 '/etc/mosquitto/aclfile' 文件中设置用户可读写的 topic。比如:
cat << EOF > /etc/mosquitto/aclfile
# This affects access control for clients with no username.
topic read \$SYS/#
# This affects all clients.
pattern readwrite #
EOF
以上权限设置表示 $SYS/# 可以被所有客户端只读,pattern readwrite # 表示所有客户端可以访问任何topic。
详情参考 /etc/mosquitto/aclfile.example。
在主配置中启用了权限控制(/etc/mosquitto/aclfile )之后,必须配置规则。否则,客户端无法推送消息。
13. Terminal
13.1. 快捷键
Keyboard shortcuts are combinations of keys that allow you to perform actions, such as opening the settings dialog or accessing a feature inside Terminal quickly. These shortcuts can be modified to suit your preferences.
To change a keyboard shortcut:
-
Press the menu button in the top-right corner of the window and select Preferences.
-
In the sidebar, select Shortcuts.
-
Make sure Enable shortcuts is selected.
-
Select the shortcut that you wish to edit by clicking on it.
-
Once the shortcut is selected, click on the shortcut key combination to edit it.
-
Press your desired shortcut key combination as you would enter it to use it. The keys that you can use include Alt, Alt Gr, Ctrl, Shift, Super, number and letter keys.
| Mnemonic key combinations, such as Alt+F will not work. |
-
Once you have entered your new shortcut, it will automatically be saved and you should see it in the list next to the corresponding action.
| To disable a shortcut, edit it and press the Backspace instead of the new shortcut. |
13.1.1. File shortcuts
The default shortcuts for options in this section are:
| Action | Keyboard Shortcut |
|---|---|
New Tab |
|
New Window |
|
Close Tab |
|
Close Window |
|
13.1.2. Edit shortcuts
The default shortcuts for options in this section are:
| Action | Keyboard Shortcut |
|---|---|
Copy |
|
Paste |
|
13.1.3. View shortcuts
The default shortcuts for options in this section are:
| Action | Keyboard Shortcut |
|---|---|
Full Screen |
|
Zoom In |
|
Zoom Out |
|
Normal Size |
|
13.1.4. Search shortcuts
The default shortcuts for options in this section are:
| Action | Keyboard Shortcut |
|---|---|
Find |
|
Find Next |
|
Find Previous |
|
Clear Highlight |
|
13.1.5. Tab shortcuts
The default shortcuts for options in this section are:
| Action | Keyboard Shortcut |
|---|---|
Switch to Previous Tab |
|
Switch to Next Tab |
|
Move Tab to the Left |
|
Move Tab to the Right |
|
Switch to Tab 1 |
|
Switch to Tab 2 |
|
Switch to Tab 3 |
|
Switch to Tab 4 |
|
Switch to Tab 5 |
|
Switch to Tab 6 |
|
Switch to Tab 7 |
|
Switch to Tab 8 |
|
Switch to Tab 9 |
|
Switch to Tab 10 |
|
13.1.6. Other
There are also some shortcuts that cannot be edited:
| Action | Keyboard Shortcut |
|---|---|
Scroll up by one line |
|
Scroll down by one line |
|
Scroll up by one page |
|
Scroll down by one page |
|
Scroll to the top |
|
Scroll to the bottom |
|
13.1.7. Bash shortcuts
These are Bash shortcuts. Bash is usually the default shell.
Bash shell specific keyboard shortcuts are:
| Action | Keyboard Shortcut |
|---|---|
Erase a word |
|
Erase a line |
|
Move to the start of the line |
|
Move to the end of the line |
|
Move back one character |
|
Move back one word |
|
Move forward one character |
|
Move forward one word |
|
Delete from the cursor to the beginning of the line |
|
Delete from the cursor to the end of the line |
|
Delete from the cursor to the start of the word |
|
Delete previous word |
|
Paste text from the clipboard |
|
Clear the screen leaving the current line at the top of the screen |
|
Reverse incremental search of history |
|
Reverse non-incremental search of history |
|
14. FFmpeg
14.1. 安装最新版FFmpeg
RPM Fusion 仓库的 ffmpeg 版本太老
|
14.1.1. 安装静态构建版
| 以下内容根据 Linux Static Builds 整理 |
mkdir -p ~/downloads
cd ~/downloads
wget https://johnvansickle.com/ffmpeg/releases/ffmpeg-release-amd64-static.tar.xz -O ffmpeg-release-amd64-static.tar.xz
tar xf ffmpeg-release-amd64-static.tar.xz
rm -rf /usr/local/ffmpeg-6.0
mv ffmpeg-6.0-amd64-static /usr/local/ffmpeg-6.0/
mkdir -p /usr/local/ffmpeg-6.0/bin
mv /usr/local/ffmpeg-6.0/ffmpeg /usr/local/ffmpeg-6.0/bin/
mv /usr/local/ffmpeg-6.0/ffprobe /usr/local/ffmpeg-6.0/bin/
mv /usr/local/ffmpeg-6.0/qt-faststart /usr/local/ffmpeg-6.0/bin/
14.1.2. 查看版本
/usr/local/ffmpeg-6.0/bin/ffmpeg -version
ffmpeg version 6.0-static https://johnvansickle.com/ffmpeg/ Copyright (c) 2000-2023 the FFmpeg developers
built with gcc 8 (Debian 8.3.0-6)
configuration: --enable-gpl --enable-version3 --enable-static --disable-debug --disable-ffplay --disable-indev=sndio --disable-outdev=sndio --cc=gcc --enable-fontconfig --enable-frei0r --enable-gnutls --enable-gmp --enable-libgme --enable-gray --enable-libaom --enable-libfribidi --enable-libass --enable-libvmaf --enable-libfreetype --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libvorbis --enable-libopus --enable-libtheora --enable-libvidstab --enable-libvo-amrwbenc --enable-libvpx --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libdav1d --enable-libxvid --enable-libzvbi --enable-libzimg
libavutil 58. 2.100 / 58. 2.100
libavcodec 60. 3.100 / 60. 3.100
libavformat 60. 3.100 / 60. 3.100
libavdevice 60. 1.100 / 60. 1.100
libavfilter 9. 3.100 / 9. 3.100
libswscale 7. 1.100 / 7. 1.100
libswresample 4. 10.100 / 4. 10.100
libpostproc 57. 1.100 / 57. 1.100
14.2. 命令合集
14.2.1. mp4转换为mp3
ffmpeg -i 'BLACKPINK - Really.mp4' -vn -ar 44100 -ac 2 -b:a 192k 'BLACKPINK - Really.mp3'
14.2.2. DVD-ISO转换为 matroska 视频格式
在GNOME文件管理窗口选中 BoA_Who’s back 2014 Live Tour_Blu-ray.iso (DVD-ISO)文件,右键选择 “磁盘映像挂载器”,将ISO文件挂载好。
找到挂载目录下的 .m2ts 文件( STREAM 目录下),人工筛选出需要的文件,写入到 m2ts_list.txt 文件。
不是所有 .m2ts 文件都需要,有些是DVD片头或播放菜单
|
echo "file '/run/media/BOA_LIVE_TOUR2014/BDMV/STREAM/00004.m2ts'" > m2ts_list.txt
echo "file '/run/media/BOA_LIVE_TOUR2014/BDMV/STREAM/00005.m2ts'" >> m2ts_list.txt
ffmpeg -f concat -safe 0 -i m2ts_list.txt -vcodec copy -acodec pcm_s24le output.mkv
- 参数解释
-
pcm_s24le-
pcm_bluray音频编码只能用于m2ts文件,mkv文件格式最多支持到pcm_s24le -vcodec copy-
保留视频原始比特率,保持画面质量
m2ts_list.txt-
多输入文件需要使用到清单文件,官方文档 https://trac.ffmpeg.org/wiki/Concatenate
15. Git
15.1. 配置 Git 客户端
git config ……-
项目级设置
git config --global ……-
系统级设置
git config --global core.editor vim-
全局默认编辑器
git config --global user.name "foo"-
全局用户名称
git config --global user.email foo@example.com-
全局Email
git config --global core.quotepath false-
git status 显示中文
$ git config --list core.packedgitlimit=100m core.packedgitwindowsize=100m core.quotepath=false core.compression=9 core.editor=vim user.name=foo user.email=foo@example.com pack.deltacachesize=100m pack.packsizelimit=100m pack.windowmemory=100m pack.threads=1 pack.window=0 commit.template=/home/mk/.gitmessage.txt
15.2. commit 模板
-
设置全局默认编辑器:
git config --global core.editor vim -
设置全局
commit模板:git config --global commit.template ~/.gitmessage.txt -
执行
git commit即可使用commit模板
# Type(<scope>): <subject> # <body> # <footer> # ** TYPES ** # feat (new feature) # fix (bug fix) # docs (changes to documentation) # style (formatting, missing semi colons, etc; no code change) # refactor (refactoring production code) # perf (improves performance) # revert (revert commit) # test (adding missing tests, refactoring tests; no production code change) # chore (updating grunt tasks etc; no production code change) # # ** FOOTERS ** # References #1, #4, and #2. # Fix #1. note this marks the item as accepted in Sprintly # Closes #1 and #2. note this marks the item as accepted in Sprintly # Scope is just the scope of the change. Something like (admin) or (teacher). # Subject should use impertivite tone and say what you did. # The body should go into detail about changes made. # The footer should contain any JIRA (or other tool) issue references or actions. # e.g., # revert: feat(pencil): add 'graphiteWidth' option # This reverts commit 667ecc1654a317a13331b17617d973392f415f02.
15.3. 修改 commit 邮箱
本方法适用于Python 3.5+
15.3.1. 安装依赖
安装Python插件:
pip install git-filter-repo
ls ~/.local/bin/git-filter-repo
设置环境变量:
echo 'export PATH=$PATH:~/.local/bin' >> ~/.bashrc
生效环境变量:
source ~/.bashrc
15.3.2. 更新commit中的邮箱
# 请自行替换以下信息
echo '作者 <新邮箱> <旧邮箱>' > ~/.mailmap
git filter-repo --mailmap ~/.mailmap --force
git push origin master --force
15.4. git status 不显示中文
$ git status
On branch dev
Untracked files:
(use "git add <file>..." to include in what will be committed)
"\346\265\213\350\257\225\344\270\255\346\226\207"
nothing added to commit but untracked files present (use "git add" to track)
git config --global core.quotepath false
$ git status
On branch dev
Untracked files:
(use "git add <file>..." to include in what will be committed)
测试
nothing added to commit but untracked files present (use "git add" to track)
15.5. 修改远程URL为SSH协议地址
$ git remote -v origin https://github.com/USERNAME/REPOSITORY.git (fetch) origin https://github.com/USERNAME/REPOSITORY.git (push)
设置远程仓库: git remote set-url origin git@github.com:USERNAME/OTHERREPOSITORY.git
$ git remote -v origin git@github.com:USERNAME/OTHERREPOSITORY.git (fetch) origin git@github.com:USERNAME/OTHERREPOSITORY.git (push)
15.5.1. 延伸
-
git remote add origin git@github.com:USERNAME/OTHERREPOSITORY.git -
git remote remove origin -
git remote add test git@github.com:USERNAME/OTHERREPOSITORY.git -
git remote remove test
以上命令可以增加和移除远程仓库,一个项目可以同时拥有多个远程仓库。仅需要在推送时,指定远程仓库即可,比如
git push test master
16. GCC
16.1. 常用技巧
我以CentOS6编译安装mosquitto为例。
| CentOS6系统自带的OpenSSL版本太老,需要手动安装新版。 |
mkdir ~/downloads
cd downloads
wget -c https://www.openssl.org/source/openssl-1.1.1d.tar.gz
tar xf openssl-1.1.1d.tar.gz
cd openssl-1.1.1d
./config --prefix=/usr/local/openssl-1.1.1d
make -j4
make install
echo "/usr/local/openssl-1.1.1d/lib/" > /etc/ld.so.conf.d/openssl_1.1.1.conf ldconfig ldconfig -p|grep ssl
mkdir ~/downloads
cd ~/downloads
wget -O mosquitto-1.6.9.tar.gz https://mosquitto.org/files/source/mosquitto-1.6.9.tar.gz
tar xf mosquitto-1.6.9.tar.gz
export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:/usr/local/openssl-1.1.1d/lib/pkgconfig/
cd mosquitto-1.6.9
CFLAGS=`pkg-config --cflags-only-I openssl` LDFLAGS=`pkg-config --libs-only-L openssl` LIBS=`pkg-config --libs-only-l openssl` make
make install prefix=/usr/local/mosquitto-1.6.9
17. Java
17.1. javac、jar和classpath
17.1.1. 运行jar包
java -jar target/gs-spring-boot-0.1.0.jar
17.1.2. 编译运行java
# tree statistics/
statistics/
└── src
├── connections
│ ├── ConnectionPool.class
│ ├── ConnectionPool.java
│ ├── DBManager.java
│ └── PooledConnection.java
├── jdbc
│ └── JDBCOperation.java
├── module
│ ├── CompanyInfo.java
│ ├── Domain.java
│ └── ResourceLog.java
└── statistics
└── Test.java
cd statistics
javac -cp src/:/usr/share/java/postgresql-jdbc-8.4.704.jar -d bin/ src/statistics/Test.java
cd statistics
java -cp ./bin:/usr/share/java/postgresql-jdbc-8.4.704.jar statistics.Test
# tree bin/
bin/
├── connections
│ ├── ConnectionPool.class
│ ├── DBManager.class
│ └── PooledConnection.class
├── jdbc
│ └── JDBCOperation.class
├── module
│ ├── CompanyInfo.class
│ ├── Domain.class
│ └── ResourceLog.class
└── statistics
└── Test.class
17.2. Spring
17.3. SpringBoot
17.3.1. 配置文件官方文档
17.3.2. 运行时指定配置模式(dev/prod/etc)
通过启用不同的配置文件载入指定的配置参数。这种方式非常适合有多种配置的应用,通过特殊的运行时环境指定配置文件。
在SpringBoot中,你可以在 `application.yml ` 所在目录下创建多个 `application-{profile}.yml ` 文件达到目的。指定的配置文件会覆盖默认设置。如果指定多个配置文件,最后一个有效。
假如我的应用有两个环境,例如 生产环境 和 开发环境。这时,只需要创建两个配置文件即可:
logging:
file: logs/application-debug.log
pattern:
console: "%d %-5level %logger : %msg%n"
file: "%d %-5level [%thread] %logger : %msg%n"
level:
org.springframework.web: ERROR
com.howtodoinjava: DEBUG
org.hibernate: ERROR
logging:
file: logs/application-debug.log
pattern:
console: "%d %-5level %logger : %msg%n"
file: "%d %-5level [%thread] %logger : %msg%n"
level:
org.springframework.web: ERROR
com.howtodoinjava: INFO
org.hibernate: ERROR
在运行时增加参数 spring.profiles.active,可以指定启用的配置文件。
$ java -jar -Dspring.profiles.active=prod spring-boot-demo.jar
17.3.3. 开启调试日志
java -jar -Ddebug=true target/server-1.0-SNAPSHOT.jar
java -jar -Dtrace=true target/server-1.0-SNAPSHOT.jar
17.3.4. 开启Web访问日志
java -jar -Dserver.tomcat.basedir=tomcat -Dserver.tomcat.accesslog.enabled=true target/server-1.0-SNAPSHOT.jar
18. GitLab
18.1. CentOS7安装配置
- 官方文档
curl -s https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | bash
EXTERNAL_URL="http://192.168.2.8:8282" yum install -y gitlab-ce
It looks like GitLab has not been configured yet; skipping the upgrade script.
*. *.
*** ***
***** *****
.****** *******
******** ********
,,,,,,,,,***********,,,,,,,,,
,,,,,,,,,,,*********,,,,,,,,,,,
.,,,,,,,,,,,*******,,,,,,,,,,,,
,,,,,,,,,*****,,,,,,,,,.
,,,,,,,****,,,,,,
.,,,***,,,,
,*,.
_______ __ __ __
/ ____(_) /_/ / ____ _/ /_
/ / __/ / __/ / / __ `/ __ \
/ /_/ / / /_/ /___/ /_/ / /_/ /
\____/_/\__/_____/\__,_/_.___/
Thank you for installing GitLab!
GitLab was unable to detect a valid hostname for your instance.
Please configure a URL for your GitLab instance by setting `external_url`
configuration in /etc/gitlab/gitlab.rb file.
Then, you can start your GitLab instance by running the following command:
sudo gitlab-ctl reconfigure
For a comprehensive list of configuration options please see the Omnibus GitLab readme
https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/README.md
GitLab now ships with a newer version of PostgreSQL (11.7), but it is not yet
enabled by default. To upgrade, please see:
https://docs.gitlab.com/omnibus/settings/database.html#upgrade-packaged-postgresql-server
Verifying : gitlab-ce-12.9.0-ce.0.el7.x86_64 1/1
Installed:
gitlab-ce.x86_64 0:12.9.0-ce.0.el7
Complete!
重新配置(恢复默认配置):
gitlab-ctl reconfigure
重启服务:
gitlab-ctl restart
安装完毕后,默认访问80端口即可:
默认登录用户 root,密码第一次访问会提示修改。
18.2. CentOS8 安装配置
- 官方文档
18.2.1. 安装依赖
dnf install -y curl policycoreutils openssh-server
# Check if opening the firewall is needed with: systemctl status firewalld
firewall-cmd --permanent --add-service=http
firewall-cmd --permanent --add-service=https
systemctl reload firewalld
dnf install -y postfix
systemctl enable postfix
systemctl start postfix
18.2.2. 安装GitLab
curl -s https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | bash
EXTERNAL_URL="http://0.0.0.0:8000" dnf install -y gitlab-ce
一般情况下,GitLab的CDN下载会比较慢,可以找出RPM包的URL,单独下载。然后,手动 dnf install RPM包名称。
curl -s https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | bash
yumdownloader --urls gitlab-ce
Repository epel is listed more than once in the configuration Extra Packages for Enterprise Linux Modular 8 - x86_64 2.7 kB/s | 10 kB 00:03 Extra Packages for Enterprise Linux Modular 8 - x86_64 28 kB/s | 116 kB 00:04 gitlab_gitlab-ce 77 B/s | 862 B 00:11 gitlab_gitlab-ce-source 100 B/s | 862 B 00:08 https://packages.gitlab.com/gitlab/gitlab-ce/el/8/x86_64/gitlab-ce-12.10.2-ce.0.el8.x86_64.rpm
wget -c https://packages.gitlab.com/gitlab/gitlab-ce/el/8/x86_64/gitlab-ce-12.10.2-ce.0.el8.x86_64.rpm
如果下载慢,可以多次中断。然后,再执行wget下载。也可以使用 axel -n url 多线程下载。
|
EXTERNAL_URL="http://0.0.0.0:8000" dnf install -y gitlab-ce-12.10.2-ce.0.el8.x86_64.rpm
Repository epel is listed more than once in the configuration
Last metadata expiration check: 0:00:44 ago on Sat 02 May 2020 01:42:36 PM CST.
Dependencies resolved.
=================================================================================================
Package Architecture Version Repository Size
=================================================================================================
Installing:
gitlab-ce x86_64 12.10.2-ce.0.el8 @commandline 789 M
Transaction Summary
=================================================================================================
Install 1 Package
Total size: 789 M
Installed size: 1.7 G
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Running scriptlet: gitlab-ce-12.10.2-ce.0.el8.x86_64 1/1
Installing : gitlab-ce-12.10.2-ce.0.el8.x86_64 1/1
Running scriptlet: gitlab-ce-12.10.2-ce.0.el8.x86_64 1/1
It looks like GitLab has not been configured yet; skipping the upgrade script.
*. *.
*** ***
***** *****
.****** *******
******** ********
,,,,,,,,,***********,,,,,,,,,
,,,,,,,,,,,*********,,,,,,,,,,,
.,,,,,,,,,,,*******,,,,,,,,,,,,
,,,,,,,,,*****,,,,,,,,,.
,,,,,,,****,,,,,,
.,,,***,,,,
,*,.
_______ __ __ __
/ ____(_) /_/ / ____ _/ /_
/ / __/ / __/ / / __ `/ __ \
/ /_/ / / /_/ /___/ /_/ / /_/ /
\____/_/\__/_____/\__,_/_.___/
Thank you for installing GitLab!
GitLab was unable to detect a valid hostname for your instance.
Please configure a URL for your GitLab instance by setting `external_url`
configuration in /etc/gitlab/gitlab.rb file.
Then, you can start your GitLab instance by running the following command:
sudo gitlab-ctl reconfigure
For a comprehensive list of configuration options please see the Omnibus GitLab readme
https://gitlab.com/gitlab-org/omnibus-gitlab/blob/master/README.md
Verifying : gitlab-ce-12.10.2-ce.0.el8.x86_64 1/1
Installed:
gitlab-ce-12.10.2-ce.0.el8.x86_64
Complete!
重新配置(恢复默认配置):
gitlab-ctl reconfigure
重启服务:
gitlab-ctl restart
安装完毕后,默认访问80端口即可:
我们上面使用的是 http://0.0.0.0:8000,所以访问地址为:
默认登录用户 root,密码第一次访问会提示修改。
18.3. Nginx反代GitLab
安装GitLab之后,通过单独的Nginx反代,暴露给外网访问。由于Nginx配置和GitLab内部的访问端口不同,为保证功能正常使用,需要修改GitLab配置。
18.3.1. GitLab 设置
# 禁用默认配置
sed -i 's/^external_url /#external_url /g' /etc/gitlab/gitlab.rb
cat << EOF >> /etc/gitlab/gitlab.rb
# 禁止k8s相关模块
gitlab_kas['enable'] = false
# 禁止默认功能设置
gitlab_rails['gitlab_default_projects_features_wiki'] = false
gitlab_rails['gitlab_default_projects_features_builds'] = false
gitlab_rails['gitlab_host'] = 'git.xxx.com'
gitlab_rails['gitlab_port'] = 443
gitlab_rails['gitlab_https'] = true
gitlab_rails['gitlab_ssh_host'] = 'git.xxx.com'
gitlab_rails['gitlab_shell_ssh_port'] = 22
# 禁用自动签发免费HTTPS证书
letsencrypt['enable'] = false
# 禁用签发证书后,需要显式启用Nginx服务
nginx['enable'] = true
# 禁用Nginx的HTTPS配置
nginx['redirect_http_to_https'] = false
nginx['listen_https'] = false
# Nginx端口监听配置
nginx['listen_addresses'] = ['127.0.0.1']
nginx['listen_port'] = 8000
git_data_dirs({
"default" => {
"path" => "/data/gitlab_data"
}
})
EOF
# 重新生成配置并重启
gitlab-ctl reconfigure && gitlab-ctl restart
# 确认Nginx服务状态
ss -antpl|grep 8000
18.3.2. 设置HTTP Clone相关参数
用管理员帐号登录GitLab,进入以下菜单:
Admin Area > Settings > General > Visibility and access controls
找到 "Custom Git clone URL for HTTP(S) ",根据实际情况填写,比如:https://git.xxx.com:2305
18.3.3. Nginx Server配置
server {
listen 2035 ssl http2;
server_name git.xxx.com;
# certs sent to the client in SERVER HELLO are concatenated in ssl_certificate
ssl_certificate /etc/letsencrypt/live/xxx.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/xxx.com/privkey.pem;
ssl_session_timeout 1d;
ssl_session_cache shared:SSL:50m;
ssl_session_tickets off;
# Diffie-Hellman parameter for DHE ciphersuites, recommended 2048 bits
ssl_dhparam /etc/letsencrypt/live/xxx.com/dhparam.pem;
# intermediate configuration. tweak to your needs.
ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3;
ssl_ciphers 'ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDHE-ECDSA-DES-CBC3-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA:!DSS';
ssl_prefer_server_ciphers on;
# HSTS (ngx_http_headers_module is required) (15768000 seconds = 6 months)
add_header Strict-Transport-Security max-age=15768000;
# OCSP Stapling ---
# fetch OCSP records from URL in ssl_certificate and cache them
ssl_stapling on;
ssl_stapling_verify on;
# 替换URL,解决README.md之类无法加载的问题
sub_filter 'http://git.xxx.com' 'https://git.xxx.com';
sub_filter_once off;
sub_filter_last_modified on;
# 替换 text/html application/json HTTP响应包中的内容
sub_filter_types application/json;
location / {
auth_basic "Administrator’s Area";
auth_basic_user_file /etc/nginx/.htpasswd;
# 一旦当前作用域设置proxy_set_header,全局设置即刻失效,注意补全所有需要的Header
# 必须设置,否则新建项目后,会302跳转到http的80端口
proxy_set_header Host git.xxx.com:443;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Proto https;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://127.0.0.1:1034;
}
location ~ ^/\.git/? {
return 404;
}
}
生效Nginx配置:
nginx -t && nginx -s reload
18.3.4. 最后
- 外网GitLab访问地址
- SSH克隆地址
-
ssh://git@git.xxx.com/用户名/项目名称.git
- HTTP克隆地址
19. Redis
19.1. 安装配置
yum install -y redis
systemctl enable redis
systemctl start redis
19.2. 常用命令
19.2.1. 键(key)
set name geek
get name
del name
exists name
# 为给定 key 设置过期时间,以秒计
expire name
# 查找所有符合给定模式( pattern)的 key
keys rts:*
19.2.2. 字符串(String)
# 同时设置一个或多个 key-value 对
mset key1 value1 [key2 value2]
# 获取所有(一个或多个)给定 key 的值
mget key1 [key2]
# 将 key 中储存的数字值增一
incr key
# 将 key 中储存的数字值减一
decr key
# 将 key 所储存的值加上给定的增量值(increment)
incrby key increment
# key 所储存的值减去给定的减量值(decrement)
decrby key decrement
19.2.3. 列表(List)
# 将一个或多个值插入到列表头部
lpush key_list value1 value2
lpush key_list value3
# 获取列表长度
llen key_list
LRANGE runoobkey 0 10
# 移出并获取列表的第一个元素
lpop key_list
19.2.4. 集合(Set)
Redis 的 Set 是 String 类型的无序集合。集合成员是唯一的,这就意味着集合中不能出现重复的数据。
Redis 中集合是通过哈希表实现的,所以添加,删除,查找的复杂度都是 O(1)。
# 向集合添加一个或多个成员
sadd key_set value1
# 获取集合的成员数
scard key
# 返回集合中的所有成员
smembers key
19.2.5. 有序集合(sorted set)
Redis 有序集合和集合一样也是string类型元素的集合,且不允许重复的成员。
ZADD leaderboard:455 100 user:1
ZADD leaderboard:455 75 user:2
ZADD leaderboard:455 101 user:3
ZADD leaderboard:455 15 user:4
ZADD leaderboard:455 275 user:2
ZRANGE leaderboard:455 0 2 REV WITHSCORES
ZREVRANK leaderboard:455 user:2
19.2.6. 哈希表(Hash)
增加字段或设置字段
向哈希表中增加字段或设置字段值:
hset area_info name "四川"
向哈希表中增加多个字段或设置多个字段值:
hmset area_info name "四川" level 2
获取字段
获取哈希表中指定键的单个字段和值:
hget area_info name
获取所有给定字段的值:
hmget area_info name level
获取哈希表中指定键的所有字段和值:
hgetall area_info
字段是否存在
查看哈希表的指定字段是否存在:
hexists area_info name
删除字段
删除一个或多个哈希表字段:
hdel area_info name level
19.2.7. 删除键
删除一个或多个键:
del area_info_a area_info_b
删除模糊匹配的键:
redis-cli --scan --pattern users:* | xargs redis-cli unlink
20. PHP
20.1. CentOS6使用Yum安装PHP5.3
yum install -y mysql mysql-server httpd php-bcmath php-cli php-common php-gd php-imap php-intl php-mbstring php-mysql php-pdo php-pear php-tidy php-xml php-xmlrpc php-fpm
20.2. CentOS6源码安装PHP5.5
mkdir ~/install
cd ~/install
wget -c http://mirrors.opencas.cn/epel/epel-release-latest-6.noarch.rpm
wget -c http://cn2.php.net/get/php-5.3.29.tar.bz2/from/this/mirror -O php-5.3.29.tar.bz2
yum install -y epel-release
yum install -y gcc zlib-devel freetype-devel gd-devel libmcrypt-devel curl-devel libtool libxml2-devel gdbm-devel libjpeg-devel libpng-devel curl-devel libc-client libtidy pcre-devel openssl-devel net-snmp net-snmp-devel net-snmp-utils net-snmp-libs libevent-devel mhash-devel patch libtool-ltdl-devel mysql-devel mysql-server
#CentOS7
#yum install -y mariadb mariadb-devel mariadb-libs mariadb-server lbzip2
cd ~/install
tar xf php-5.3.29.tar.bz2
cd php-5.3.29
#Nginx+php-fpm
./configure --prefix=/usr/local/php-5.3.29 --with-libdir=lib64 --with-png-dir --with-jpeg-dir --with-gd --with-freetype-dir --with-mcrypt --with-config-file-path=/etc --disable-debug --enable-sockets --enable-calendar --enable-ftp --enable-gd-native-ttf --with-gdbm --with-gettext --with-iconv --enable-mbstring --with-openssl --with-curl --enable-bcmath --enable-exif --with-pdo-mysql --with-snmp --with-mysqli --enable-zip --with-zlib --with-mhash --enable-xml --with-xmlrpc --with-mysql --enable-fpm --with-fpm-user=nginx --with-fpm-group=nginx
make && make install
cp php.ini-production /usr/local/php/etc/php.ini
cp /usr/local/php/etc/php-fpm.conf.default /usr/local/php/etc/php-fpm.conf
vim +62 /usr/local/php/etc/php-fpm.conf
Unix user of processes
<value name="user">apache</value>
Unix group of processes
<value name="group">apache</value>
mkdir /var/log/php
ln -s /usr/local/php/etc/php.ini /etc/
ln -s /usr/local/php/etc/php-fpm.conf /etc/
/etc/init.d/php-fpm start
20.3. CentOS7 源码安装PHP7-FPM
mkdir ~/install
cd ~/install
wget -c http://php.net/get/php-7.3.7.tar.bz2/from/this/mirror -O php-7.3.7.tar.bz2
wget -c https://libzip.org/download/libzip-1.1.2.tar.gz
wget -c https://www.gnupg.org/ftp/gcrypt/gnutls/v3.5/gnutls-3.5.19.tar.xz
wget -c https://ftp.gnu.org/gnu/nettle/nettle-3.4.tar.gz
tar xf nettle-3.4.tar.gz
cd nettle-3.4/
./configure --prefix=/usr/local/nettle-3.4
make && make install
cd ..
tar xf gnutls-3.5.19.tar.xz
cd gnutls-3.5.19/
export PKG_CONFIG_PATH=/usr/local/nettle-3.4/lib64/pkgconfig/
./configure --prefix=/usr/local/gnutls-3.5.19
make && make install
cd ..
tar xf libzip-1.1.2.tar.gz
cd libzip-1.1.2/
export PKG_CONFIG_PATH=/usr/local/libzip-1.1.2/lib/pkgconfig/
./configure --prefix=/usr/local/libzip-1.1.2
make && make install
yum install -y gcc zlib-devel freetype-devel gd-devel libmcrypt-devel curl-devel libtool libxml2-devel gdbm-devel libjpeg-devel libpng-devel curl-devel libc-client libtidy pcre-devel openssl-devel net-snmp net-snmp-devel net-snmp-utils net-snmp-libs libevent-devel mhash-devel patch mysql-devel libzip-devel systemd-devel
cd ~/install
tar xf php-7.3.7.tar.bz2
cd php-7.3.7
./configure --prefix=/usr/local/php-7.3.7 --with-config-file-path=/usr/local/php-7.3.7/etc --with-config-file-scan-dir=/usr/local/php-7.3.7/etc --with-libdir=lib64 --with-png-dir --with-jpeg-dir --with-gd --with-freetype-dir --with-mcrypt --with-config-file-path=/etc --disable-debug --enable-sockets --enable-calendar --enable-ftp --enable-gd-native-ttf --with-gdbm --with-gettext --with-iconv --enable-mbstring --with-openssl --with-curl --enable-bcmath --enable-exif --with-pdo-mysql --with-snmp --with-mysqli --enable-zip --with-zlib --with-mhash --enable-xml --with-xmlrpc --enable-fpm --with-fpm-user=nginx --with-fpm-group=nginx --with-fpm-systemd
make && make install
ln -s /usr/local/php-7.3.7/ /usr/local/php
cp php.ini-production /usr/local/php/etc/php.ini
cp /usr/local/php/etc/php-fpm.conf.default /usr/local/php/etc/php-fpm.conf
cat << 'EOF' > /etc/systemd/system/php7-fpm.service
[Unit]
Description=The PHP FastCGI Process Manager
After=network.target
[Service]
Type=notify
PIDFile=/usr/local/php/var/run/php-fpm.pid
ExecStart=/usr/local/php/sbin/php-fpm --nodaemonize --fpm-config /usr/local/php/etc/php-fpm.conf
ExecReload=/bin/kill -USR2 $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target
EOF
cp /usr/local/php-7.3.7/etc/php-fpm.d/www.conf.default /usr/local/php-7.3.7/etc/php-fpm.d/www.conf
systemctl enable php7-fpm
systemctl start php7-fpm
systemctl status php7-fpm
20.4. PHP5.3使用Pecl安装扩展
配置PECL:
mkdir -p /usr/local/php-5.3.29/modules \
/usr/local/php-5.3.29/share/doc/pear \
/usr/local/php-5.3.29/share/pear \
/usr/local/php-5.3.29/etc/pear \
/usr/local/php-5.3.29/share/pear-data \
/usr/local/php-5.3.29/share/tests/pear \
/usr/local/php-5.3.29/etc/pearkeys
/usr/local/php-5.3.29/bin/pecl config-set bin_dir /usr/local/php-5.3.29/bin
/usr/local/php-5.3.29/bin/pecl config-set ext_dir /usr/local/php-5.3.29/modules
/usr/local/php-5.3.29/bin/pecl config-set doc_dir /usr/local/php-5.3.29/share/doc/pear
/usr/local/php-5.3.29/bin/pecl config-set php_dir /usr/local/php-5.3.29/share/pear
/usr/local/php-5.3.29/bin/pecl config-set cfg_dir /usr/local/php-5.3.29/etc/pear
/usr/local/php-5.3.29/bin/pecl config-set data_dir /usr/local/php-5.3.29/share/pear-data/
/usr/local/php-5.3.29/bin/pecl config-set php_bin /usr/local/php-5.3.29/bin/php
/usr/local/php-5.3.29/bin/pecl config-set test_dir /usr/local/php-5.3.29/share/tests/pear/
/usr/local/php-5.3.29/bin/pecl config-set sig_keydir /usr/local/php-5.3.29/etc/pearkeys
/usr/local/php-5.3.29/bin/pecl config-set Filename /usr/local/php-5.3.29/etc/pear.conf
/usr/local/php-5.3.29/bin/pecl config-set php_ini /usr/local/php-5.3.29/etc/php.ini
# 查看所有PECL配置
# /usr/local/php-5.3.29/bin/pecl config-show
Configuration (channel pecl.php.net):
=====================================
Auto-discover new Channels auto_discover <not set>
Default Channel default_channel pecl.php.net
HTTP Proxy Server Address http_proxy <not set>
PEAR server [DEPRECATED] master_server pear.php.net
Default Channel Mirror preferred_mirror pecl.php.net
Remote Configuration File remote_config <not set>
PEAR executables directory bin_dir /usr/local/php-5.3.29/bin
PEAR documentation directory doc_dir /usr/local/php-5.3.29/share/doc/pear
PHP extension directory ext_dir /usr/local/php-5.3.29/modules
PEAR directory php_dir /usr/local/php-5.3.29/share/pear
PEAR Installer cache directory cache_dir /tmp/pear/cache
PEAR configuration file cfg_dir /usr/local/php-5.3.29/etc/pear
directory
PEAR data directory data_dir /usr/local/php-5.3.29/share/pear-data/
PEAR Installer download download_dir /tmp/pear/download
directory
PHP CLI/CGI binary php_bin /usr/local/php-5.3.29/bin/php
php.ini location php_ini /usr/local/php-5.3.29/etc/php.ini
--program-prefix passed to php_prefix <not set>
PHP's ./configure
--program-suffix passed to php_suffix <not set>
PHP's ./configure
PEAR Installer temp directory temp_dir /tmp/pear/temp
PEAR test directory test_dir /usr/local/php-5.3.29/share/tests/pear/
PEAR www files directory www_dir /usr/local/php-5.3.29/lib/php/htdocs
Cache TimeToLive cache_ttl 3600
Preferred Package State preferred_state stable
Unix file mask umask 22
Debug Log Level verbose 1
PEAR password (for password <not set>
maintainers)
Signature Handling Program sig_bin /usr/bin/gpg
Signature Key Directory sig_keydir /usr/local/php-5.3.29/etc/pearkeys
Signature Key Id sig_keyid <not set>
Package Signature Type sig_type gpg
PEAR username (for username <not set>
maintainers)
User Configuration File Filename ~/.pearrc
System Configuration File Filename /usr/local/php-5.3.29/etc/pear.conf
如果不使用pecl config-set配置bin_dir,会提示找不到phpise命令。
/usr/local/php-5.3.29/bin/pecl install ZendOpcache
echo 'zend_extension=/usr/local/php-5.3.29/lib/php/extensions/no-debug-non-zts-20090626/opcache.so' >> /usr/local/php-5.3.29/etc/php.ini
# 提示输入libmemcached目录时,输入 “/usr”
# memcached-2.2.0 表示老版本,不带版本号表示最新版。最新版需要php7,php5.3只能用2.2.0
yum install -y libmemcached-devel && /usr/local/php-5.3.29/bin/pecl install memcached-2.2.0
echo 'extension=/usr/local/php-5.3.29/lib/php/extensions/no-debug-non-zts-20090626/memcached.so' >> /usr/local/php-5.3.29/etc/php.ini
20.5. PHP5.3 安装 ZendGuardLoader
wget -c http://downloads.zend.com/guard/5.5.0/ZendGuardLoader-php-5.3-linux-glibc23-x86_64.tar.gz
tar xf ZendGuardLoader-php-5.3-linux-glibc23-x86_64.tar.gz
cd ZendGuardLoader-php-5.3-linux-glibc23-x86_64
mv ZendGuardLoader-php-5.3-linux-glibc23-x86_64/php-5.3.x/ZendGuardLoader.so /usr/local/php-5.3.29/lib/php/extensions/no-debug-non-zts-20090626
echo 'zend_extension=/usr/local/php-5.3.29/lib/php/extensions/no-debug-non-zts-20090626/ZendGuardLoader.so' >> /usr/local/php-5.3.29/etc/php.ini
20.6. Ubuntu18.04源码安装PHP7-FPM
sudo apt-get install aptitude
sudo aptitude install gcc zlib1g-dev libfreetype6-dev libgd-dev libmcrypt-dev libcurl4-openssl-dev libtool libxml2-dev libgdbm-dev libjpeg-dev libpng-dev libc-client2007e libtidy5 libpcre3-dev libssl-dev libevent-dev libmhash-dev patch libltdl-dev libmysqlclient-dev libmysqld-dev mysql-server apache2-dev libsystemd-dev libsnmp-dev libzip-dev
./configure --prefix=/usr/local/php-7.3.7 --with-config-file-path=/usr/local/php-7.3.7/etc --with-config-file-scan-dir=/usr/local/php-7.3.7/etc --with-libdir=lib64 --with-png-dir --with-jpeg-dir --with-gd --with-freetype-dir --with-config-file-path=/etc --disable-debug --enable-sockets --enable-calendar --enable-ftp --with-gdbm --with-gettext --with-iconv --enable-mbstring --with-openssl --with-curl --enable-bcmath --enable-exif --with-pdo-mysql --with-snmp --with-mysqli --enable-zip --with-zlib --with-mhash --enable-xml --with-xmlrpc --enable-fpm --with-fpm-systemd --with-fpm-user=www-data --with-fpm-group=www-data
ake && make install
ln -s /usr/local/php-7.3.7/ /usr/local/php
cp php.ini-production /usr/local/php/etc/php.ini
cp /usr/local/php/etc/php-fpm.conf.default /usr/local/php/etc/php-fpm.conf
cat << 'EOF' > /etc/systemd/system/php7-fpm.service
[Unit]
Description=The PHP FastCGI Process Manager
After=network.target
[Service]
Type=notify
PIDFile=/usr/local/php/var/run/php-fpm.pid
ExecStart=/usr/local/php/sbin/php-fpm --nodaemonize --fpm-config /usr/local/php/etc/php-fpm.conf
ExecReload=/bin/kill -USR2 $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target
EOF
cp /usr/local/php-7.3.7/etc/php-fpm.d/www.conf.default /usr/local/php-7.3.7/etc/php-fpm.d/www.conf
systemctl enable php7-fpm
systemctl start php7-fpm
systemctl status php7-fpm
21. Python
21.1. CentOS6 Install Python312
不支持_dbm、tkinter模块
21.1.1. 安装YUM依赖
yum install -y libffi-devel bzip2-devel readline-devel ncurses-devel gdbm-devel tkinter tcl-devel tcl libuuid-devel zlib-devel zlib xz-devel xz tk-devel tk glibc-devel
21.1.2. 源代码安装
环境准备
mkdir -p ~/downloads
yum install -y gcc gcc-c++ make
编译OpenSSL
CentOS6 YUM源中的OpenSSL版本太老,需要单独安装较新版本。
否则,编译Python3时会出现错误:
Could not build the ssl module!
Python requires an OpenSSL 1.0.2 or 1.1 compatible libssl with X509_VERIFY_PARAM_set1_host().
LibreSSL 2.6.4 and earlier do not provide the necessary APIs, https://github.com/libressl-portable/portable/issues/381
cd ~/downloads
wget https://www.openssl.org/source/old/1.1.1/openssl-1.1.1n.tar.gz -O openssl-1.1.1n.tar.gz
tar xf openssl-1.1.1n.tar.gz
cd openssl-1.1.1n
./config --prefix=/usr/local/openssl-1.1.1n -fPIC
make
make install
echo '/usr/local/openssl-1.1.1n/lib' > /etc/ld.so.conf.d/openssl-1.1.1n.conf
ldconfig
ldconfig -p|grep openssl-1.1.1n
编译SQLite
同样的,YUM源中的SQLite太老~
cd ~/downloads
wget https://www.sqlite.org/2020/sqlite-autoconf-3330000.tar.gz -O sqlite-autoconf-3330000.tar.gz
tar xf sqlite-autoconf-3330000.tar.gz
cd sqlite-autoconf-3330000
./configure --prefix=/usr/local/sqlite-3.33
make
make install
echo '/usr/local/sqlite-3.33/lib' > /etc/ld.so.conf.d/sqlite-3.33.conf
ldconfig
ldconfig -p|grep libsqlite3.so
编译Python
cd ~/downloads
wget https://www.python.org/ftp/python/3.12.2/Python-3.12.2.tar.xz -O Python-3.12.2.tar.xz
tar xf Python-3.12.2.tar.xz
cd Python-3.12.2
CFLAGS='-I/usr/local/sqlite-3.33/include' \
LDFLAGS='-L/usr/local/sqlite-3.33/lib' \
./configure --prefix=/usr/local/python-3.12.2 \
--enable-optimizations \
--with-openssl=/usr/local/openssl-1.1.1n \
--with-ssl-default-suites=openssl \
--with-ensurepip \
--enable-loadable-sqlite-extensions
make
make install
21.1.3. 压缩包安装
解压OpenSSL
wget https://dl.cdgeekcamp.com/centos/6/openssl/1.1.1n/openssl-1.1.1n-1.el6.x86_64.tar.gz -O openssl-1.1.1n-1.el6.x86_64.tar.gz
tar xf openssl-1.1.1n-1.el6.x86_64.tar.gz
rm -rf /usr/local/openssl-1.1.1n
mv openssl-1.1.1n/ /usr/local/openssl-1.1.1n
echo '/usr/local/openssl-1.1.1n/lib' > /etc/ld.so.conf.d/openssl-1.1.1n.conf
ldconfig
ldconfig -p|grep openssl-1.1.1n
解压SQLite
wget https://dl.cdgeekcamp.com/centos/6/sqlite/3.33/sqlite-3.33-1.el6.x86_64.tar.gz -O sqlite-3.33-1.el6.x86_64.tar.gz
tar xf sqlite-3.33-1.el6.x86_64.tar.gz
rm -rf /usr/local/sqlite-3.33
mv sqlite-3.33/ /usr/local/sqlite-3.33
echo '/usr/local/sqlite-3.33/lib' > /etc/ld.so.conf.d/sqlite-3.33.conf
ldconfig
ldconfig -p|grep libsqlite3.so
解压Python3
wget https://dl.cdgeekcamp.com/centos/6/python/3/python-3.12.2-1.el6.x86_64.tar.gz -O python-3.12.2-1.el6.x86_64.tar.gz
tar xf python-3.12.2-1.el6.x86_64.tar.gz
rm -rf /usr/local/python-3.12.2
mv python-3.12.2 /usr/local/python-3.12.2
21.1.4. 设置软链接
test -L /usr/local/python3 || ln -s python-3.12.2 /usr/local/python3
test -L /usr/local/python3/bin/pip312 || ln -s pip3 /usr/local/python3/bin/pip312
test -L /usr/local/python3/bin/python312 || ln -s python3 /usr/local/python3/bin/python312
21.1.5. 设置环境变量
通过 pip312 安装的命令包(比如,rain-shell-scripter),命令被安装在 /usr/local/python3/bin 目录下。
为方便,增加环境变量:
echo "export PATH=/usr/local/python3/bin:\${PATH}" > /etc/profile.d/python3.sh
生效环境变量配置,可以退出终端,重新登录即可。
或者,在当前终端执行:
source /etc/profile
确认环境变量:
echo $PATH|sed 's/:/\n/g'|sort -u|grep python
21.1.6. 设置PIP
pip312 install --upgrade -i https://pypi.tuna.tsinghua.edu.cn/simple pip
pip312 config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.2. CentOS7 Install Python312
不支持tkinter模块
21.2.1. 安装YUM依赖
yum install -y libffi-devel bzip2-devel readline-devel ncurses-devel gdbm-devel tkinter tcl-devel tcl libuuid-devel zlib-devel zlib xz-devel xz tk-devel tk openssl-devel sqlite-devel glibc-devel
21.2.2. 源代码安装
环境准备
mkdir -p ~/downloads
yum install -y gcc gcc-c++ make
编译OpenSSL
CentOS YUM源中的OpenSSL版本太老,需要单独安装较新版本。
cd ~/downloads
wget https://www.openssl.org/source/old/1.1.1/openssl-1.1.1n.tar.gz -O openssl-1.1.1n.tar.gz
tar xf openssl-1.1.1n.tar.gz
cd openssl-1.1.1n
./config --prefix=/usr/local/openssl-1.1.1n -fPIC
make
make install
echo '/usr/local/openssl-1.1.1n/lib' > /etc/ld.so.conf.d/openssl-1.1.1n.conf
ldconfig
ldconfig -p|grep openssl-1.1.1n
编译Python
cd ~/downloads
wget https://www.python.org/ftp/python/3.12.2/Python-3.12.2.tar.xz -O Python-3.12.2.tar.xz
tar xf Python-3.12.2.tar.xz
cd Python-3.12.2
./configure --prefix=/usr/local/python-3.12.2 \
--enable-optimizations \
--with-openssl=/usr/local/openssl-1.1.1n \
--with-ssl-default-suites=openssl \
--with-ensurepip \
--enable-loadable-sqlite-extensions
make
make install
21.2.3. 压缩包安装
解压OpenSSL
wget https://dl.cdgeekcamp.com/centos/7/openssl/1.1.1n/openssl-1.1.1n-1.el7.x86_64.tar.gz -O openssl-1.1.1n-1.el7.x86_64.tar.gz
tar xf openssl-1.1.1n-1.el7.x86_64.tar.gz
rm -rf /usr/local/openssl-1.1.1n
mv openssl-1.1.1n/ /usr/local/openssl-1.1.1n
echo '/usr/local/openssl-1.1.1n/lib' > /etc/ld.so.conf.d/openssl-1.1.1n.conf
ldconfig
ldconfig -p|grep openssl-1.1.1n
解压Python3
wget https://dl.cdgeekcamp.com/centos/7/python/3/python-3.12.2-1.el7.x86_64.tar.gz -O python-3.12.2-1.el7.x86_64.tar.gz
tar xf python-3.12.2-1.el7.x86_64.tar.gz
rm -rf /usr/local/python-3.12.2
mv python-3.12.2 /usr/local/python-3.12.2
21.2.4. 设置Python
test -L /usr/local/python3 || ln -s python-3.12.2 /usr/local/python3
test -L /usr/local/python3/bin/pip312 || ln -s pip3 /usr/local/python3/bin/pip312
test -L /usr/local/python3/bin/python312 || ln -s python3 /usr/local/python3/bin/python312
echo "export PATH=/usr/local/python3/bin:\${PATH}" > /etc/profile.d/python3.sh
source /etc/profile
pip312 install --upgrade -i https://pypi.tuna.tsinghua.edu.cn/simple pip
pip312 config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.3. CentOS8 Install Python312
支持tkinter模块
21.3.1. 安装YUM依赖
dnf install -y dnf-plugins-core
# for libnsl2-devel
dnf config-manager --set-enabled powertools
dnf install -y libnsl2-devel
dnf install -y libffi-devel bzip2-devel readline-devel ncurses-devel gdbm-devel tcl-devel tcl libuuid-devel zlib-devel zlib xz-devel xz tk-devel tk openssl-devel sqlite-devel glibc-devel
21.3.2. 源代码安装
mkdir -p ~/downloads
dnf install -y gcc gcc-c++ make
cd ~/downloads
wget https://www.python.org/ftp/python/3.12.2/Python-3.12.2.tar.xz -O Python-3.12.2.tar.xz
tar xf Python-3.12.2.tar.xz
cd Python-3.12.2
./configure --prefix=/usr/local/python-3.12.2 \
--enable-optimizations \
--with-ensurepip \
--enable-loadable-sqlite-extensions
make
make install
21.3.3. 压缩包安装
wget https://dl.cdgeekcamp.com/centos/8/python/3/python-3.12.2-1.el8.x86_64.tar.gz -O python-3.12.2-1.el8.x86_64.tar.gz
tar xf python-3.12.2-1.el8.x86_64.tar.gz
rm -rf /usr/local/python-3.12.2
mv python-3.12.2 /usr/local/python-3.12.2
21.3.4. 设置Python
test -L /usr/local/python3 || ln -s python-3.12.2 /usr/local/python3
test -L /usr/local/python3/bin/pip312 || ln -s pip3 /usr/local/python3/bin/pip312
test -L /usr/local/python3/bin/python312 || ln -s python3 /usr/local/python3/bin/python312
echo "export PATH=/usr/local/python3/bin:\${PATH}" > /etc/profile.d/python3.sh
source /etc/profile
pip312 install --upgrade -i https://pypi.tuna.tsinghua.edu.cn/simple pip
pip312 config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.4. CentOS9 Install Python312
支持tkinter模块
21.4.1. 安装YUM依赖
dnf install -y dnf-plugins-core
# for libnsl2-devel and gdbm-devel
dnf config-manager --set-enabled crb
dnf install -y gdbm-devel libnsl2-devel
dnf install -y libffi-devel bzip2-devel readline-devel ncurses-devel tcl-devel tcl libuuid-devel zlib-devel zlib xz-devel xz tk-devel tk openssl-devel sqlite-devel
21.4.2. 源代码安装
mkdir -p ~/downloads
dnf install -y gcc gcc-c++ make
cd ~/downloads
wget https://www.python.org/ftp/python/3.12.2/Python-3.12.2.tar.xz -O Python-3.12.2.tar.xz
tar xf Python-3.12.2.tar.xz
cd Python-3.12.2
./configure --prefix=/usr/local/python-3.12.2 \
--enable-optimizations \
--with-ensurepip \
--enable-loadable-sqlite-extensions
make
make install
21.4.3. 压缩包安装
wget https://dl.cdgeekcamp.com/centos/9/python/3/python-3.12.2-1.el9.x86_64.tar.gz -O python-3.12.2-1.el9.x86_64.tar.gz
tar xf python-3.12.2-1.el9.x86_64.tar.gz
rm -rf /usr/local/python-3.12.2
mv python-3.12.2 /usr/local/python-3.12.2
21.4.4. 设置Python
test -L /usr/local/python3 || ln -s python-3.12.2 /usr/local/python3
test -L /usr/local/python3/bin/pip312 || ln -s pip3 /usr/local/python3/bin/pip312
test -L /usr/local/python3/bin/python312 || ln -s python3 /usr/local/python3/bin/python312
echo "export PATH=/usr/local/python3/bin:\${PATH}" > /etc/profile.d/python3.sh
source /etc/profile
pip312 install --upgrade -i https://pypi.tuna.tsinghua.edu.cn/simple pip
pip312 config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.5. Ubuntu Install Python312
支持tkinter模块
21.5.1. 安装DEB依赖
apt install -y libssl-dev libffi-dev zlib1g-dev tk-dev libsqlite3-dev libbz2-dev ncurses-dev liblzma-dev uuid-dev libreadline-dev libgdbm-dev
apt install -y libgdbm-compat-dev
21.5.2. 编译安装
环境准备
mkdir -p ~/downloads
apt install -y gcc make
16.04/18.04系统创建tk-dev包的pkg-config配置文件,解决 _tkinter模块无法安装问题:
mkdir -p ~/downloads/pkgconfig
tk_version=$(dpkg -s tk-dev|grep Version)
cat << EOF > ~/downloads/pkgconfig/tk.pc
# tk pkg-config source file
prefix=/usr
exec_prefix=/usr
libdir=/usr/lib/x86_64-linux-gnu
includedir=/usr/include/tcl8.6
Name: The Tk Toolkit
Description: Tk is a cross-platform graphical user interface toolkit, the standard GUI not only for Tcl, but for many other dynamic languages as well.
URL: https://www.tcl-lang.org/
${tk_version}
Requires: tcl >= 8.6
Libs: -L\${libdir} -ltk8.6 -ltkstub8.6
Libs.private: -lXft -lfontconfig -lfreetype -lfontconfig -lX11 -lXss -lXext
Cflags: -I\${includedir}
EOF
tcl_version=$(dpkg -s tcl-dev|grep Version)
cat << EOF > ~/downloads/pkgconfig/tcl.pc
# tcl pkg-config source file
prefix=/usr
exec_prefix=/usr
libdir=/usr/lib/x86_64-linux-gnu
includedir=/usr/include/tcl8.6
Name: Tool Command Language
Description: Tcl is a powerful, easy-to-learn dynamic programming language, suitable for a wide range of uses.
URL: https://www.tcl-tk.org/
${tcl_version}
Requires.private: zlib >= 1.2.x
Libs: -L\${libdir} -ltcl8.6 -ltclstub8.6
Libs.private: -ldl -lz -lpthread -lm
Cflags: -I\${includedir}
EOF
export PKG_CONFIG_PATH=$PKG_CONFIG_PATH:~/downloads/pkgconfig
编译Python
cd ~/downloads
wget https://www.python.org/ftp/python/3.12.2/Python-3.12.2.tar.xz -O Python-3.12.2.tar.xz
tar xf Python-3.12.2.tar.xz
cd Python-3.12.2
./configure --prefix=/usr/local/python-3.12.2 \
--enable-optimizations \
--with-openssl=/usr \
--with-ssl-default-suites=openssl \
--with-ensurepip \
--enable-loadable-sqlite-extensions
make
make install
21.5.3. 压缩包安装
# 可选一
wget https://dl.cdgeekcamp.com/ubuntu/16.04/openssl-1.1.1n-1~ubuntu16.04_amd64.tar.gz -O openssl-1.1.1n-1~ubuntu16.04_amd64.tar.gz
tar xf openssl-1.1.1n-1~ubuntu16.04_amd64.tar.gz
rm -rf /usr/local/openssl-1.1.1n
mv openssl-1.1.1n/ /usr/local/openssl-1.1.1n
echo '/usr/local/openssl-1.1.1n/lib' > /etc/ld.so.conf.d/openssl-1.1.1n.conf
ldconfig
ldconfig -p|grep openssl-1.1.1n
wget https://dl.cdgeekcamp.com/ubuntu/16.04/python-3.12.2-1~ubuntu16.04_amd64.tar.gz -O python-3.12.2-1~ubuntu16.04_amd64.tar.gz
# 可选二
wget https://dl.cdgeekcamp.com/ubuntu/18.04/python-3.12.2-1~ubuntu18.04_amd64.tar.gz -O python-3.12.2-1~ubuntu18.04_amd64.tar.gz
# 可选三
wget https://dl.cdgeekcamp.com/ubuntu/22.04/python-3.12.2-1~ubuntu22.04_amd64.tar.gz -O python-3.12.2-1~ubuntu22.04_amd64.tar.gz
tar xf python-3.12.2-1~ubuntu*04_amd64.tar.gz
rm -rf /usr/local/python-3.12.2
mv python-3.12.2 /usr/local/python-3.12.2
21.5.4. 设置Python
test -L /usr/local/python3 || ln -s python-3.12.2 /usr/local/python3
test -L /usr/local/python3/bin/pip312 || ln -s pip3 /usr/local/python3/bin/pip312
test -L /usr/local/python3/bin/python312 || ln -s python3 /usr/local/python3/bin/python312
echo "export PATH=/usr/local/python3/bin:\${PATH}" > /etc/profile.d/python3.sh
source /etc/profile
pip312 install --upgrade -i https://pypi.tuna.tsinghua.edu.cn/simple pip
pip312 config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.6. PIP常用设置
21.6.1. 设置PIP国内镜像
临时使用
pip install -i https://pypi.tuna.tsinghua.edu.cn/simple 包名称
|
simple 不能少, 是 https 而不是 http |
设为默认
pip install -i https://pypi.tuna.tsinghua.edu.cn/simple pip -U
|
手动升级
|
pip config set global.index-url https://pypi.tuna.tsinghua.edu.cn/simple
21.6.2. 常用设置
# 允许在venv以外对安装包、卸载包
pip config set global.break-system-packages true
# 安装包时,不使用隔离模式。正常情况下,建议使用 `pip install --no-build-isolation xxx` 方式
pip config set global.no-build-isolation true
21.7. 上传 PyPI
官方文档:
21.7.1. 配置文件
[distutils]
index-servers=
pypi
testpypi
[pypi]
username: <用户名>
password: <密码>
[testpypi]
repository: https://test.pypi.org/legacy/
username: <用户名>
password: <密码>
21.7.2. 打包
python3 -m pip install -U setuptools wheel
python3 setup.py bdist_wheel
dist/ example_pkg_YOUR_USERNAME_HERE-0.0.1-py3-none-any.whl example_pkg_YOUR_USERNAME_HERE-0.0.1.tar.gz
21.7.3. 测试上传
python3 -m pip install -U twine
twine upload --repository-url https://test.pypi.org/legacy/ dist/*
或者
twine upload --config-file ~/.pypirc -r testpypi dist/*
python3 -m pip install -i https://test.pypi.org/simple/ --no-deps example-pkg-YOUR-USERNAME-HERE
Python 解释器中测试导入包import example_pkg
21.7.4. 上传
twine upload dist/*
如果使用国内镜像源,需要等一两天国内服务器才会同步官方源。
可以临时指定官方源安装:
python3 -m pip install -i https://pypi.org/simple/ example-pkg
21.8. PIP FAQ
21.8.1. 隔离模式引起的包依赖不存在问题
提前安装指定版本的 jmespath:
pip install 'jmespath>=0.9.3,<1.0.0'
pip install alibaba-cloud-python-sdk-v2 时,还是提示找不到 jmespath 模块:
Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simple
Collecting alibaba-cloud-python-sdk-v2 (from -r requirements.txt (line 2))
Downloading https://pypi.tuna.tsinghua.edu.cn/packages/6a/67/0244b84f93699e67af65bd18d79c090f09cb1af7c2f363586440190dd6c6/alibaba-cloud-python-sdk-v2-1.0.6.tar.gz (793 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 793.4/793.4 kB 2.7 MB/s eta 0:00:00
Preparing metadata (setup.py) ... erroress-exited-with-er
error: subprocess-exited-with-error
× python setup.py egg_info did not run successfully.
│ exit code: 1
╰─> [15 lines of output]
Traceback (most recent call last):
File "<string>", line 2, in <module>
File "<pip-setuptools-caller>", line 34, in <module>
File "/tmp/pip-install-800r4u6_/alibaba-cloud-python-sdk-v2_e4a92643a9c349fb8482118c5b1dae7e/setup.py", line 19, in <module>
VERSION = __import__("alibabacloud").__version__
^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/tmp/pip-install-800r4u6_/alibaba-cloud-python-sdk-v2_e4a92643a9c349fb8482118c5b1dae7e/alibabacloud/__init__.py", line 20, in <module>
from alibabacloud.client import ClientConfig
File "/tmp/pip-install-800r4u6_/alibaba-cloud-python-sdk-v2_e4a92643a9c349fb8482118c5b1dae7e/alibabacloud/client.py", line 21, in <module>
import alibabacloud.retry.retry_policy as retry_policy
File "/tmp/pip-install-800r4u6_/alibaba-cloud-python-sdk-v2_e4a92643a9c349fb8482118c5b1dae7e/alibabacloud/retry/retry_policy.py", line 15, in <module>
from alibabacloud.retry.retry_condition import *
File "/tmp/pip-install-800r4u6_/alibaba-cloud-python-sdk-v2_e4a92643a9c349fb8482118c5b1dae7e/alibabacloud/retry/retry_condition.py", line 15, in <module>
import jmespath
ModuleNotFoundError: No module named 'jmespath'
[end of output]
note: This error originates from a subprocess, and is likely not a problem with pip.
error: metadata-generation-failed
× Encountered error while generating package metadata.
╰─> See above for output.
note: This is an issue with the package mentioned above, not pip.
hint: See above for details.
确认依赖包的安装和版本无问题后,怀疑 pip 运行在虚拟环境或者隔离环境下,不是本机环境:
$ pip show jmespath
Name: jmespath
Version: 0.10.0
Summary: JSON Matching Expressions
Home-page: https://github.com/jmespath/jmespath.py
Author: James Saryerwinnie
Author-email: js@jamesls.com
License: MIT
Location: /home/lyuqiang/.local/lib/python3.11/site-packages
Requires:
Required-by: alibaba-cloud-python-sdk-v2
$ pip install --help | grep iso
--no-build-isolation Disable isolation when building a modern source
--isolated Run pip in an isolated mode, ignoring
重新带 --no-build-isolation 参数安装解决问题:
pip install --no-build-isolation alibaba-cloud-python-sdk-v2
21.9. Pycharm
21.9.1. Disable and suppress inspections
官方文档:
# noinspection PyAbstractClass # noinspection PyArgumentEqualDefault # noinspection PyArgumentList # noinspection PyAssignmentToLoopOrWithParameter # noinspection PyAsyncCall # noinspection PyAttributeOutsideInit # noinspection PyAugmentAssignment # noinspection PyBroadException # noinspection PyByteLiteral # noinspection PyCallByClass # noinspection PyChainedComparsons # noinspection PyClassHasNoInit # noinspection PyClassicStyleClass # noinspection PyComparisonWithNone # noinspection PyCompatibility # noinspection PyDecorator # noinspection PyDefaultArgument # noinspection PyDictCreation # noinspection PyDictDuplicateKeys # noinspection PyDocstringTypes # noinspection PyExceptClausesOrder # noinspection PyExceptionInheritance # noinspection PyFromFutureImport # noinspection PyGlobalUndefined # noinspection PyIncorrectDocstring # noinspection PyInitNewSignature # noinspection PyInterpreter # noinspection PyListCreation # noinspection PyMandatoryEncoding # noinspection PyMethodFirstArgAssignment # noinspection PyMethodMayBeStatic # noinspection PyMethodOverriding # noinspection PyMethodParameters # noinspection PyMissingConstructor # noinspection PyMissingOrEmptyDocstring # noinspection PyNestedDecorators # noinspection PynonAsciiChar # noinspection PyNoneFunctionAssignment # noinspection PyOldStyleClasses # noinspection PyPackageRequirements # noinspection PyPep8 # noinspection PyPep8Naming # noinspection PyPropertyAccess # noinspection PyPropertyDefinition # noinspection PyProtectedMember # noinspection PyRaisingNewStyleClass # noinspection PyRedeclaration # noinspection PyRedundantParentheses # noinspection PySetFunctionToLiteral # noinspection PySimplifyBooleanCheck # noinspection PySingleQuotedDocstring # noinspection PyStatementEffect # noinspection PyStringException # noinspection PyStringFormat # noinspection PySuperArguments # noinspection PyTestParametrized # noinspection PyTrailingSemicolon # noinspection PyTupleAssignmentBalance # noinspection PyTupleItemAssignment # noinspection PyTypeChecker # noinspection PyUnboundLocalVariable # noinspection PyUnnecessaryBackslash # noinspection PyUnreachableCode # noinspection PyUnresolvedReferences # noinspection PyUnusedLocal # noinspection ReturnValueFromInit
22. Axel
有时候,yum/dnf/wget下载国外软件。一开始速度很快,之后速度降了下去。这个时候用多线程下载可以加速下载。
22.1. 安装
22.1.1. Arch Linux
sudo pacman -S axel
22.1.2. CentOS8
wget https://github.com/axel-download-accelerator/axel/releases/download/v2.17.8/axel-2.17.8.tar.gz -O axel-2.17.8.tar.gz
tar xf axel-2.17.8.tar.gz
cd axel-2.17.8
dnf install -y make gcc openssl-devel autoconf
./configure --prefix=/usr/local/axel-2.17.8
make && make install
ln -s /usr/local/axel-2.17.8/bin/axel /usr/local/bin/axel
22.2. 使用
axel -n 4 https://packages.gitlab.com/gitlab/gitlab-ce/el/8/x86_64/gitlab-ce-12.10.2-ce.0.el8.x86_64.rpm
23. Let’s Encrypt
Let’s Encrypt 由Google、Apple等大公司支持的免费 HTTPS 证书。所有主流浏览器都支持LE证书。
LE证书的可以通过网站验证或DNS验证方式申请,有效期为三个月。三个月后,可以通过系统计划任务自动续签。
23.1. 安装certbot
pip3 install certbot
python_bin_dir=$(pip3 show certbot | grep 'Location:' | cut -d ' ' -f 2)/../../../bin
python_bin_dir=$(realpath ${python_bin_dir})
ln -s ${python_bin_dir}/certbot /usr/local/bin/certbot
23.2. 签发HTTPS证书之DNS签发通配符域名证书
23.2.1. 签发通配符域名HTTPS证书(一)
certbot certonly -d *.xxx.com --manual --preferred-challenges dns --server https://acme-v02.api.letsencrypt.org/directory
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator manual, Installer None
Enter email address (used for urgent renewal and security notices) (Enter 'c' to
cancel): webmaster@xxx.com
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please read the Terms of Service at
https://letsencrypt.org/documents/LE-SA-v1.2-November-15-2017.pdf. You must
agree in order to register with the ACME server at
https://acme-v02.api.letsencrypt.org/directory
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(A)gree/(C)ancel: A
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Would you be willing to share your email address with the Electronic Frontier
Foundation, a founding partner of the Let's Encrypt project and the non-profit
organization that develops Certbot? We'd like to send you email about our work
encrypting the web, EFF news, campaigns, and ways to support digital freedom.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: Y
Obtaining a new certificate
Performing the following challenges:
dns-01 challenge for xxx.com
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
NOTE: The IP of this machine will be publicly logged as having requested this
certificate. If you're running certbot in manual mode on a machine that is not
your server, please ensure you're okay with that.
Are you OK with your IP being logged?
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: Y
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please deploy a DNS TXT record under the name
_acme-challenge.xxx.com with the following value:
1EfqEsqE3pbZqiJmxpHvEkM0XdUhvqW5w4lWb46zMjM
Before continuing, verify the record is deployed.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Press Enter to Continue
23.2.2. 设置域名解析
登录域名管理面板,新增 TXT 类型的域名解析记录,主机记录名称: _acme-challenge
如下图所示:
效果如下:
23.2.3. 检查域名解析
dig _acme-challenge.xxx.com TXT
; <<>> DiG 9.16.2 <<>> _acme-challenge.xxx.com TXT ;; global options: +cmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 64914 ;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0 ;; QUESTION SECTION: ;_acme-challenge.xxx.com. IN TXT ;; ANSWER SECTION: _acme-challenge.xxx.com. 596 IN TXT "1EfqEsqE3pbZqiJmxpHvEkM0XdUhvqW5w4lWb46zMjM" ;; Query time: 10 msec ;; SERVER: 223.5.5.5#53(223.5.5.5) ;; WHEN: 六 5月 02 14:59:39 CST 2020 ;; MSG SIZE rcvd: 103
23.2.4. 签发通配符域名HTTPS证书(二)
域名解析完成后,在 Press Enter to Continue 处按 Enter 继续操作……
Before continuing, verify the record is deployed.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Press Enter to Continue
Waiting for verification...
Cleaning up challenges
IMPORTANT NOTES:
- Congratulations! Your certificate and chain have been saved at:
/etc/letsencrypt/live/xxx.com/fullchain.pem
Your key file has been saved at:
/etc/letsencrypt/live/xxx.com/privkey.pem
Your cert will expire on 2020-07-31. To obtain a new or tweaked
version of this certificate in the future, simply run certbot
again. To non-interactively renew *all* of your certificates, run
"certbot renew"
- If you like Certbot, please consider supporting our work by:
Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate
Donating to EFF: https://eff.org/donate-le
生成交换密钥
openssl dhparam -dsaparam -out /etc/letsencrypt/live/xxx.com/dhparam.pem 2048
23.3. 签发HTTPS证书之标准方式签发单域名证书
| 标准方式签发HTTPS证书,必须保证 http://www.xxx.com 能够访问 |
23.3.1. 添加Nginx站点
cat << EOF > /etc/nginx/conf.d/www.xxx.com.conf
server {
listen 80;
server_name www.xxx.com;
root /data/web/www.xxx.com;
location / {
return 301 https://www.xxx.com;
}
location ^~ /.well-known/acme-challenge/ {
default_type "text/plain";
}
location = /.well-known/acme-challenge/ {
return 404;
}
}
EOF
nginx -s reload
23.3.2. 签发单域名HTTPS证书
certbot certonly --email webmaster@xxx.com -w /data/web/www.xxx.com -d www.xxx.com
- 参数解释
-
- /data/web/www.xxx.com
-
www.xxx.com.conf 中的
root - www.xxx.com
-
www.xxx.com.conf 的
server_name
Saving debug log to /var/log/letsencrypt/letsencrypt.log How would you like to authenticate with the ACME CA? - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1: Runs an HTTP server locally which serves the necessary validation files under the /.well-known/acme-challenge/ request path. Suitable if there is no HTTP server already running. HTTP challenge only (wildcards not supported). (standalone) 2: Saves the necessary validation files to a .well-known/acme-challenge/ directory within the nominated webroot path. A seperate HTTP server must be running and serving files from the webroot path. HTTP challenge only (wildcards not supported). (webroot) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Select the appropriate number [1-2] then [enter] (press 'c' to cancel): 2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Please read the Terms of Service at https://letsencrypt.org/documents/LE-SA-v1.3-September-21-2022.pdf. You must agree in order to register with the ACME server. Do you agree? - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (Y)es/(N)o: Y - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Would you be willing, once your first certificate is successfully issued, to share your email address with the Electronic Frontier Foundation, a founding partner of the Let's Encrypt project and the non-profit organization that develops Certbot? We'd like to send you email about our work encrypting the web, EFF news, campaigns, and ways to support digital freedom. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (Y)es/(N)o: Y Account registered. Requesting a certificate for www.xxx.com Successfully received certificate. Certificate is saved at: /etc/letsencrypt/live/www.xxx.com/fullchain.pem Key is saved at: /etc/letsencrypt/live/www.xxx.com/privkey.pem This certificate expires on 2023-05-17. These files will be updated when the certificate renews. NEXT STEPS: - The certificate will need to be renewed before it expires. Certbot can automatically renew the certificate in the background, but you may need to take steps to enable that functionality. See https://certbot.org/renewal-setup for instructions. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - If you like Certbot, please consider supporting our work by: * Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate * Donating to EFF: https://eff.org/donate-le - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
23.3.3. 生成交换密钥
openssl dhparam -dsaparam -out /etc/letsencrypt/live/www.xxx.com/dhparam.pem 2048
23.4. 添加HTTPS站点
23.4.1. 创建配置文件
|
Nginx会联网检查证书状态,出现警告: 2023/10/15 04:44:09 [warn] 11838#11838: no resolver defined to resolve r3.o.lencr.org while requesting certificate status, responder: r3.o.lencr.org, certificate: "/etc/letsencrypt/live/noby1.cyou/fullchain.pem" 新增Nginx主配置:
|
cat << EOF > /etc/nginx/conf.d/xxx.com_ssl.conf
server {
listen 443 ssl http2;
listen [::]:443 ssl http2;
server_name *.xxx.com;
root /data/web/xxx.com;
# certs sent to the client in SERVER HELLO are concatenated in ssl_certificate
ssl_certificate /etc/letsencrypt/live/xxx.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/xxx.com/privkey.pem;
ssl_session_timeout 1d;
ssl_session_cache shared:SSL:50m;
ssl_session_tickets off;
# Diffie-Hellman parameter for DHE ciphersuites, recommended 2048 bits
ssl_dhparam /etc/letsencrypt/live/xxx.com/dhparam.pem;
# intermediate configuration. tweak to your needs.
ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3;
ssl_ciphers 'ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDHE-ECDSA-DES-CBC3-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA:!DSS';
ssl_prefer_server_ciphers on;
# HSTS (ngx_http_headers_module is required) (15768000 seconds = 6 months)
add_header Strict-Transport-Security max-age=15768000;
# OCSP Stapling ---
# fetch OCSP records from URL in ssl_certificate and cache them
ssl_stapling on;
ssl_stapling_verify on;
# nginx: Specifies a file with trusted CA certificates in the PEM format used to verify client certificates and OCSP responses if ssl_stapling is enabled.
# certbot: If you’re using OCSP stapling with Nginx >= 1.3.7, chain.pem should be provided as the ssl_trusted_certificate to validate OCSP responses.
ssl_trusted_certificate /etc/letsencrypt/live/xxx.com/chain.pem;
location ~ ^/\.git/? {
return 404;
}
}
EOF
|
23.4.2. 重载配置
nginx -s reload
23.4.3. SSL安全级别测试
23.5. 自动续签
23.5.1. 创建续签系统服务
cat << EOF > /etc/systemd/system/letsencrypt.service
[Unit]
Description=Let's Encrypt renewal
[Service]
Type=oneshot
# ExecStart=/usr/local/bin/certbot renew
# 自动修改阿里云域名解析,完成证书续签
ExecStart=/usr/local/bin/certbot renew --manual --preferred-challenges=dns --manual-auth-hook '/data/LetsEncryptAliDnsTool/app.py --auth' --manual-cleanup-hook '/data/LetsEncryptAliDnsTool/app.py --cleanup'
ExecStartPost=/usr/sbin/nginx -s reload
[Install]
WantedBy=multi-user.target
EOF
cat << EOF > /etc/systemd/system/letsencrypt.service
[Unit]
Description=Let's Encrypt renewal
[Service]
Type=oneshot
ExecStart=/usr/local/bin/certbot renew
ExecStartPost=/usr/sbin/nginx -s reload
[Install]
WantedBy=multi-user.target
EOF
23.5.2. 创建续签定时器
cat << EOF > /etc/systemd/system/letsencrypt.timer
[Unit]
Description=Monthly renewal of Let's Encrypt's certificates
[Timer]
OnCalendar=daily
Persistent=true
[Install]
WantedBy=timers.target
EOF
23.5.3. 重载系统服务
systemctl daemon-reload
23.5.4. 设置开机启动
systemctl enable letsencrypt.service
systemctl enable letsencrypt.timer
23.5.5. 启动定时器
systemctl start letsencrypt.timer
23.5.6. 查看定时器
systemctl list-timers letsencrypt.timer
23.6. 日常使用
23.6.1. 查看证书域名列表
方法一:OpenSSL + x509 打印证书信息
openssl x509 -in /etc/letsencrypt/live/foo.com/fullchain.pem -text -noout | grep DNS
DNS:*.foo.com, DNS:foo.com
方法二:打印指定证书(foo.com)的信息
certbot --help certificates
|
certbot certificates --cert-name foo.com
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following matching certs:
Certificate Name: foo.com
Serial Number: 3709aba3222e0229f3f9b2e49b1f5664131
Key Type: ECDSA
Domains: foo.com *.foo.com
Expiry Date: 2024-01-03 06:19:50+00:00 (VALID: 89 days)
Certificate Path: /etc/letsencrypt/live/foo.com/fullchain.pem
Private Key Path: /etc/letsencrypt/live/foo.com/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
方法三:查找同时包括foo.com和*.foo.com域名的证书
certbot certificates -d foo.com -d *.foo.com
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following matching certs:
Certificate Name: foo.com
Serial Number: 3709aba3222e0229f3f9b2e49b1f5664131
Key Type: ECDSA
Domains: foo.com *.foo.com
Expiry Date: 2024-01-03 06:19:50+00:00 (VALID: 89 days)
Certificate Path: /etc/letsencrypt/live/foo.com/fullchain.pem
Private Key Path: /etc/letsencrypt/live/foo.com/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
23.6.2. 同时签发根域名(foo.com)和泛域名(*.foo.com)至一个证书
certbot --help certonly
|
如果域名证书用于CDN,注意使用 certbot certonly --key-type rsa 签发RSA格式私钥才能用
|
-
签发多域名(foo.com、*.foo.com)证书:
位置:签发界面certbot certonly -d foo.com -d *.foo.com --manual --preferred-challenges dns --server https://acme-v02.api.letsencrypt.org/directory-d foo.com -d *.foo.com参数-
- 顺序不能错乱
-
默认用第一个域名作为证书名称,如
/etc/letsencrypt/live/foo.com
签发界面的屏幕输出(1)Saving debug log to /var/log/letsencrypt/letsencrypt.log Requesting a certificate for foo.com and *.foo.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Please deploy a DNS TXT record under the name: _acme-challenge.foo.com. with the following value: KhfLnoh0x77HK9mdxCZfpWN9RA-J-eXmPvZTpvX9ReA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press Enter to Continue (1)1 直接按 Enter 签发界面的屏幕输出(2)【接 签发界面的屏幕输出(1) 的内容】 ...... ...... ...... - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Please deploy a DNS TXT record under the name: _acme-challenge.foo.com. with the following value: 0XfJQBCwpgzREwrxSiBOQRMmn7iNNE3X71QSjhUZbMs (This must be set up in addition to the previous challenges; do not remove, replace, or undo the previous challenge tasks yet. Note that you might be asked to create multiple distinct TXT records with the same name. This is permitted by DNS standards.) Before continuing, verify the TXT record has been deployed. Depending on the DNS provider, this may take some time, from a few seconds to multiple minutes. You can check if it has finished deploying with aid of online tools, such as the Google Admin Toolbox: https://toolbox.googleapps.com/apps/dig/#TXT/_acme-challenge.foo.com. Look for one or more bolded line(s) below the line ';ANSWER'. It should show the value(s) you've just added. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press Enter to Continue (1)1 解析没生效前,不要按 Enter 现在,已经拿到两条DNS TXT解析记录字符串,接着去做解析
-
登录域名管理界面,新增 两条相同名称的 TXT 解析记录,主机记录名称: _acme-challenge
如下图所示:
-
确认域名解析已经生效
位置:域名验证界面dig _acme-challenge.foo.com TXT屏幕输出; <<>> DiG 9.11.4-P2-RedHat-9.11.4-26.P2.el7_9.14 <<>> _acme-challenge.foo.com TXT ;; global options: +cmd ;; Got answer: ;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 57330 ;; flags: qr rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 0, ADDITIONAL: 1 ;; OPT PSEUDOSECTION: ; EDNS: version: 0, flags:; udp: 512 ;; QUESTION SECTION: ;_acme-challenge.foo.com. IN TXT ;; ANSWER SECTION: _acme-challenge.foo.com. 600 IN TXT "0XfJQBCwpgzREwrxSiBOQRMmn7iNNE3X71QSjhUZbMs" (1) _acme-challenge.foo.com. 600 IN TXT "KhfLnoh0x77HK9mdxCZfpWN9RA-J-eXmPvZTpvX9ReA" (2) ;; Query time: 172 msec ;; SERVER: 8.8.8.8#53(8.8.8.8) ;; WHEN: Thu Oct 05 16:02:59 CST 2023 ;; MSG SIZE rcvd: 1651 第一条 _acme-challenge.foo.comDNS TXT解析记录2 第二条 _acme-challenge.foo.comDNS TXT解析记录
-
继续完成签发多域名(foo.com、*.foo.com)证书:
签发界面的屏幕输出(3)【接 签发界面的屏幕输出(2) 的内容】 ...... ...... ...... Successfully received certificate. Certificate is saved at: /etc/letsencrypt/live/foo.com/fullchain.pem Key is saved at: /etc/letsencrypt/live/foo.com/privkey.pem This certificate expires on 2024-01-03. These files will be updated when the certificate renews. NEXT STEPS: - This certificate will not be renewed automatically. Autorenewal of --manual certificates requires the use of an authentication hook script (--manual-auth-hook) but one was not provided. To renew this certificate, repeat this same certbot command before the certificate's expiry date. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - If you like Certbot, please consider supporting our work by: * Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate * Donating to EFF: https://eff.org/donate-le - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
|
关于CDN+域名证书的说明
如果域名证书用于CDN,除了需要RSA格式的私钥外,还需要证书信任链。 本来 结果,CDN厂商验证信任链是从互联网渠道获得的中间证书和根证书,和 手动生成CDN厂商支持的
将 |
-
生成交换密钥
位置:签发界面openssl dhparam -dsaparam -out /etc/letsencrypt/live/foo.com/dhparam.pem 2048
23.6.3. 前后签发根域名(foo.com)和泛域名(*.foo.com)至一个证书
certbot --help certonly
|
-
已有包含根域名的证书:/etc/letsencrypt/live/foo.com
-
在根域名证书中追加新域名(*.foo.com):
certbot certonly -d foo.com -d *.foo.com --manual --preferred-challenges dns --server https://acme-v02.api.letsencrypt.org/directory-d foo.com -d *.foo.com参数-
- 顺序不能错乱
-
默认用第一个域名作为证书名称,如
/etc/letsencrypt/live/foo.com - 列表不能缺失
-
新证书仅签发
-d指定的域名列表,所以不能有缺失
签发证书的屏幕输出(1)Saving debug log to /var/log/letsencrypt/letsencrypt.log - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - You have an existing certificate that contains a portion of the domains you requested (ref: /etc/letsencrypt/renewal/foo.com.conf) It contains these names: foo.com (1) You requested these names for the new certificate: foo.com, *.foo.com. (2) Do you want to expand and replace this existing certificate with the new certificate? - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (E)xpand/(C)ancel: E (3)1 根证书包含的域名列表 2 本次签发指定的域名列表 3 询问用新生成的域名证书替换老证书,确认请输入 E
-
接下来的步骤就非常熟悉了,不再多说:
签发证书的屏幕输出(2)【接 签发证书的屏幕输出(1) 的内容】 ...... ...... ...... (E)xpand/(C)ancel: E Renewing an existing certificate for foo.com and *.foo.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Please deploy a DNS TXT record under the name: _acme-challenge.foo.com. with the following value: _V7Odzo7QopP9Pi2q_GMbvXyVkcUVhHIn4YVS-4M_Og Before continuing, verify the TXT record has been deployed. Depending on the DNS provider, this may take some time, from a few seconds to multiple minutes. You can check if it has finished deploying with aid of online tools, such as the Google Admin Toolbox: https://toolbox.googleapps.com/apps/dig/#TXT/_acme-challenge.foo.com. Look for one or more bolded line(s) below the line ';ANSWER'. It should show the value(s) you've just added. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press Enter to Continue Successfully received certificate. Certificate is saved at: /etc/letsencrypt/live/foo.com/fullchain.pem Key is saved at: /etc/letsencrypt/live/foo.com/privkey.pem This certificate expires on 2024-01-03. These files will be updated when the certificate renews. NEXT STEPS: - This certificate will not be renewed automatically. Autorenewal of --manual certificates requires the use of an authentication hook script (--manual-auth-hook) but one was not provided. To renew this certificate, repeat this same certbot command before the certificate's expiry date. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - If you like Certbot, please consider supporting our work by: * Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate * Donating to EFF: https://eff.org/donate-le - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
生成交换密钥
位置:签发界面openssl dhparam -dsaparam -out /etc/letsencrypt/live/foo.com/dhparam.pem 2048
24. GPG
24.1. 生成文件签名
$ gpg --list-signatures
/home/foo/.gnupg/pubring.kbx
--------------------------------
pub rsa2048 2017-12-14 [SC]
CD6B852E003F586F3FD6AA6CF5AF9B93E7C36AED
uid [ 绝对 ] Zhong Jing Wu Lian (release key) <security@mwteck.com>
sig 3 F5AF9B93E7C36AED 2017-12-14 Zhong Jing Wu Lian (release key) <security@mwteck.com>
sub rsa2048 2017-12-14 [E]
sig F5AF9B93E7C36AED 2017-12-14 Zhong Jing Wu Lian (release key) <security@mwteck.com>
sha1sum config.properties >config.properties.sha1sum
gpg --armor --digest-algo sha1 --detach-sign --local-user F5AF9B93E7C36AED config.properties.sha1sum
gpg --verify config.properties.sha1sum.asc
25. OpenSSL
25.1. 常用命令
echo -n "abc" | openssl dgst -sha224 -hmac "password"
echo -n "abc" | openssl dgst -sha224 -hmac "123456" -binary | base64 -w 0
base64 -w 0 表示不换行
|
| 可选算法 sha1/sha224/sha256/sha384/sha512 |
26. Proxychains
26.1. 安装配置
dnf install -y gcc make
wget https://github.com/haad/proxychains/archive/4.3.0.tar.gz -O 4.3.0.tar.gz
tar xf 4.3.0.tar.gz
cd proxychains-4.3.0
./configure --prefix=/usr/local/proxychains-4.3.0
make && make install
cp src/proxychains.conf /usr/local/proxychains-4.3.0/etc
sed -E -i 's/socks4\s+127.0.0.1 9050/socks5 127.0.0.1 1080/' /usr/local/proxychains-4.3.0/etc/proxychains.conf
sed -i 's/#quiet_mode/quiet_mode/g' /usr/local/proxychains-4.3.0/etc/proxychains.conf
echo 'alias p="/usr/local/proxychains-4.3.0/bin/proxychains4"' >> ~/.bashrc
# 不重启终端生效环境配置
source ~/.bashrc
# 测试访问
p curl -I www.youtube.com
27. ImageMagick
yum install -y ImageMagick
27.1. 查看图片元数据
27.1.1. file 命令
# file foo.png
foo.png: PNG image data, 425 x 239, 8-bit/color RGB, non-interlaced
# file bar.jpg
bar.jpg: JPEG image data, JFIF standard 1.01 (1)
| 1 | 看不到JPG图片的分辨率 |
file *.jpg *.png 支持通配符指定多个文件
|
27.1.2. identify 命令
# identify foo.png
foo.png PNG 425x239 425x239+0+0 8-bit sRGB 143444B 0.000u 0:00.000
# identify bar.jpg
bar.jpg JPEG 540x1080 540x1080+0+0 8-bit sRGB 50405B 0.000u 0:00.000
identify *.jpg *.png 支持通配符指定多个文件
|
27.2. 转换单张图片
convert 命令可在转换图片格式时,调整图片参数,如分辨率、质量等等。
27.2.1. 直接转换格式
convert foo.png bar.jpg
27.2.2. 转换格式并调整参数
convert foo.png -resize 50% quz.png
convert foo.png -quality 50% quz.png
27.3. 批量修改图片
mogrify 命令能直接修改原始文件(适合批量操作),而 convert 需要指定新文件名称。
27.3.1. 按比例缩放图片(分辨率)
mogrify -resize 50% *.jpg
27.3.2. 按比例调整图片质量(文件大小)
mogrify -quality 50% foo.jpg
27.4. 批量图片转PDF
[foo@t430-arch ~]$ tree /home/foo/Pictures/hetong/发票合同/2015/发票
/home/foo/Pictures/hetong/发票合同/2015/发票
├── 20-20000
│ └── IMG_20171115_120634.jpg
├── 38
│ └── IMG_20171115_122128.jpg
├── 39
│ └── IMG_20171115_120247.jpg
├── 41-20000
│ └── IMG_20171115_120450.jpg
├── 47
│ └── IMG_20171115_123224.jpg
├── 48
│ └── IMG_20171115_122517.jpg
├── 49
│ └── IMG_20171115_123443.jpg
├── 50
│ ├── IMG_20171115_122619.jpg
│ ├── IMG_20171115_122629.jpg
│ ├── IMG_20171115_122637.jpg
│ ├── IMG_20171115_122645.jpg
│ └── IMG_20171115_122657.jpg
├── 52
│ └── IMG_20171115_122835.jpg
├── 53
│ └── IMG_20171115_122310.jpg
├── 54
│ └── IMG_20171115_122411.jpg
├── 55
│ └── IMG_20171115_122026.jpg
├── 56
│ └── IMG_20171115_122218.jpg
├── 定州-5500
│ └── IMG_20171115_123055.jpg
├── 韩代-6500
│ └── IMG_20171115_123341.jpg
└── 人保-45900
├── IMG_20171115_121009.jpg
└── IMG_20171115_121337.jpg
- 需求
-
每个目录都是一份合同(一页或多页)的扫描图片,生成的PDF必须保证同一份合同的图片是连续的。
生成 PDF 的脚本内容:
echo '#!/bin/sh' > make_pdf.sh
echo 'convert \' >> make_pdf.sh
find /home/foo/Pictures/hetong/发票合同/2015/发票 -name '*.jpg' -o -name "*.png" -o -name "*.jpeg"|awk '{print "\""$1"\" \\"}' >> make_pdf.sh
echo 'out.pdf' >> make_pdf.sh
输出最终 PDF 文件:sh make_pdf.sh
convert 命令在批量处理图片时,耗费大量内存。处理300张图片需要25G~30G左右的内存。
|
28. npm
28.1. 安装配置
28.1.1. 初始配置
npm config set registry https://registry.npm.taobao.org
cd /data/workspace/admin-vue-web
npm install
npm run build
29. gradle
29.1. 安装配置
29.1.1. 全局源
cat << EOF > ~/.gradle/init.gradle
allprojects{
repositories {
mavenLocal()
maven { url 'https://maven.aliyun.com/repository/public/' }
maven { url 'https://maven.aliyun.com/repository/spring/'}
maven { url 'https://maven.aliyun.com/repository/google/'}
maven { url 'https://maven.aliyun.com/repository/gradle-plugin/'}
maven { url 'https://maven.aliyun.com/repository/spring-plugin/'}
maven { url 'https://maven.aliyun.com/repository/grails-core/'}
maven { url 'https://maven.aliyun.com/repository/apache-snapshots/'}
mavenCentral()
}
}
EOF
29.2. 使用方法
- gradle build
-
构建
- gradle bootRun
-
启动SpringBoot应用
- gradle publishToMavenLocal
-
发布到本地maven仓库
- gradle distZip
-
构建安装包(如,可解压独立运行)
30. ElasticStack
30.1. CentOS7+ELK环境配置
30.1.1. 安装Java
yum install -y java-11-openjdk java-11-openjdk-devel java-11-openjdk-headless
30.1.2. 增加YUM源
rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch
cat << EOF > /etc/yum.repos.d/elasticsearch.repo
[elasticsearch]
name=Elasticsearch repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=0
autorefresh=1
type=rpm-md
EOF
查看elasticsearch源中的包列表:
yum --disablerepo="*" --enablerepo="elasticsearch" list available
Available Packages
apm-server.x86_64 8.10.4-1 elasticsearch
auditbeat.x86_64 8.10.4-1 elasticsearch
elastic-agent.x86_64 8.10.4-1 elasticsearch
elasticsearch.x86_64 8.10.4-1 elasticsearch
enterprise-search.x86_64 8.10.4-1 elasticsearch
filebeat.x86_64 8.10.4-1 elasticsearch
heartbeat-elastic.x86_64 8.10.4-1 elasticsearch
kibana.x86_64 8.10.4-1 elasticsearch
logstash.x86_64 1:8.10.4-1 elasticsearch
metricbeat.x86_64 8.10.4-1 elasticsearch
packetbeat.x86_64 8.10.4-1 elasticsearch
pf-host-agent.x86_64 8.10.4-1 elasticsearch
30.1.3. Elasticsearch
Vo2wa2woo9ThahSh4Ood
安装
export ELASTIC_PASSWORD=$(pwgen 20 1)
echo 'Elasticsearch密码:'$ELASTIC_PASSWORD
yum --disablerepo="*" --enablerepo="elasticsearch" install -y elasticsearch
--------------------------- Security autoconfiguration information ------------------------------
Authentication and authorization are enabled.
TLS for the transport and HTTP layers is enabled and configured.
The generated password for the elastic built-in superuser is : mo0BMMetyBPrIp_*hX2A
If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.
You can complete the following actions at any time:
Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.
Generate an enrollment token for Kibana instances with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.
Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.
-------------------------------------------------------------------------------------------------
### NOT starting on installation, please execute the following statements to configure elasticsearch service to start automatically using systemd
sudo systemctl daemon-reload
sudo systemctl enable elasticsearch.service
### You can start elasticsearch service by executing
sudo systemctl start elasticsearch.service
配置
pip312 install --root-user-action=ignore -U yq
yes|cp /etc/elasticsearch/elasticsearch.yml /etc/elasticsearch/elasticsearch.yml.init
yq -yi '."cluster.name"="myapp"' /etc/elasticsearch/elasticsearch.yml
yq -yi '."node.name"="'${HOSTNAME}'"' /etc/elasticsearch/elasticsearch.yml
yq -yi '."network.host"="127.0.0.1"' /etc/elasticsearch/elasticsearch.yml
yq -y . /etc/elasticsearch/elasticsearch.yml
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
cluster.initial_master_nodes:
- centos7
http.host: 0.0.0.0
cluster.name: myapp
node.name: centos7
network.host: 127.0.0.1
|
使用阿里云的ECS服务器配置Elasticsearch时,需要明确指定本机内网IP地址。否则,会出现9200端口已经启动,但无法创建或查询index。 ECS配置示例:
|
开机启动
systemctl enable elasticsearch
启动服务
systemctl start elasticsearch
访问
curl -k -u 'elastic:mo0BMMetyBPrIp_*hX2A' https://localhost:9200
{
"name" : "centos7",
"cluster_name" : "myapp",
"cluster_uuid" : "MJ_gAE6wToyeymhvP8RZ-w",
"version" : {
"number" : "8.10.4",
"build_flavor" : "default",
"build_type" : "rpm",
"build_hash" : "b4a62ac808e886ff032700c391f45f1408b2538c",
"build_date" : "2023-10-11T22:04:35.506990650Z",
"build_snapshot" : false,
"lucene_version" : "9.7.0",
"minimum_wire_compatibility_version" : "7.17.0",
"minimum_index_compatibility_version" : "7.0.0"
},
"tagline" : "You Know, for Search"
}
30.1.4. Kibana
安装
yum --disablerepo="*" --enablerepo="elasticsearch" install -y kibana
配置
xpack.security.http.ssl: enabled: true keystore.path: certs/http.p12 xpack.security.transport.ssl: enabled: true verification_mode: certificate keystore.path: certs/transport.p12 truststore.path: certs/transport.p12
bin/elasticsearch-certutil cert -ca elastic-stack-ca.p12 -name kibana-client -dns <your_kibana_hostname> openssl pkcs12 -in kibana-client.p12 -cacerts -nokeys -out kibana-ca.crt
elasticsearch-certutil csr -name kibana-server -dns example.com,www.example.com
bin/elasticsearch-reset-password -u
/usr/share/elasticsearch/bin/elasticsearch-reset-password -u kibana_system --auto --batch
Password for the [kibana_system] user successfully reset. New value: g8mEFUrQclFstSniVqsj
yes|cp /etc/kibana/kibana.yml /etc/kibana/kibana.yml.init
domain=kibana.foo.com
cert_name=foo.com
yq -yi '.server.port=5601' /etc/kibana/kibana.yml
yq -yi '.server.host="0.0.0.0"' /etc/kibana/kibana.yml
yq -yi '.server.name="mykibana"' /etc/kibana/kibana.yml
yq -yi '.server.publicBaseUrl="https://kibana.no1bing.com:5601"' /etc/kibana/kibana.yml
yq -yi '.server.ssl.enabled=true' /etc/kibana/kibana.yml
yq -yi '.server.ssl.certificate="/etc/letsencrypt/live/'${cert_name}'/fullchain.pem"' /etc/kibana/kibana.yml
yq -yi '.server.ssl.key="/etc/letsencrypt/live/'${cert_name}'/privkey.pem"' /etc/kibana/kibana.yml
yq -yi '."i18n.locale"="zh-CN"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.hosts=["https://localhost:9200"]' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.username="kibana_system"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.password="g8mEFUrQclFstSniVqsj"' /etc/kibana/kibana.yml
# for read /etc/elasticsearch/certs/http_ca.crt
gpasswd -a kibana elasticsearch
grpunconv
yq -yi '.elasticsearch.ssl.verificationMode="none"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.ssl.certificateAuthorities=["/etc/elasticsearch/certs/http_ca.crt"]' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.ssl.truststore.path="/etc/elasticsearch/certs/transport.p12"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.ssl.truststore.password="_5DC1duxS8aXHgtMGjNkWg"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.ssl.keystore.path="/etc/elasticsearch/certs/transport.p12"' /etc/kibana/kibana.yml
yq -yi '.elasticsearch.ssl.keystore.password="_5DC1duxS8aXHgtMGjNkWg"' /etc/kibana/kibana.yml
yq -yi '.xpack.security.enabled=true' /etc/kibana/kibana.yml
yq -yi '.xpack.security.encryptionKey="'$(pwgen 32 1)'"' /etc/kibana/kibana.yml
yq -yi '.xpack.encryptedSavedObjects.encryptionKey="'$(pwgen 32 1)'"' /etc/kibana/kibana.yml
yq -yi '.xpack.reporting.kibanaServer.hostname="'${domain}'"' /etc/kibana/kibana.yml
yq -yi '.xpack.reporting.encryptionKey="'$(pwgen 32 1)'"' /etc/kibana/kibana.yml
yq -yi '.xpack.reporting.roles.enabled=false' /etc/kibana/kibana.yml
yq -yi '.xpack.screenshotting.browser.chromium.disableSandbox=true' /etc/kibana/kibana.yml
sed -i -E 's/^--openssl-legacy-provider$/#--openssl-legacy-provider/' /etc/kibana/node.options
chmod 755 /etc/letsencrypt/{archive,live}
chmod 644 /etc/letsencrypt/live/${cert_name}/privkey.pem
yq -y . /etc/kibana/kibana.yml
logging:
appenders:
file:
type: file
fileName: /var/log/kibana/kibana.log
layout:
type: json
root:
appenders:
- default
- file
pid.file: /run/kibana/kibana.pid
server.host: 0.0.0.0
server.name: mykibana
server.ssl.enabled: true
server.ssl.certificate: /etc/letsencrypt/live/kibana.foo.com/fullchain.pem
server.ssl.key: /etc/letsencrypt/live/kibana.foo.com/privkey.pem
i18n.locale: zh-CN
elasticsearch.hosts:
- https://localhost:9200
elasticsearch.username: elastic
elasticsearch.password: mo0BMMetyBPrIp_*hX2A
xpack.security.enabled: true
xpack.security.encryptionKey: shaireeseimuaphohkaph4queiTh5aJe
|
如果Elasticsearch的 那么,Kibana中的 |
开机启动
systemctl enable kibana
启动服务
systemctl start kibana
Kibana参数错误导致日志文件没数据,手动排查故障:cd /usr/share/kibana && runuser -u kibana /usr/share/kibana/bin/kibana
|
访问
使用Elasticsearch随机密码登录 http://172.24.109.12:5601/
安装Logstash
yum --disablerepo="*" --enablerepo="elasticsearch" install -y logstash
30.1.5. 配置
配置文件路径: /etc/elasticsearch/elasticsearch.yml
network.host: 192.168.0.4
discovery.seed_hosts: ["192.168.0.0/24"]`
|
|
|
Elasticsearch 在老旧硬件上需要关闭机器学习模块, 在配置文件中增加参数: |
30.1.6. logstash
yum --disablerepo="*" --enablerepo="elasticsearch" install -y logstash
openssl x509 -fingerprint -sha256 -noout -in /etc/elasticsearch/certs/http_ca.crt | awk --field-separator="=" '{print $2}' | sed 's/://g'
/usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.transport.ssl.keystore.secure_password /usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.transport.ssl.truststore.secure_password
yum --disablerepo="*" --enablerepo="elasticsearch" install -y filebeat
yes|cp /etc/filebeat/filebeat.yml /etc/filebeat/filebeat.yml.init
yq -yi '."output.elasticsearch".hosts=["103.231.173.43:9200"]' /etc/filebeat/filebeat.yml yq -yi '."output.elasticsearch".protocol="https"' /etc/filebeat/filebeat.yml yq -yi '."output.elasticsearch".username="elastic"' /etc/filebeat/filebeat.yml yq -yi '."output.elasticsearch".password="mo0BMMetyBPrIp_*hX2A"' /etc/filebeat/filebeat.yml yq -yi '."output.elasticsearch".ssl.enabled=true' /etc/filebeat/filebeat.yml yq -yi '."output.elasticsearch".ssl.ca_trusted_fingerprint="4CE07DBB4193918B332063A51DC0647A0D0FC86CF5DC01AB8CF5FB7459CBA97E"' /etc/filebeat/filebeat.yml
yq -yi '."setup.kibana".host="https://kibana.no1bing.com:5601"' /etc/filebeat/filebeat.yml
filebeat modules list filebeat modules enable nginx
yes|cp /etc/filebeat/modules.d/nginx.yml /etc/filebeat/modules.d/nginx.yml.init
yq -yi '.[0].access.enabled=true' /etc/filebeat/modules.d/nginx.yml yq -yi '.[0].access.var.paths=["/root/downloads/log/jk.no1bing.com_access.log"]' /etc/filebeat/modules.d/nginx.yml access.inputpipeline: filebeat-6.4.3-nginx-access-custom
yq -yi '.[0].error.enabled=true' /etc/filebeat/modules.d/nginx.yml yq -yi '.[0].error.var.paths=["/root/downloads/log/jk.no1bing.com_error.log"]' /etc/filebeat/modules.d/nginx.yml
filebeat test config filebeat test config -e
Config OK
filebeat setup -e
systemctl enable filebeat --now systemctl status filebeat
30.2. CentOS8+ELK环境配置
30.2.1. 安装ELK
30.2.2. Logstash
“如何将Nginx的Web日志导入Elasticsearch?”
日志处理管道
日志记录增加到Elasticsearch时,需要使用管道实时清洗、处理日志格式。
log_format main '$host $remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
执行以下命令,在Elasticsearch中增加管道:
curl -H "Content-Type: application/json" -X PUT http://0.0.0.0:9200/_ingest/pipeline/web_log -d '
{
"description": "",
"processors": [
{
"dissect": {
"field": "message",
"pattern": "%{domain} %{server_port} %{client_ip} - - [%{web_timestamp}] \"%{method} %{uri} HTTP/%{version}\" %{status} %{response_time} %{body_bytes} \"%{referer}\" \"%{user_agent}\" \"%{x_forwarded_for}\" %{server_ip}"
}
},
{
"grok": {
"field": "uri",
"on_failure": [
{
"set": {
"field": "ext",
"value": ""
}
},
{
"set": {
"field": "url_base",
"value": "{{uri}}"
}
}
],
"patterns": [
"%{GREEDYDATA:url_base}\\.%{WORD:ext}"
]
}
},
{
"geoip": {
"field": "client_ip",
"target_field": "client_ip_geo"
}
},
{
"geoip": {
"field": "server_ip",
"target_field": "server_ip_geo"
}
},
{
"user_agent": {
"field": "user_agent"
}
},
{
"date": {
"field": "web_timestamp",
"target_field": "@timestamp",
"formats": [
"dd/MMM/yyyy:HH:mm:ss Z"
],
"timezone" : "Asia/Shanghai"
}
},
{
"convert": {
"field": "server_port",
"type": "integer"
}
},
{
"convert": {
"field": "status",
"type": "integer"
}
},
{
"convert": {
"field": "response_time",
"type": "float"
}
},
{
"convert": {
"field": "body_bytes",
"type": "integer"
}
},
{
"set": {
"field": "hour_of_day",
"value": 12
}
},
{
"grok": {
"field": "web_timestamp",
"patterns": [
"\\d+/\\w+/\\d+:%{NUMBER:hour_of_day:int}:\\d+:\\d+ \\+\\d+"
]
}
}
]
}
'
准备日志文件
- 日志文件存放路径
-
~/es_log/nginx_logs
[root@dell7 nginx_logs]# ls
access.log-20200501 access.log-20200512 access.log-20200523 access.log-20200603
access.log-20200502 access.log-20200513 access.log-20200524 access.log-20200604
access.log-20200503 access.log-20200514 access.log-20200525 access.log-20200605
access.log-20200504 access.log-20200515 access.log-20200526 access.log-20200606
access.log-20200505 access.log-20200516 access.log-20200527 access.log-20200607
access.log-20200506 access.log-20200517 access.log-20200528 access.log-20200608
access.log-20200507 access.log-20200518 access.log-20200529 access.log-20200609
access.log-20200508 access.log-20200519 access.log-20200530 access.log-20200610
access.log-20200509 access.log-20200520 access.log-20200531
access.log-20200510 access.log-20200521 access.log-20200601
access.log-20200511 access.log-20200522 access.log-20200602
配置文件
mkdir -p ~/es_log
cat << EOF > ~/es_log/logstash.conf
input{
file {
# https://www.elastic.co/guide/en/logstash/current/plugins-inputs-file.html#plugins-inputs-file-delimiter
# 默认以"\n"分割,文件必须至少一个换行符
path => "${HOME}/es_log/nginx_logs/access.log*"
start_position => "end"
stat_interval => "1 second"
}
}
output{
elasticsearch {
#这里可以是数组,可以是多个节点的地址,会自动启用负载均衡
hosts => ["0.0.0.0:9200"]
index => "foo_com"
pipeline => "web_log"
}
#file {
# path => "/var/log/logstash.log"
# codec => json
#}
}
EOF
|
如果Elasticsearch的 那么,Logstash配置中的 |
导入Nginx日志到Elasticsearch
导入数据到ES:
/usr/share/logstash/bin/logstash -f ~/es_log/logstash.conf
每次运行的结果会记录到文件:
/usr/share/logstash/data/plugins/inputs/file/.sincedb_100caf6f694120ba2483577719e4a564
文件内容为:
270004749 0 2049 584450300 1592393767.626652 /root/es_log/nginx_logs/access.log-20200501
272281186 0 2049 471367497 1592394059.861428 /root/es_log/nginx_logs/access.log-20200502
如果想重新导入,删除 .sincedb 文件即可。
30.3. ElasticStack使用教程
我们以 wecompany 公司的员工信息管理为例来学习 Elasticsearch 中的基本操作。
30.3.1. 索引文档
- 向名称为
wecompany的索引中添加类型为employee的3个员工信息的文档
curl -H "Content-Type: application/json" -X PUT 'http://localhost:9200/wecompany/employee/1?pretty' -d '
{
"first_name" : "John",
"last_name" : "Smith",
"age" : 25,
"about" : "I love to go rock climbing",
"interests": [ "sports", "music" ]
}
'
curl -H "Content-Type: application/json" -X PUT 'http://localhost:9200/wecompany/employee/2?pretty' -d '
{
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 32,
"about" : "I like to collect rock albums",
"interests": [ "music" ]
}
'
curl -H "Content-Type: application/json" -X PUT 'http://localhost:9200/wecompany/employee/3?pretty' -d '
{
"first_name" : "Douglas",
"last_name" : "Fir",
"age" : 35,
"about": "I like to build cabinets",
"interests": [ "forestry" ]
}
'
30.3.2. 搜索
- 获取ID为1的文档
-
curl -X GET 'http://localhost:9200/wecompany/employee/1?pretty'
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "1",
"_version" : 1,
"found" : true,
"_source" : {
"first_name" : "John",
"last_name" : "Smith",
"age" : 25,
"about" : "I love to go rock climbing",
"interests" : [
"sports",
"music"
]
}
}
- 搜索姓氏为
Smith的员工信息 -
curl -X GET 'http://localhost:9200/wecompany/employee/_search?q=last_name:Smith&pretty'
{
"took" : 204,
"timed_out" : false,
"_shards" : {
"total" : 5,
"successful" : 5,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : 2,
"max_score" : 0.2876821,
"hits" : [
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "2",
"_score" : 0.2876821,
"_source" : {
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 32,
"about" : "I like to collect rock albums",
"interests" : [
"music"
]
}
},
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "1",
"_score" : 0.2876821,
"_source" : {
"first_name" : "John",
"last_name" : "Smith",
"age" : 25,
"about" : "I love to go rock climbing",
"interests" : [
"sports",
"music"
]
}
}
]
}
}
- 使用查询表达式搜索姓氏为Smith的员工信息
curl -H "Content-Type: application/json" -X GET 'http://localhost:9200/wecompany/employee/_search?pretty' -d '
{
"query" : {
"match" : {
"last_name" : "Smith"
}
}
}
'
返回结果同上
- 姓氏为Smith且年龄大于30的复杂条件搜索员工信息
curl -H "Content-Type: application/json" -X GET 'http://localhost:9200/wecompany/employee/_search?pretty' -d '
{
"query": {
"bool": {
"must": {
"match": {
"last_name": "smith"
}
},
"filter": {
"range": {
"age": {
"gt": 30
}
}
}
}
}
}
'
{
"took" : 39,
"timed_out" : false,
"_shards" : {
"total" : 5,
"successful" : 5,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : 1,
"max_score" : 0.2876821,
"hits" : [
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "2",
"_score" : 0.2876821,
"_source" : {
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 32,
"about" : "I like to collect rock albums",
"interests" : [
"music"
]
}
}
]
}
}
- 全文搜索喜欢攀岩(rock climbing)的员工信息
curl -H "Content-Type: application/json" -X GET 'http://localhost:9200/wecompany/employee/_search?pretty' -d '
{
"query" : {
"match" : {
"about" : "rock climbing"
}
}
}
'
{
"took" : 10,
"timed_out" : false,
"_shards" : {
"total" : 5,
"successful" : 5,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : 2,
"max_score" : 0.5753642,
"hits" : [
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "1",
"_score" : 0.5753642,
"_source" : {
"first_name" : "John",
"last_name" : "Smith",
"age" : 25,
"about" : "I love to go rock climbing",
"interests" : [
"sports",
"music"
]
}
},
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "2",
"_score" : 0.2876821,
"_source" : {
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 32,
"about" : "I like to collect rock albums",
"interests" : [
"music"
]
}
}
]
}
}
此外,将上述请求中的 match 换成 match_phrase 可以精确匹配短语 rock climbing 的结果。在 query 同级添加 highlight 参数可以在结果中用 <em></em> 标签标注匹配的关键词:
{
"query" :{ ... }
"highlight" : {
"fields" : {
"about" : {}
}
}
}
短语搜索
GET /megacorp/employee/_search
{
"query": {
"match_phrase": {
"about": "rock climbing"
}
}
}
{
...
"hits": {
"total": 1,
"max_score": 0.23013961,
"hits": [
{
...
"_score": 0.23013961,
"_source": {
"first_name": "John",
"last_name": "Smith",
"age": 25,
"about": "I love to go rock climbing",
"interests": [
"sports",
"music"
]
}
}
]
}
}
高亮我们的搜索
GET /megacorp/employee/_search
{
"query": {
"match_phrase": {
"about": "rock climbing"
}
},
"highlight": {
"fields": {
"about": {}
}
}
}
{
...
"hits": {
"total": 1,
"max_score": 0.23013961,
"hits": [
{
...
"_score": 0.23013961,
"_source": {
"first_name": "John",
"last_name": "Smith",
"age": 25,
"about": "I love to go rock climbing",
"interests": [
"sports",
"music"
]
},
"highlight": {
"about": [
"I love to go <em>rock</em> <em>climbing</em>"
]
}
}
]
}
}
30.3.3. 聚合
- 查询聚合结果
curl -H "Content-Type: application/json" -X GET 'http://localhost:9200/wecompany/employee/_search?pretty' -d '
{
"aggs": {
"all_interests": {
"terms": { "field": "interests.keyword" }
}
}
}
'
{
"took" : 72,
"timed_out" : false,
"_shards" : {
"total" : 5,
"successful" : 5,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : 3,
"max_score" : 1.0,
"hits" : [
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "2",
"_score" : 1.0,
"_source" : {
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 32,
"about" : "I like to collect rock albums",
"interests" : [
"music"
]
}
},
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "1",
"_score" : 1.0,
"_source" : {
"first_name" : "John",
"last_name" : "Smith",
"age" : 25,
"about" : "I love to go rock climbing",
"interests" : [
"sports",
"music"
]
}
},
{
"_index" : "wecompany",
"_type" : "employee",
"_id" : "3",
"_score" : 1.0,
"_source" : {
"first_name" : "Douglas",
"last_name" : "Fir",
"age" : 35,
"about" : "I like to build cabinets",
"interests" : [
"forestry"
]
}
}
]
},
"aggregations" : {
"all_interests" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : "music",
"doc_count" : 2
},
{
"key" : "forestry",
"doc_count" : 1
},
{
"key" : "sports",
"doc_count" : 1
}
]
}
}
}
我们可以看到两个职员对音乐有兴趣,一个喜欢林学,一个喜欢运动。这些数据并没有被预先计算好,它们是实时的从匹配查询语句的文档中动态计算生成的。如果我们想知道所有姓"Smith"的人最大的共同点(兴趣爱好),我们只需要增加合适的语句既可:
GET /megacorp/employee/_search
{
"query": {
"match": {
"last_name": "smith"
}
},
"aggs": {
"all_interests": {
"terms": {
"field": "interests.keyword"
}
}
}
}
all_interests 聚合已经变成只包含和查询语句相匹配的文档了:
{
...
"hits": {
...
},
"aggregations": {
"all_interests": {
"buckets": [
{
"key": "music",
"doc_count": 2
{
"key": "sports",
"doc_count": 1
}
]
}
}
}
聚合也允许分级汇总。例如,让我们统计每种兴趣下职员的平均年龄:
GET /megacorp/employee/_search
{
"aggs": {
"all_interests": {
"terms": {
"field": "interests.keyword"
},
"aggs": {
"avg_age": {
"avg": {
"field": "age"
}
}
}
}
}
}
虽然这次返回的聚合结果有些复杂,但任然很容易理解:
{
...
"hits": {
...
},
"all_interests": {
"buckets": [
{
"key": "music",
"doc_count": 2,
"avg_age": {
"value": 28.5
}
},
{
"key": "forestry",
"doc_count": 1,
"avg_age": {
"value": 35
}
},
{
"key": "sports",
"doc_count": 1,
"avg_age": {
"value": 25
}
}
]
}
}
该聚合结果比之前的聚合结果要更加丰富。我们依然得到了兴趣以及数量(指具有该兴趣的员工人数)的列表,但是现在每个兴趣额外拥有 avg_age 字段来显示具有该兴趣员工的平均年龄。
30.3.4. 更新文档
- 更新ID为2的文档,只需再次PUT即可
curl -H "Content-Type: application/json" -X PUT 'http://localhost:9200/wecompany/employee/2?pretty' -d '
{
"first_name" : "Jane",
"last_name" : "Smith",
"age" : 33,
"about" : "I like to collect rock albums",
"interests": [ "music" ]
}
'
30.3.5. 删除文档
curl -H "Content-Type: application/json" -X DELETE 'http://localhost:9200/wecompany/employee/1?pretty'
30.3.6. 结构化查询
最重要的查询过滤语句
term 查询
term 主要用于精确匹配哪些值,比如数字,日期,布尔值或 not_analyzed的字符串(未经分析的文本数据类型):
{ "term": { "age": 26}}
{ "term": { "date": "2014-09-01" }}
{ "term": { "public": true }}
{ "term": { "tag": "full_text"}}
terms 查询
terms 跟 terms 过滤有点类似,但 terms 允许指定多个匹配条件。 如果某个字段指定了多个值,那么文档需要一起去做匹配:
{
"terms": {
"tag": [
"search",
"full_text",
"nosql"
]
}
}
range 过滤
{
"range": {
"age": {
"gte": 20,
"lt": 30
}
}
}
范围操作符包含:
- gt
-
大于
- gte
-
大于等于
- lt
-
小于
- lte
-
小于等于
exists 和 missing 过滤
exists 和 missing 过滤SQL语句中的过滤可以用于查找文档中是否包含指定字段或没有某个字段,类似于 IS_NULL 条件
{
"exists": {
"field": "title"
}
}
这两个过滤只是针对已经查出一批数据来,但是想区分出某个字段是否存在的时候使用。
30.3.7. DSL查询实例
{
"query": {
"match": {
"tweet": "elasticsearch"
}
}
}
{
"bool": {
"must": {
"match": {
"tweet": "elasticsearch"
}
},
"must_not": {
"match": {
"name": "mary"
}
},
"should": {
"match": {
"tweet": "full text"
}
}
}
}
{
"bool": {
"must": {
"match": {
"email": "business opportunity"
}
},
"should": [
{
"match": {
"starred": true
}
},
{
"bool": {
"must": {
"folder": "inbox"
},
"must_not": {
"spam": true
}
}
}
],
"minimum_should_match": 1
}
}
30.4. 从MySQL同步数据到ElasticSearch
参考文档:
/usr/share/logstash/bin/logstash-plugin install logstash-input-jdbc
wget -O /usr/share/logstash/lib/mysql-connector-java-8.0.18.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.18/mysql-connector-java-8.0.18.jar
[ ! -d "/data/redas_meta_sync" ] && mkdir /data/redas_meta_sync/logs
chown -R logstash:logstash /usr/share/logstash/data /data/redas_meta_sync
cat << EOF > /data/redas_meta_sync/logstash_mysql_es_.conf
input{
jdbc {
# 驱动方式
jdbc_driver_library => "/usr/share/logstash/lib/mysql-connector-java-8.0.18.jar"
# 驱动类名
jdbc_driver_class => "com.mysql.cj.jdbc.Driver"
# mysql 数据库链接,blog为数据库名 &useSSL=false 这个是为了防止不支持ssl连接的问题
jdbc_connection_string => "jdbc:mysql://localhost:3306/redas?serverTimezone=Asia/Shanghai&useUnicode=yes&characterEncoding=UTF-8"
# 连接数据库用户名
jdbc_user => "redas"
# 连接数据库密码
jdbc_password => "geek"
# 是否启用分页
jdbc_paging_enabled => "true"
jdbc_page_size => "50000"
# 设置监听间隔 各字段含义(由左至右)分、时、天、月、年,全部为*默认含>义为每分钟都更新
schedule => "*/1 * * * * "
# 直接写sql语句用这个
statement => "select `id`, `content` from `recr_page_storage` where id > :sql_last_value order by id"
# 是否需要记录某个column 的值,如果 record_last_run 为真,可以自定义我们需要 track 的 column 名称,此时该参数就要为 true. 否则默认 track 的是 timestamp 的值
use_column_value => true
# 是否记录上次执行结果, 如果为真,将会把上次执行到的 tracking_column 字段的值记录下来,保存到 last_run_metadata_path 指定的文件中
record_last_run => true
# 如果 use_column_value 为真,需配置此参数. track 的数据库 column 名,该 column 必须是递增的.比如:ID.
tracking_column_type => "numeric"
tracking_column => "id"
# 保存上一次运行>的信息(tracking_column)
last_run_metadata_path => "/data/redas_meta_sync/last_run.txt"
# 是否清除 last_run_metadata_path 的记录,如果为真那么每次都相当于从头开始查询所有的数据库记录
clean_run => false
}
}
filter {
json {
source => "content"
remove_field => "content"
}
}
output{
elasticsearch {
#这里可以是数组,可以是多个节点的地址,会自动启用负载均衡
hosts => ["127.0.0.1:9200"]
index => "redas_test"
# 将表Iid作为ES的主键,防止数据重复
document_id => "%{id}"
}
file {
path => "/data/redas_meta_sync/logs/%{+YYYY-MM-dd}.log"
codec => json_lines
}
}
EOF
cat << EOF > /usr/lib/systemd/system/redas_meta_sync.service
[Unit]
Description=Redas Position Infomation Auto-Sync to ElasticSearch
After=network.target remote-fs.target nss-lookup.target mysqld.service elasticsearch.service
[Service]
Type=simple
User=logstash
Group=logstash
WorkingDirectory=/data/redas_meta_sync
ExecStart=/usr/share/logstash/bin/logstash -f /data/redas_meta_sync/logstash_mysql_es_.conf -l /data/redas_meta_sync/logs --path.settings /etc/logstash
StandardOutput=null
StandardError=null
[Install]
WantedBy=multi-user.target
EOF
systemctl enable redas_meta_sync
systemctl start redas_meta_sync
30.5. ElasticSearch在线迁移
参考文档:
cat << EOF > transfer_es.conf
input {
elasticsearch {
hosts => ["http://192.168.2.4:9200"]
index => "*"
docinfo => true
}
}
output {
elasticsearch {
hosts => ["http://127.0.0.1:9200"]
index => "%{[@metadata][_index]}"
}
}
EOF
/usr/share/logstash/bin/logstash -f transfer_es.conf
31. youtube-dl
31.1. 使用实例
youtube-dl --sub-lang en --write-sub --sub-format srt https://www.youtube.com/watch?v=ptVqRCRPN9I
youtube-dl --limit-rate 10M --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl --ratelimit 1M --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl -r 20k --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl -r 20k --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl -r 1m --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl -r 1M --ignore-errors --convert-subs srt -f 137+140 --sub-lang en --write-sub 'https://www.youtube.com/watch?v=ptVqRCRPN9I'
youtube-dl -k --ignore-errors --convert-subs srt --write-auto-sub --batch-file sub.list
youtube-dl -k --ignore-errors --convert-subs srt --write-auto-sub -w --batch-file sub.list
youtube-dl -s -k --ignore-errors --convert-subs srt --write-auto-sub -w --batch-file sub.list
youtube-dl --skip-download -k --ignore-errors --convert-subs srt --write-auto-sub--batch-file sub.list
youtube-dl --skip-download -k --ignore-errors --convert-subs srt --write-auto-sub --batch-file sub.list
youtube-dl -k -r 10m --ignore-errors --write-auto-sub --convert-subs srt -f 137+140 'https://www.youtube.com/user/theofficialpeppa/videos'
youtube-dl --write-auto-sub --convert-subs srt -f 18 'https://www.youtube.com/watch?v=ZczS3DbCDwU'
youtube-dl -F 'https://www.youtube.com/user/theofficialpeppa/videos'
youtube-dl -F 'https://www.youtube.com/watch?v=ZczS3DbCDwU'
youtube-dl --write-auto-sub --convert-subs srt -f 135+140 'https://www.youtube.com/watch?v=ZczS3DbCDwU'
youtube-dl --write-auto-sub --convert-subs srt -f 135+140 'https://www.youtube.com/watch?v=ZczS3DbCDwU'
youtube-dl -k --ignore-errors --convert-subs srt -f 137+140 -j --sub-lang en --write-sub 'https://www.youtube.com/user/rachelsenglish/videos'
youtube-dl -F 'https://www.youtube.com/watch?v=qKs6L92qoKo'
youtube-dl -f 22 'https://www.youtube.com/watch?v=qKs6L92qoKo'
youtube-dl -F 'https://www.youtube.com/watch?v=OC6AFSZLtnk&list=PLsVSF-hJhvBKHs3gYB90seTLUwZW0qZUN&index=7'
youtube-dl -F 'https://www.youtube.com/watch?v=iBKOVdhR22c&list=PLsVSF-hJhvBKHs3gYB90seTLUwZW0qZUN&index=6'
youtube-dl -F 'https://www.youtube.com/watch?v=OC6AFSZLtnk'
youtube-dl -L 'https://www.youtube.com/watch?v=OC6AFSZLtnk'
youtube-dl -F 'https://www.youtube.com/watch?v=OC6AFSZLtnk'
youtube-dl -U
youtube-dl -F 'https://www.youtube.com/watch?v=OC6AFSZLtnk'
youtube-dl -f137+140 'https://www.youtube.com/watch?v=OC6AFSZLtnk'
youtube-dl -F 'https://www.youtube.com/watch?v=lrDlTEbHw3g'
youtube-dl -f 137+140 'https://www.youtube.com/watch?v=lrDlTEbHw3g'
youtube-dl -U to update
youtube-dl -f 137+140 'https://www.youtube.com/watch?v=lrDlTEbHw3g'
32. maven
32.1. 安装配置
32.1.1. 全局源
cat << EOF > ~/.m2/settings.xml
<settings>
<mirrors>
<mirror>
<id>aliyun</id>
<name>Aliyun Central</name>
<url>http://maven.aliyun.com/nexus/content/groups/public/</url>
<mirrorOf>central</mirrorOf>
</mirror>
</mirrors>
</settings>
EOF
32.2. 使用方法
32.2.1. Build Lifecycle
- mvn clean
-
清除
- mvn compile
-
编译,compile the source code of the project
- mvn validate
-
验证mvn配置,validate the project is correct and all necessary information is available
- mvn test
-
运行单元测试,test the compiled source code using a suitable unit testing framework. These tests should not require the code be packaged or deployed
- mvn verify
-
验证编译后的程序,run any checks on results of integration tests to ensure quality criteria are met
- mvn install
-
安装应用到maven目录,install the package into the local repository, for use as a dependency in other projects locally
- mvn deploy
-
编译,done in the build environment, copies the final package to the remote repository for sharing with other developers and projects.
- mvn package
-
打包,take the compiled code and package it in its distributable format, such as a JAR.
- mvn compile war:war
-
Build a WAR file.
- mvn war:exploded
-
Create an exploded webapp in a specified directory.
- 启动springboot
-
mvn spring-boot:run
- 使用Java启动jar包
-
java -jar target/accessing-data-jpa-0.0.1-SNAPSHOT.jar
33. MongoDB
33.1. 安装配置
基于 CentOS8
33.1.1. 安装
cat > /etc/yum.repos.d/mongodb-org-4.2.repo << EOF
[mongodb-org-4.2]
name=MongoDB Repository
baseurl=https://repo.mongodb.org/yum/redhat/\$releasever/mongodb-org/4.2/x86_64/
gpgcheck=1
enabled=1
gpgkey=https://www.mongodb.org/static/pgp/server-4.2.asc
EOF
dnf install -y mongodb-org
文件目录结构
- 配置文件
-
/etc/mongod.conf (YML格式)
-
storage.dbPath: 指定数据目录,默认/var/lib/mongo -
systemLog.path: 指定日志目录,默认/var/log/mongodb -
net.port: 指定监听端口,默认27017 -
net.bindIp: 指定监听IP,默认127.0.0.1
默认情况下,只有 mongod 用户有数据目录和日志目录的读写权限。
|
33.1.2. 配置
禁用SELINUX(重启生效)
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
设置 ulimit
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
其它优化
echo 'never' > /sys/kernel/mm/transparent_hugepage/enabled
这个设置需要每次开机时设置,需要自行处理。
启用权限验证
echo 'security:' >> /etc/mongod.conf
echo ' authorization: enabled' >> /etc/mongod.conf
开机启动
-
开机启动
systemctl enable mongod -
禁用启动
systemctl disable mongod
服务管理
-
启动服务
systemctl start mongod -
查看状态
systemctl status mongod -
重启服务
systemctl restart mongod -
停止服务
systemctl stop mongod
验证服务
-
查看端口
ss -antpl|grep 27017 -
查看启动日志
grep 'waiting for connections' /var/log/mongodb/mongod.log
# grep 'waiting for connections' /var/log/mongodb/mongod.log
2019-10-24T20:41:22.920+0800 I NETWORK [initandlisten] waiting for connections on port 27017
33.1.3. 创建用户
创建root帐号
进入控制台:
# mongo
MongoDB shell version v4.2.8
connecting to: mongodb://127.0.0.1:27017/?compressors=disabled&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("62e222b7-8022-443c-b355-53d1a0dcdea0") }
MongoDB server version: 4.2.8
>
切换到 admin 数据库:
> use admin
> db.createUser(
{
user: "root",
pwd: "thcl",
roles: [ "root"]
}
)
|
切换到 admin 数据库,然后可以用 |
创建普通用户
用刚才设置的root密码登录:
# mongo -uroot -pthcl
MongoDB shell version v4.2.8
connecting to: mongodb://127.0.0.1:27017/?compressors=disabled&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("a7541379-f92f-4d68-9060-36d2f9e7839b") }
MongoDB server version: 4.2.8
---
Enable MongoDB's free cloud-based monitoring service, which will then receive and display
metrics about your deployment (disk utilization, CPU, operation statistics, etc).
The monitoring data will be available on a MongoDB website with a unique URL accessible to you
and anyone you share the URL with. MongoDB may use this information to make product
improvements and to suggest MongoDB products and deployment options to you.
To enable free monitoring, run the following command: db.enableFreeMonitoring()
To permanently disable this reminder, run the following command: db.disableFreeMonitoring()
---
>
切换到 thcl 数据库,如果不存在则自动创建:
> use thcl
> db.createUser(
{
user: "thcl",
pwd: "thcl",
roles: [ { role: "readWrite", db: "thcl" } ]
}
)
测试新用户登录:
# mongo -uthcl -pthcl thcl
MongoDB shell version v4.2.8
connecting to: mongodb://127.0.0.1:27017/thcl?compressors=disabled&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("509c1c6f-55c6-406e-ab13-3e8deb76bd66") }
MongoDB server version: 4.2.8
> db
thcl
>
34. Linux Wifi Driver
34.1. TL_WDN5200H
34.1.1. CentOS8 安装驱动
dnf install -y mlocate vim pciutils usbutils
dnf install -y glibc-locale-source
localedef -c -f UTF-8 -i zh_CN zh_CN.UTF-8
dnf install -y git make gcc kernel-devel elfutils-libelf-devel bc usb_modeswitch
git clone https://github.com/brektrou/rtl8821CU
cd rtl8821CU
make -j4
make install
modprobe 8821cu
echo SELINUX=disabled>/etc/selinux/config
echo SELINUXTYPE=targeted>>/etc/selinux/config
cat <<EOF > /etc/sysconfig/modules/rtl8821cu.modules
#!/bin/sh
modinfo /usr/lib/modules/\$(uname -r)/kernel/drivers/net/wireless/realtek/rtl8821cu/8821cu.ko 8821cu > /dev/null 2>&1
if [ \$? -eq 0 ]; then
/sbin/modprobe 8821cu
fi
EOF
lsusb|grep Realtek|grep 1a2b
usb_modeswitch -KW -v 0bda -p 1a2b
dnf install -y NetworkManager-wifi
# nmcli connection show NAME UUID TYPE DEVICE enp2s0 85631024-b228-4294-bccc-85238ebf288d ethernet --
# nmcli dev status DEVICE TYPE STATE CONNECTION wlp0s18f2u2 wifi unmanaged gc enp2s0 ethernet unavailable -- lo loopback unmanaged --
nmcli device set wlp0s29u1u8 managed yes
# nmcli dev wifi list
IN-USE SSID MODE CHAN RATE SIGNAL BARS SECURITY
成都极客营 Infra 6 270 Mbit/s 100 ▂▄▆█ WPA1 WPA2
成都极客营2 Infra 11 130 Mbit/s 100 ▂▄▆█ WPA1 WPA2
成都极客营_5G Infra 153 540 Mbit/s 100 ▂▄▆█ WPA1 WPA2
成都极客营2_5G Infra 157 270 Mbit/s 99 ▂▄▆█ WPA1 WPA2
ChinaNet-hkKn Infra 13 130 Mbit/s 87 ▂▄▆█ WPA1 WPA2
-- Infra 6 270 Mbit/s 60 ▂▄▆_ WPA2
ChinaNet-YDsX Infra 9 130 Mbit/s 57 ▂▄▆_ WPA1 WPA2
ChinaNet-9iv9 Infra 2 130 Mbit/s 54 ▂▄__ WPA1 WPA2
-- Infra 6 270 Mbit/s 50 ▂▄__ WPA2
M Infra 6 270 Mbit/s 49 ▂▄__ WPA2
42B626-TS3100series Infra 13 65 Mbit/s 49 ▂▄__ WPA2
ChinaNet-hkKn-5G Infra 36 270 Mbit/s 44 ▂▄__ WPA1 WPA2
nmcli dev wifi connect 成都极客营_5G password geek8888
nmcli connection \
add type wifi \
con-name gc \
autoconnect yes \
ssid 成都极客营_5G \
wifi-sec.key-mgmt wpa-psk \
wifi-sec.psk geek8888 \
ifname wlp0s18f2u2 \
ip4 192.168.0.4/24 \
gw4 192.168.0.1 \
ipv4.dns "223.5.5.5 223.6.6.6"
|
nmcli con up gc
nmcli device set wlp0s18f2u2 autoconnect yes
35. Kafka
35.1. 安装配置
35.1.1. Linux
安装
mkdir ~/downloads
cd ~/downloads
rm -rf kafka_2.12-2.3.1 kafka_2.12-2.3.1.tgz /usr/local/kafka_2.12-2.3.1
wget -c http://mirrors.tuna.tsinghua.edu.cn/apache/kafka/2.3.1/kafka_2.12-2.3.1.tgz
tar xf kafka_2.12-2.3.1.tgz
mv kafka_2.12-2.3.1 /usr/local/kafka_2.12-2.3.1
bin/zookeeper-server-start.sh config/zookeeper.properties
bin/kafka-server-start.sh config/server.properties
Topic
bin/kafka-topics.sh --create --bootstrap-server 192.168.2.2:9092 --replication-factor 1 --partitions 1 --topic test
bin/kafka-topics.sh --list --bootstrap-server 192.168.2.2:9092
测试
# bin/kafka-console-producer.sh --broker-list 192.168.2.2:9092 --topic test This is a message This is another message
# bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic test --from-beginning This is a message This is another message
35.1.2. Windows
bin\windows\zookeeper-server-start.bat config\zookeeper.properties
bin\windows\kafka-server-start.bat config\server.properties
bin\windows\kafka-topics.bat --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic test
bin\windows\kafka-topics.bat --list --bootstrap-server localhost:9092
bin\windows\kafka-console-producer.bat --broker-list localhost:9092 --topic test
bin\windows\kafka-console-consumer.bat --bootstrap-server 192.168.2.2:9092 --topic test --from-beginning
35.1.3. 配置
开启对外端口监听,编辑文件 config/server.properties 修改以下参数:
advertised.listeners=PLAINTEXT://0.0.0.0:9092
36. Pure-FTPd
36.1. 安装配置
36.1.1. CentOS7 安装
yum install -y epel-release
yum install -y pure-ftpd
cat << EOF > /etc/pure-ftpd/pure-ftpd.conf
AllowAnonymousFXP no
AllowUserFXP no
AltLog w3c:/var/log/pureftpd.log
AnonymousCanCreateDirs no
AnonymousCantUpload yes
AnonymousOnly no
AntiWarez yes
AutoRename no
BrokenClientsCompatibility yes
ChrootEveryone yes
CreateHomeDir no
CustomerProof no
Daemonize yes
DisplayDotFiles yes
DontResolve yes
IPV4Only yes
LimitRecursion 10000 8
MaxClientsNumber 200
MaxClientsPerIP 8
MaxDiskUsage 99
MaxIdleTime 15
MaxLoad 4
MinUID 45
PureDB /etc/pure-ftpd/pureftpd.pdb
NoAnonymous yes
NoChmod no
ProhibitDotFilesRead no
ProhibitDotFilesWrite no
SyslogFacility ftp
Umask 022:022
VerboseLog no
PassivePortRange 52000 52050
#加密通信
#0代表明文,默认值
#2代表控制链接加密但数据链接不加密
#3代表所有链接都加密
TLS 2
Bind 2121
EOF
参考:https://download.pureftpd.org/pub/pure-ftpd/doc/README.TLS
mkdir -p /etc/ssl/private
openssl dhparam -dsaparam -out /etc/ssl/private/pure-ftpd-dhparams.pem 2048
chmod 600 /etc/ssl/private/*.pem
mkdir -p /etc/pki/pure-ftpd/
openssl req -x509 -nodes -days 7300 -newkey rsa:2048 -keyout /etc/pki/pure-ftpd/pure-ftpd.pem -out /etc/pki/pure-ftpd/pure-ftpd.pem
chmod 600 /etc/pki/pure-ftpd/pure-ftpd.pem
systemctl enable pure-ftpd --now
systemctl status pure-ftpd
yum install -y pwgen
# 生成FTP随机密码
ftp_password=`pwgen -s 20`
echo $ftp_password> pw.txt
echo $ftp_password>> pw.txt
cat pw.txt
pure-pw userdel admin
pure-pw useradd admin -u nginx -g nginx -d /data/ -m < pw.txt
rm -f pw.txt
pure-pw mkdb
pure-pw show admin
yum install -y lftp
lftp -u admin,XKeJVhlCXfHdQmessy4f localhost <<EOF
set ftp:ssl-force true
set ftp:ssl-protect-data true
set ssl:verify-certificate no
mkdir test
ls
rmdir test
ls
quit
EOF
pure-pw userdel admin
pure-pw mkdb
pure-pw list
37. Shadowsocks
37.1. 安装配置
37.1.1. CentOS7
升级内核以支持 TCP BBR
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
yum install -y https://www.elrepo.org/elrepo-release-7.0-4.el7.elrepo.noarch.rpm
yum --enablerepo=elrepo-kernel install -y kernel-ml
lastest_kernel=`grep "menuentry 'CentOS Linux" /boot/grub2/grub.cfg|awk -F "'" '{print $2}'|head -n 1`
grub2-set-default "$lastest_kernel"
rm -f /boot/grub2/grub.cfg.bak
cp /boot/grub2/grub.cfg /boot/grub2/grub.cfg.bak
grub2-mkconfig -o /boot/grub2/grub.cfg
然后,重启系统。
开启 TCP BBR 塞控制算法
-
开机后执行
uname -r确认内核版本 >= 4.9 -
加载内核模块
modprobe tcp_bbr
echo "tcp_bbr" | tee --append /etc/modules-load.d/modules.conf
-
确认加载
# lsmod | grep bbr tcp_bbr 20480 31
-
设置网络参数
echo "net.core.default_qdisc=fq" >> /etc/sysctl.conf
echo "net.ipv4.tcp_congestion_control=bbr" >> /etc/sysctl.conf
sysctl -p
查看网络参数。如果结果都有 bbr,则证明你的内核已开启 BBR
# sysctl net.ipv4.tcp_available_congestion_control net.ipv4.tcp_available_congestion_control = reno cubic bbr # sysctl net.ipv4.tcp_congestion_control net.ipv4.tcp_congestion_control = bbr
37.1.2. 安装 Shadowsocks
-
更新OpenSSL证书
/etc/pki/tls/certs/ca-bundle.crt
yum update -y openssl
-
安装依赖
yum install -y python-pip python python-setuptools python-devel libffi-devel openssl-devel gcc
pip install --upgrade pip
pip install --upgrade ordereddict backport-ipaddress setuptools urllib3
pip install pyopenssl ndg-httpsclient pyasn
-
安装
Shadowsocks
pip install shadowsocks
37.1.3. 配置 Shadowsocks
-
生成配置文件
cat << EOF > /etc/shadowsocks.json
{
"server":"0.0.0.0",
"server_port":端口,
"password":"随机密码",
"timeout":300,
"method":"aes-256-cfb",
"fast_open":false,
"workers":3
}
EOF
-
生成service文件
cat <<EOF > /usr/lib/systemd/system/shadowsocks.service
[Unit]
Description=Shadowsocks Service
After=network.target
[Service]
Type=simple
User=nobody
PIDFile=/tmp/shadowsocks.pid
ExecStart=/usr/bin/ssserver -c /etc/shadowsocks.json --log-file /var/log/shadowsocks.log --pid-file /tmp/shadowsocks.pid -d start
[Install]
WantedBy=multi-user.target
EOF
-
设置文件权限
touch /var/log/shadowsocks.log
chown nobody /var/log/shadowsocks.log
-
开机启动
systemctl enable shadowsocks
systemctl start shadowsocks
systemctl status shadowsocks
-
增加 firewalld 防火墙设置
firewall-cmd --zone=public --add-port=端口/tcp --permanent
firewall-cmd --reload
-
确认 firewalld 防火墙设置
firewall-cmd --list-all
CentOS7 一键安装脚本
#!/bin/sh
mkdir ~/.ssh
echo 'ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDLGJVJI1Cqr59VH1NVQgPs08n7e/HRc2Q8AUpOWGoJpVzIgjO+ipjqwnxh3eiBd806eXIIa5OFwRm0fYfMFxBOdo3l5qGtBe82PwTotdtpcacP5Dkrn+HZ1kG+cf0BNSF5oXbTCTrqY12/T8h4035BXyRw7+MuVPiCUhydYs3RgsODA47ZR3owgjvPsayUd5MrD8gidGqv1zdyW9nQXnXB7m9Sn9Mg8rk6qBxQUbtMN9ez0BFrUGhXCkW562zhJjP5j4RLVfvL2N1bWT9EoFTCjk55pv58j+PTNEGUmu8PrU8mtgf6zQO871whTD8/H6brzaMwuB5Rd5OYkVir0BXj foo@archlinux' >> ~/.ssh/authorized_keys
chmod 600 ~/.ssh/authorized_keys
yum install -y epel-release
yum install -y pwgen vim
ss_server_port=8080
# SS密码
ss_pwd=`pwgen -n 20|head -n 1`
echo "SS密码:$ss_pwd"
# 1. 第一阶段,安装最新版内核以支持tcp_bbr
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
yum install -y https://www.elrepo.org/elrepo-release-7.el7.elrepo.noarch.rpm
yum --enablerepo=elrepo-kernel install -y kernel-ml
lastest_kernel=`grep "menuentry 'CentOS Linux" /boot/grub2/grub.cfg|awk -F "'" '{print $2}'|head -n 1`
grub2-set-default "$lastest_kernel"
rm -f /boot/grub2/grub.cfg.bak
cp /boot/grub2/grub.cfg /boot/grub2/grub.cfg.bak
grub2-mkconfig -o /boot/grub2/grub.cfg
#reboot
# 2. 第二阶段,设置并启用tcp_bbr模块及其参数
# 开机后 uname -r 看看是不是内核 >= 4.9。
uname -r
# 加载内核模块
modprobe tcp_bbr
echo "tcp_bbr" | tee --append /etc/modules-load.d/modules.conf
# 确认加载
lsmod | grep bbr
# 设置网络参数
echo "net.core.default_qdisc=fq" >> /etc/sysctl.conf
echo "net.ipv4.tcp_congestion_control=bbr" >> /etc/sysctl.conf
# 生效配置
sysctl -p
# 检验参数。如果结果都有 bbr,则证明你的内核已开启 BBR。
sysctl net.ipv4.tcp_available_congestion_control
sysctl net.ipv4.tcp_congestion_control
# 3. 第三阶段,安装ss服务
# 更新OpenSSL证书 /etc/pki/tls/certs/ca-bundle.crt
yum update -y openssl
# 安装ss依赖
yum install -y python-pip python python-setuptools python-devel libffi-devel openssl-devel gcc
pip install --upgrade pip
pip install --upgrade ordereddict backport-ipaddress setuptools urllib3
pip install pyopenssl ndg-httpsclient pyasn
pip install shadowsocks
# 配置文件
cat << EOF > /etc/shadowsocks.json
{
"server":"0.0.0.0",
"server_port":$ss_server_port,
"password":"$ss_pwd",
"timeout":300,
"method":"aes-256-cfb",
"fast_open":false,
"workers":3
}
EOF
# 服务文件
cat <<EOF > /usr/lib/systemd/system/shadowsocks.service
[Unit]
Description=Shadowsocks Service
After=network.target
[Service]
Type=simple
User=nobody
PIDFile=/tmp/shadowsocks.pid
ExecStart=/usr/bin/ssserver -c /etc/shadowsocks.json --log-file /var/log/shadowsocks.log --pid-file /tmp/shadowsocks.pid -d start
[Install]
WantedBy=multi-user.target
EOF
# 设置文件权限
touch /var/log/shadowsocks.log
chown nobody /var/log/shadowsocks.log
# 设置开机启动
systemctl enable shadowsocks
systemctl start shadowsocks
systemctl status shadowsocks
# (可选)增加 firewalld 防火墙设置
firewall-cmd --zone=public --add-port=$ss_server_port/tcp --permanent
firewall-cmd --reload
# 查看确认
firewall-cmd --list-all
# 最后,重启系统生效。
38. Aliyun
38.1. CLI工具
38.1.1. 安装
cd ~/Downloads
wget -O aliyun-cli-linux-latest-amd64.tgz https://aliyuncli.alicdn.com/aliyun-cli-linux-latest-amd64.tgz
tar xf aliyun-cli-linux-latest-amd64.tgz
mv aliyun /usr/local/bin
aliyun help
38.1.2. 配置凭证
- 在控制台启用 AccessKey
- 常见的通用选项如下,其适用于任一凭证类型
-
-
--profile(必选):指定配置名称。如果指定的配置存在,则修改配置。若不存在,则创建配置。
-
--region(必选):指定默认区域的RegionId。阿里云支持的RegionId,请参见 地域和可用区。
-
--language:指定阿里云CLI显示的语言,默认为英语。
-
--mode:指定配置的凭证类型,默认为AK。
-
aliyun configure set \
--profile default \
--mode AK \
--region ap-northeast-1 \
--access-key-id AccessKeyId字符串 \
--access-key-secret AccessKeySecret字符串
ap-northeast-1 为日本东京
|
aliyun configure --profile default
[mk@archlinux ~]$ aliyun configure list Profile | Credential | Valid | Region | Language --------- | ------------------ | ------- | ---------------- | -------- default * | AK:***MWZ | Valid | cd | zh
[mk@archlinux ~]$ aliyun help
阿里云CLI命令行工具 3.0.32
Usage:
aliyun <product> <operation> [--parameter1 value1 --parameter2 value2 ...]
Flags:
--mode 使用 `--mode {AK|StsToken|RamRoleArn|EcsRamRole|RsaKeyPair|RamRoleArnWithRoleName}` 指定认证方式
--profile,-p 使用 `--profile <profileName>` 指定操作的配置集
--language 使用 `--language [en|zh]` 来指定语言
--region 使用 `--region <regionId>` 来指定访问大区
......
Sample:
aliyun ecs DescribeRegions
Products:
......
cdn CDN
csb 云服务总线 CSB
dds 云数据库 MongoDB 版
dm 邮件推送
domain 域名
domain-intl 域名
drds 分布式关系型数据库服务 DRDS
eci Elastic Container Instances
ecs 云服务器 ECS
edas 企业级分布式应用服务EDAS
elasticsearch elasticsearch
......
Use `aliyun --help` for more information.
38.1.3. ECS
aliyun ecs DescribeRegions
{
"RequestId": "076E9C9E-FE75-4136-BB4A-6E6A2212F2B3",
"Regions": {
"Region": [
{
"RegionId": "cn-qingdao",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "华北 1"
},
{
"RegionId": "cn-beijing",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "华北 2"
},
{
"RegionId": "cn-zhangjiakou",
"RegionEndpoint": "ecs.cn-zhangjiakou.aliyuncs.com",
"LocalName": "华北 3"
},
{
"RegionId": "cn-huhehaote",
"RegionEndpoint": "ecs.cn-huhehaote.aliyuncs.com",
"LocalName": "华北 5"
},
{
"RegionId": "cn-hangzhou",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "华东 1"
},
{
"RegionId": "cn-shanghai",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "华东 2"
},
{
"RegionId": "cn-shenzhen",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "华南 1"
},
{
"RegionId": "cn-heyuan",
"RegionEndpoint": "ecs.cn-heyuan.aliyuncs.com",
"LocalName": "华南2(河源)"
},
{
"RegionId": "cn-chengdu",
"RegionEndpoint": "ecs.cn-chengdu.aliyuncs.com",
"LocalName": "西南1(成都)"
},
{
"RegionId": "cn-hongkong",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "香港"
},
{
"RegionId": "ap-northeast-1",
"RegionEndpoint": "ecs.ap-northeast-1.aliyuncs.com",
"LocalName": "亚太东北 1 (东京)"
},
{
"RegionId": "ap-southeast-1",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "亚太东南 1 (新加坡)"
},
{
"RegionId": "ap-southeast-2",
"RegionEndpoint": "ecs.ap-southeast-2.aliyuncs.com",
"LocalName": "亚太东南 2 (悉尼)"
},
{
"RegionId": "ap-southeast-3",
"RegionEndpoint": "ecs.ap-southeast-3.aliyuncs.com",
"LocalName": "亚太东南 3 (吉隆坡)"
},
{
"RegionId": "ap-southeast-5",
"RegionEndpoint": "ecs.ap-southeast-5.aliyuncs.com",
"LocalName": "亚太东南 5 (雅加达)"
},
{
"RegionId": "ap-south-1",
"RegionEndpoint": "ecs.ap-south-1.aliyuncs.com",
"LocalName": "亚太南部 1 (孟买)"
},
{
"RegionId": "us-east-1",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "美国东部 1 (弗吉尼亚)"
},
{
"RegionId": "us-west-1",
"RegionEndpoint": "ecs.aliyuncs.com",
"LocalName": "美国西部 1 (硅谷)"
},
{
"RegionId": "eu-west-1",
"RegionEndpoint": "ecs.eu-west-1.aliyuncs.com",
"LocalName": "英国 (伦敦)"
},
{
"RegionId": "me-east-1",
"RegionEndpoint": "ecs.me-east-1.aliyuncs.com",
"LocalName": "中东东部 1 (迪拜)"
},
{
"RegionId": "eu-central-1",
"RegionEndpoint": "ecs.eu-central-1.aliyuncs.com",
"LocalName": "欧洲中部 1 (法兰克福)"
}
]
}
}
aliyun ecs DescribeImages --RegionId ap-northeast-1 --OSType linux --ImageOwnerAlias system --Architecture x86_64 --PageNumber 1 --PageSize 100|grep "\"ImageId\": \"centos_7"
"ImageId": "centos_7_7_x64_20G_alibase_20191225.vhd", <- 选择这个最新的 "ImageId": "centos_7_06_64_20G_alibase_20190711.vhd", "ImageId": "centos_7_05_64_20G_alibase_20181210.vhd", "ImageId": "centos_7_04_64_20G_alibase_201701015.vhd", "ImageId": "centos_7_03_64_20G_alibase_20170818.vhd", "ImageId": "centos_7_02_64_20G_alibase_20170818.vhd",
aliyun ecs DescribeSecurityGroups --RegionId ap-northeast-1
{
"PageNumber": 1,
"TotalCount": 1,
"PageSize": 10,
"RegionId": "ap-northeast-1",
"RequestId": "2109C24F-0E7C-4389-9FD4-D87B08743464",
"SecurityGroups": {
"SecurityGroup": [
{
"CreationTime": "2017-10-25T13:07:04Z",
"Tags": {
"Tag": []
},
"SecurityGroupId": "sg-6wegwuj68ios9g96a2jc",
"SecurityGroupName": "sg-6wegwuj68ios9g96a2jc",
"Description": "System created security group.",
"ResourceGroupId": "",
"SecurityGroupType": "normal",
"VpcId": "vpc-6wed35p0sjdxc6j1v6vvd"
}
]
}
}
| 如果没有安全组可以在控制台网页创建或使用CreateSecurityGroup命令 |
aliyun ecs DescribeInstanceTypes
阿里云接口返回内容太大,很可能超时无返回。
在ECS页面可以找到最便宜的规格:ecs.t6-c4m1.large
aliyun ecs DescribeKeyPairs
{
"PageNumber": 1,
"TotalCount": 1,
"KeyPairs": {
"KeyPair": [
{
"CreationTime": "2017-10-25T13:04Z",
"ResourceGroupId": "",
"KeyPairFingerPrint": "47228f3070af0acfc4cab083a4b80d2f",
"KeyPairName": "foo"
}
]
},
"PageSize": 10,
"RequestId": "AA030D68-AD65-4BC8-8461-9CBBA60C8076"
}
aliyun ecs DescribeVpcs
{
"PageNumber": 1,
"Vpcs": {
"Vpc": [
{
"CreationTime": "2017-10-25T13:06:51Z",
"VpcName": "",
"CidrBlock": "172.24.0.0/16",
"Status": "Available",
"Description": "System created default VPC.",
"VSwitchIds": {
"VSwitchId": [
"vsw-6wen30e1w0ibib1agn5jh",
"vsw-6web5fosievcuw0ooa4ro"
]
},
"IsDefault": true,
"UserCidrs": {
"UserCidr": []
},
"RegionId": "ap-northeast-1",
"VRouterId": "vrt-6weqrbdxu8jewhorl0nve",
"VpcId": "vpc-6wed35p0sjdxc6j1v6vvd"
}
]
},
"TotalCount": 1,
"PageSize": 10,
"RequestId": "78B7D596-CA41-4311-8D58-03D320B86CFA"
}
创建ECS
aliyun ecs CreateInstance \
--DryRun=True \
--RegionId=ap-northeast-1 \
--ImageId=centos_7_7_x64_20G_alibase_20191225.vhd \
--SecurityGroupId=sg-6wegwuj68ios9g96a2jc \
--InstanceName=centos7_20200218n1 \
--HostName=geek0218n1 \
--InternetChargeType=PayByTraffic \
--AutoRenew=false \
--InternetMaxBandwidthOut=5 \
--InstanceChargeType=PostPaid \
--InstanceType=ecs.t6-c4m1.large \
--KeyPairName=foo \
--SecurityEnhancementStrategy=active \
--IoOptimized=optimized \
--VSwitchId=vsw-6wen30e1w0ibib1agn5jh
|
接口返回如下信息,则表示成功。移除测试参数 DryRun 即可创建ECS
ERROR: SDK.ServerError ErrorCode: DryRunOperation Recommend: RequestId: 7CCCB886-1D4F-452E-BCA3-3C9C358D1B2A Message: Request validation has been passed with DryRun flag set.
创建ECS接口返回信息:
{
"InstanceId": "i-6wedke5p0mk9pnk5gwxd",
"RequestId": "5EA85718-F724-42BE-BEB5-12531DC14544"
}
分配公网IP地址:
aliyun ecs AllocatePublicIpAddress --InstanceId i-6wedke5p0mk9pnk5gwxd
{
"RequestId": "B271BB0E-801E-4B7C-8BCC-38EF7FDB2D39",
"IpAddress": "47.74.5.91"
}
实例管理
启动ECS实例:
aliyun ecs StartInstance --InstanceId i-6wedke5p0mk9pnk5gwxd
停止ECS实例:
aliyun ecs StopInstance --InstanceId i-6wedke5p0mk9pnk5gwxd
删除ECS实例
aliyun ecs DeleteInstance --InstanceId i-6wedke5p0mk9pnk5gwxd
38.1.4. 域名解析
获取解析记录列表
aliyun alidns DescribeDomainRecords --DomainName xxx.com
获取解析记录信息
aliyun alidns DescribeDomainRecordInfo --help
添加解析记录
--DomainName String Required --RR String Required --Type String Required --Value String Required --AccessKeyId String Optional --Lang String Optional --Line String Optional --Priority Long Optional --TTL Long Optional --UserClientIp String Optional
aliyun alidns AddDomainRecord --DomainName xxx.com -RR _acme-challenge --TTL 600 --Type TXT --Value test
删除解析记录
aliyun alidns DeleteDomainRecord --RecordId
修改解析记录
aliyun alidns UpdateDomainRecord --help
获取子域名解析记录列表
可用来判断域名解析是否存在
aliyun alidns DescribeSubDomainRecords --SubDomain _acme-challenge.xxx.com
echo '1='$1 >> /root/test.log
echo '2='$2 >> /root/test.log
domain = os.environ['CERTBOT_DOMAIN']
echo 'domain='$domain >> /root/test.log
value = os.environ['CERTBOT_VALIDATION']
echo 'value='$value >> /root/test.log
if [ "$1" = "--auth" ]; then
echo "添加记录" >> /root/test.log
#aliyun alidns UpdateDomainRecord --RecordId 19632471762415616 --RR _acme-challenge --Type TXT --Value test
else
echo "删除记录" >> /root/test.log
fi
aliyun alidns UpdateDomainRecord --RecordId 19632471762415616 --RR _acme-challenge --Type TXT --Value test
39. RabbitMQ
39.1. 安装配置
39.1.1. CentOS 8
安装RabbitMQ
dnf install -y epel-release
dnf install -y erlang
rpm --import https://packagecloud.io/rabbitmq/rabbitmq-server/gpgkey
rpm --import https://packagecloud.io/gpg.key
curl -s https://packagecloud.io/install/repositories/rabbitmq/rabbitmq-server/script.rpm.sh | bash
dnf install -y rabbitmq-server
systemctl enable rabbitmq-server
参数优化
-
设置用户级别文件描述符限制:
echo "* soft nofile 65535" >> /etc/security/limits.conf
echo "* hard nofile 65535" >> /etc/security/limits.conf
验证设置:
[root@iZbp1c9kh902xmn0dupa11Z ~]# ulimit -n 65535
如果 ulimit -n 结果不一致,建议重启系统。
|
-
设置系统级别文件描述符限制:
echo "fs.file-max = 100000" >> /etc/sysctl.conf
sysctl -p
验证设置:
[root@iZbp1c9kh902xmn0dupa11Z ~]# sysctl fs.file-max fs.file-max = 100000
启动RabbitMQ服务
systemctl start rabbitmq-server
查看RabbitMQ服务状态
[root@iZbp1c9kh902xmn0dupa11Z ~]# rabbitmqctl status Status of node rabbit@iZbp1c9kh902xmn0dupa11Z ... Runtime OS PID: 3375 OS: Linux Uptime (seconds): 509 RabbitMQ version: 3.8.2 Node name: rabbit@iZbp1c9kh902xmn0dupa11Z Erlang configuration: Erlang/OTP 22 [erts-10.4.4] [source] [64-bit] [smp:2:2] [ds:2:2:10] [async-threads:64] [hipe] Erlang processes: 253 used, 1048576 limit Scheduler run queue: 1 Cluster heartbeat timeout (net_ticktime): 60 Plugins Enabled plugin file: /etc/rabbitmq/enabled_plugins Enabled plugins: Data directory Node data directory: /var/lib/rabbitmq/mnesia/rabbit@iZbp1c9kh902xmn0dupa11Z Config files Log file(s) * /var/log/rabbitmq/rabbit@iZbp1c9kh902xmn0dupa11Z.log * /var/log/rabbitmq/rabbit@iZbp1c9kh902xmn0dupa11Z_upgrade.log Alarms (none) Memory Calculation strategy: rss Memory high watermark setting: 0.4 of available memory, computed to: 1.5073 gb other_proc: 0.0286 gb (31.61 %) code: 0.0263 gb (29.15 %) other_system: 0.0118 gb (13.03 %) reserved_unallocated: 0.0106 gb (11.72 %) allocated_unused: 0.0087 gb (9.63 %) other_ets: 0.0027 gb (3.0 %) atom: 0.0012 gb (1.35 %) metrics: 0.0002 gb (0.22 %) binary: 0.0001 gb (0.11 %) mnesia: 0.0001 gb (0.09 %) quorum_ets: 0.0 gb (0.05 %) msg_index: 0.0 gb (0.03 %) plugins: 0.0 gb (0.01 %) connection_channels: 0.0 gb (0.0 %) connection_other: 0.0 gb (0.0 %) connection_readers: 0.0 gb (0.0 %) connection_writers: 0.0 gb (0.0 %) mgmt_db: 0.0 gb (0.0 %) queue_procs: 0.0 gb (0.0 %) queue_slave_procs: 0.0 gb (0.0 %) quorum_queue_procs: 0.0 gb (0.0 %) File Descriptors Total: 2, limit: 32671 Sockets: 0, limit: 29401 Free Disk Space Low free disk space watermark: 0.05 gb Free disk space: 39.7456 gb Totals Connection count: 0 Queue count: 0 Virtual host count: 1 Listeners Interface: [::], port: 25672, protocol: clustering, purpose: inter-node and CLI tool communication Interface: [::], port: 5672, protocol: amqp, purpose: AMQP 0-9-1 and AMQP 1.0
[root@iZbp1c9kh902xmn0dupa11Z ~]# rabbitmqctl status|grep limit Erlang processes: 253 used, 1048576 limit Total: 2, limit: 32671 Sockets: 0, limit: 29401
基本配置
rabbitmqctl delete_user guest
日志
journalctl --system | grep rabbitmq
[root@iZbp1c9kh902xmn0dupa11Z ~]# journalctl --system | grep rabbitmq Mar 09 14:54:03 iZbp1c9kh902xmn0dupa11Z groupadd[2811]: group added to /etc/group: name=rabbitmq, GID=985 Mar 09 14:54:03 iZbp1c9kh902xmn0dupa11Z groupadd[2811]: group added to /etc/gshadow: name=rabbitmq Mar 09 14:54:03 iZbp1c9kh902xmn0dupa11Z groupadd[2811]: new group: name=rabbitmq, GID=985 Mar 09 14:54:03 iZbp1c9kh902xmn0dupa11Z useradd[2818]: new user: name=rabbitmq, UID=989, GID=985, home=/var/lib/rabbitmq, shell=/sbin/nologin Mar 09 14:54:04 iZbp1c9kh902xmn0dupa11Z systemd-tmpfiles[2909]: [/usr/lib/tmpfiles.d/rabbitmq-server.conf:1] Line references path below legacy directory /var/run/, updating /var/run/rabbitmq → /run/rabbitmq; please update the tmpfiles.d/ drop-in file accordingly. Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: ## ## RabbitMQ 3.8.2 Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: ## ## Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: ########## Copyright (c) 2007-2019 Pivotal Software, Inc. Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: ###### ## Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: ########## Licensed under the MPL 1.1. Website: https://rabbitmq.com Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Doc guides: https://rabbitmq.com/documentation.html Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Support: https://rabbitmq.com/contact.html Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Tutorials: https://rabbitmq.com/getstarted.html Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Monitoring: https://rabbitmq.com/monitoring.html Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Logs: /var/log/rabbitmq/rabbit@iZbp1c9kh902xmn0dupa11Z.log Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: /var/log/rabbitmq/rabbit@iZbp1c9kh902xmn0dupa11Z_upgrade.log Mar 09 14:54:28 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Config file(s): (none) Mar 09 14:54:29 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: Starting broker...systemd unit for activation check: "rabbitmq-server.service" Mar 09 14:54:29 iZbp1c9kh902xmn0dupa11Z rabbitmq-server[3375]: completed with 0 plugins. Mar 09 14:56:58 iZbp1c9kh902xmn0dupa11Z dnf[3818]: rabbitmq_rabbitmq-server 72 B/s | 833 B 00:11 Mar 09 14:57:10 iZbp1c9kh902xmn0dupa11Z dnf[3818]: rabbitmq_rabbitmq-server-source 64 B/s | 819 B 00:12 Mar 09 15:00:41 iZbp1c9kh902xmn0dupa11Z runuser[4038]: pam_unix(runuser:session): session opened for user rabbitmq by root(uid=0) Mar 09 15:00:41 iZbp1c9kh902xmn0dupa11Z runuser[4038]: pam_unix(runuser:session): session closed for user rabbitmq Mar 09 15:01:29 iZbp1c9kh902xmn0dupa11Z systemd-tmpfiles[4198]: [/usr/lib/tmpfiles.d/rabbitmq-server.conf:1] Line references path below legacy directory /var/run/, updating /var/run/rabbitmq → /run/rabbitmq; please update the tmpfiles.d/ drop-in file accordingly.
管理工具
rabbitmq-plugins enable rabbitmq_management
[root@iZbp1c9kh902xmn0dupa11Z ~]# rabbitmq-plugins enable rabbitmq_management Enabling plugins on node rabbit@iZbp1c9kh902xmn0dupa11Z: rabbitmq_management The following plugins have been configured: rabbitmq_management rabbitmq_management_agent rabbitmq_mqtt rabbitmq_web_dispatch Applying plugin configuration to rabbit@iZbp1c9kh902xmn0dupa11Z... The following plugins have been enabled: rabbitmq_management rabbitmq_management_agent rabbitmq_web_dispatch started 3 plugins.
创建管理员用户:
rabbitmqctl add_user thcl oN3soB7xasaizieG0pop rabbitmqctl set_user_tags thcl administrator rabbitmqctl set_permissions -p / thcl thcl ".*" ".*"
管理界面访问地址: http://localhost:15672/
39.2. 支持MQTT
rabbitmq-plugins enable rabbitmq_mqtt
[root@iZbp1c9kh902xmn0dupa11Z ~]# rabbitmq-plugins enable rabbitmq_mqtt Enabling plugins on node rabbit@iZbp1c9kh902xmn0dupa11Z: rabbitmq_mqtt The following plugins have been configured: rabbitmq_mqtt Applying plugin configuration to rabbit@iZbp1c9kh902xmn0dupa11Z... The following plugins have been enabled: rabbitmq_mqtt started 1 plugins.
39.2.1. 新增虚拟主机
rabbitmqctl add_vhost device
39.2.2. 为MQTT连接创建新用户
用户只能写,不能配置,不能读。
rabbitmqctl add_user device oojah5ohZoamayae5eeg
rabbitmqctl set_permissions -p device device "^$" ".*" "^$"
rabbitmqctl set_user_tags device none
40. Rust
40.1. 安装Rust
40.1.1. Arch Linux
sudo pacman -S rustup
# 启用 TUNA 源
export RUSTUP_DIST_SERVER=https://mirrors.tuna.tsinghua.edu.cn/rustup
echo 'export RUSTUP_DIST_SERVER=https://mirrors.tuna.tsinghua.edu.cn/rustup' >> ~/.bash_profile
rustup install stable
rustup default stable
rustup toolchain list
rustup update
40.2. rustup
- 官方文档
40.2.1. rustup参数
pacman 方式安装的 rustup 不能使用 rustup self update 更新 rustup。只能通过 pacman 更新。
|
rustup -h 帮助信息:
rustup 1.23.1 (2020-12-18)
The Rust toolchain installer
USAGE:
rustup [FLAGS] [+toolchain] <SUBCOMMAND>
FLAGS:
-v, --verbose Enable verbose output
-q, --quiet Disable progress output
-h, --help Prints help information
-V, --version Prints version information
ARGS:
<+toolchain> release channel (e.g. +stable) or custom toolchain to set override
SUBCOMMANDS:
show Show the active and installed toolchains or profiles
update Update Rust toolchains and rustup
check Check for updates to Rust toolchains
default Set the default toolchain
toolchain Modify or query the installed toolchains
target Modify a toolchain's supported targets
component Modify a toolchain's installed components
override Modify directory toolchain overrides
run Run a command with an environment configured for a given toolchain
which Display which binary will be run for a given command
doc Open the documentation for the current toolchain
man View the man page for a given command
self Modify the rustup installation
set Alter rustup settings
completions Generate tab-completion scripts for your shell
help Prints this message or the help of the given subcommand(s)
DISCUSSION:
rustup installs The Rust Programming Language from the official
release channels, enabling you to easily switch between stable,
beta, and nightly compilers and keep them updated. It makes
cross-compiling simpler with binary builds of the standard library
for common platforms.
If you are new to Rust consider running `rustup doc --book` to
learn Rust.
rustup toolchain -h 帮助信息:
rustup-toolchain
Modify or query the installed toolchains
USAGE:
rustup toolchain <SUBCOMMAND>
FLAGS:
-h, --help Prints help information
SUBCOMMANDS:
list List installed toolchains
install Install or update a given toolchain
uninstall Uninstall a toolchain
link Create a custom toolchain by symlinking to a directory
help Prints this message or the help of the given subcommand(s)
DISCUSSION:
Many `rustup` commands deal with *toolchains*, a single
installation of the Rust compiler. `rustup` supports multiple
types of toolchains. The most basic track the official release
channels: 'stable', 'beta' and 'nightly'; but `rustup` can also
install toolchains from the official archives, for alternate host
platforms, and from local builds.
Standard release channel toolchain names have the following form:
<channel>[-<date>][-<host>]
<channel> = stable|beta|nightly|<major.minor>|<major.minor.patch>
<date> = YYYY-MM-DD
<host> = <target-triple>
'channel' is a named release channel, a major and minor version
number such as `1.42`, or a fully specified version number, such
as `1.42.0`. Channel names can be optionally appended with an
archive date, as in `nightly-2014-12-18`, in which case the
toolchain is downloaded from the archive for that date.
The host may be specified as a target triple. This is most useful
for installing a 32-bit compiler on a 64-bit platform, or for
installing the [MSVC-based toolchain] on Windows. For example:
$ rustup toolchain install stable-x86_64-pc-windows-msvc
For convenience, omitted elements of the target triple will be
inferred, so the above could be written:
$ rustup toolchain install stable-msvc
The `rustup default` command may be used to both install and set
the desired toolchain as default in a single command:
$ rustup default stable-msvc
rustup can also manage symlinked local toolchain builds, which are
often used for developing Rust itself. For more information see
`rustup toolchain help link`.
40.2.2. rustup源设置
export RUSTUP_DIST_SERVER=https://mirrors.tuna.tsinghua.edu.cn/rustup
echo 'export RUSTUP_DIST_SERVER=https://mirrors.tuna.tsinghua.edu.cn/rustup' >> ~/.bash_profile
40.2.3. rustup实践
用默认浏览器打开 "The Rust Programming Language" 文档:
rustup doc --book
安装工具链:
rustup install stable
或
rustup toolchain install stable
设置默认工具链:
rustup default stable
查询当前安装的工具链:
rustup toolchain list
移除指定的工具链:
rustup toolchain uninstall 1.48-x86_64-unknown-linux-gnu
更新工具链:
rustup update
40.2.4. FAQ
rustup doc --book 执行无响应
执行 rustup doc --book 通过默认浏览器查看离线文档,命令返回值为0(正常),浏览器未打开文档。
$ rustup doc --help rustup-doc Open the documentation for the current toolchain ......
问题分析:
-
用
strace -o output.log -f rustup doc --book跟踪系统调用和信号,输出日志到文件output.log; -
分析日志最后报错信息
killed by SIGSEGV (core dumped),向上跟踪看到baidunetdi:sh3字样,猜测是百度网盘应用被设置成了默认MIME的应用;23318 statx(AT_FDCWD, "/home/lyuqiang/.rustup/toolchains/stable-x86_64-unknown-linux-gnu/share/doc/rust/html/book/index.html", AT_STATX_SYNC_AS_STAT|AT_SYMLINK_NOFOLLOW|AT_NO_AUTOMOUNT, STATX_ALL, {stx_mask=STATX_ALL|STATX_MNT_ID, stx_attributes=0, stx_mode=S_IFREG|0644, stx_size=27034, ...}) = 0 23318 openat(AT_FDCWD, "/home/lyuqiang/.rustup/toolchains/stable-x86_64-unknown-linux-gnu/share/doc/rust/html/book/index.html", O_RDONLY|O_NOATIME) = 8 23318 read(8, "<!DOCTYPE HTML>\n<html lang=\"en\" "..., 4096) = 4096 23318 close(8) = 0 ...... ...... ...... ...... 23315 openat(AT_FDCWD, "/usr/share/applications/baidunetdisk.desktop", O_RDONLY) = 8 23315 newfstatat(8, "", {st_mode=S_IFREG|0664, st_size=252, ...}, AT_EMPTY_PATH) = 0 23315 read(8, "[Desktop Entry]\nName=baidunetdis"..., 4096) = 252 23315 read(8, "", 4096) = 0 23315 close(8) = 0 23315 access("/usr/lib/baidunetdisk/baidunetdisk", X_OK) = 0 23315 getuid() = 1000 23315 newfstatat(AT_FDCWD, "/usr/lib/baidunetdisk/baidunetdisk", {st_mode=S_IFREG|0755, st_size=129796744, ...}, 0) = 0 23315 openat(AT_FDCWD, "/usr/share/locale/locale.alias", O_RDONLY) = 8 23315 newfstatat(8, "", {st_mode=S_IFREG|0644, st_size=2998, ...}, AT_EMPTY_PATH) = 0 23315 read(8, "# Locale name alias data base.\n#"..., 4096) = 2998 ...... ...... 23473 prctl(PR_SET_NAME, "baidunetdi:sh3" <unfinished ...> ...... ...... 23443 +++ killed by SIGSEGV (core dumped) +++ 23447 +++ killed by SIGSEGV (core dumped) +++ 23449 +++ killed by SIGSEGV (core dumped) +++ 23446 +++ killed by SIGSEGV (core dumped) +++ 23451 +++ killed by SIGSEGV (core dumped) +++ 23445 +++ killed by SIGSEGV (core dumped) +++ -
确认
text/html的MIME设置,确实baidunetdisk.desktop是默认设置;$ gio mime text/html 用于“text/html”的默认应用程序:baidunetdisk.desktop 已注册的应用程序: google-chrome.desktop firefox.desktop calibre-ebook-edit.desktop org.gnome.Epiphany.desktop org.gnome.gedit.desktop code-oss.desktop aegisub.desktop vim.desktop 推荐的应用程序: google-chrome.desktop firefox.desktop calibre-ebook-edit.desktop org.gnome.Epiphany.desktop -
执行命令
gio mime text/html google-chrome.desktop重置MIME设置;$ gio mime text/html google-chrome.desktop Set google-chrome.desktop as the default for text/html
-
重新确认MIME设置;
$ gio mime text/html 用于“text/html”的默认应用程序:google-chrome.desktop 已注册的应用程序: google-chrome.desktop firefox.desktop calibre-ebook-edit.desktop org.gnome.Epiphany.desktop org.gnome.gedit.desktop code-oss.desktop aegisub.desktop vim.desktop 推荐的应用程序: google-chrome.desktop firefox.desktop calibre-ebook-edit.desktop org.gnome.Epiphany.desktop
OK,rustup doc --book 可以看离线文档了。
40.3. Cargo
- 官方文档
40.3.1. Cargo参数
$ cargo -h
Rust's package manager
USAGE:
cargo [+toolchain] [OPTIONS] [SUBCOMMAND]
OPTIONS:
-V, --version Print version info and exit
--list List installed commands
--explain <CODE> Run `rustc --explain CODE`
-v, --verbose Use verbose output (-vv very verbose/build.rs output)
-q, --quiet No output printed to stdout
--color <WHEN> Coloring: auto, always, never
--frozen Require Cargo.lock and cache are up to date
--locked Require Cargo.lock is up to date
--offline Run without accessing the network
--config <KEY=VALUE>... Override a configuration value (unstable)
-Z <FLAG>... Unstable (nightly-only) flags to Cargo, see 'cargo -Z help' for details
-h, --help Prints help information
Some common cargo commands are (see all commands with --list):
build, b Compile the current package
check, c Analyze the current package and report errors, but don't build object files
clean Remove the target directory
doc Build this package's and its dependencies' documentation
new Create a new cargo package
init Create a new cargo package in an existing directory
run, r Run a binary or example of the local package
test, t Run the tests
bench Run the benchmarks
update Update dependencies listed in Cargo.lock
search Search registry for crates
publish Package and upload this package to the registry
install Install a Rust binary. Default location is $HOME/.cargo/bin
uninstall Uninstall a Rust binary
See 'cargo help <command>' for more information on a specific command.
40.3.2. Cargo源设置
cat << EOF > ~/.cargo/config
[source.crates-io]
replace-with = 'tuna'
[source.tuna]
registry = "https://mirrors.tuna.tsinghua.edu.cn/git/crates.io-index.git"
EOF
40.3.3. Cargo实践
用cargo基于Git仓库创建一个Rust项目:
cargo new --vcs=git hello_cargo
cd hello_cargo
ls .git*
编译并运行,方法一:
cargo build
cargo build --release
./target/debug/hello_cargo
编译并运行,方法二:
cargo run
分析当前项目,报告错误信息(不编译):
cargo check
40.4. 静态二进制构建
参考文档:
一般情况下,编写的项目代码没有使用C代码,可以直接构建不依赖libc的静态二进制文件:
rustup update
rustup target add x86_64-unknown-linux-musl
cargo build --target x86_64-unknown-linux-musl
41. Android
41.1. 环境配置
41.1.1. 安装命令行工具
|
下载地址: Command line tools only → |
sudo pacman -S --noconfirm jdk17-openjdk jre17-openjdk jre17-openjdk-headless
sudo archlinux-java set java-17-openjdk
echo "export ANDROID_HOME=${HOME}/Android/Sdk" >> ~/.bashrc
echo "export ANDROID_SDK_HOME=${ANDROID_HOME}" >> ~/.bashrc
source ~/.bashrc
echo "export PATH=${ANDROID_HOME}/cmdline-tools/latest/bin:${ANDROID_HOME}/platform-tools:${ANDROID_HOME}/emulator:\$PATH" >> ~/.bashrc
source ~/.bashrc
mkdir -p ${ANDROID_HOME}
wget https://dl.google.com/android/repository/commandlinetools-linux-10406996_latest.zip -O commandlinetools-linux-10406996_latest.zip
unzip commandlinetools-linux-10406996_latest.zip -d ${ANDROID_HOME}
mkdir -p ${ANDROID_HOME}/cmdline-tools/latest/
mv ${ANDROID_HOME}/cmdline-tools/* ${ANDROID_HOME}/cmdline-tools/latest/
which sdkmanager
sdkmanager --version
sdkmanager --update
41.1.2. 初始化SDK配置
# 逐个同意许可证 'y'
sdkmanager --licenses
41.1.3. 查看包列表
sdkmanager --list
41.1.4. 安装开发工具
sdkmanager --install \
platform-tools \
emulator \
'build-tools;34.0.0' \
'patcher;v4' \
'sources;android-34' \
'platforms;android-33' \
'platforms;android-34' \
'system-images;android-34;google_apis;x86_64'
41.1.5. 测试工具
adb version
emulator version
sdkmanager --list_installed
emulator -list-avds
42. Flutter
42.1. 环境配置
echo "export PUB_HOSTED_URL=https://pub.flutter-io.cn" >> ~/.bash_profile
echo "export FLUTTER_STORAGE_BASE_URL=https://storage.flutter-io.cn" >> ~/.bash_profile
echo "export PATH=$PWD/flutter/bin:$PATH" >> ~/.bash_profile
. ~/.bash_profile
git clone https://github.com/flutter/flutter.git
which flutter dart
cd flutter
# ${HOME}/.config/flutter/settings
flutter config --android-sdk=${HOME}/Android/Sdk
# 不加代理 Network resources 检查会失败
export all_proxy="socks5://192.168.2.8:1080"
export http_proxy="http://192.168.2.8:2080"
export https_proxy="http://192.168.2.8:2080"
export no_proxy="localhost,::1,127.0.0.1"
flutter doctor -v
flutter doctor --android-licenses
每次运行 flutter doctor 都会请求网络下载数据
|
|
安装指定版本,比如3.10.6。只需要切换分支,然后运行
|
flutter doctor 使用 proxychains 代理运行时,adb 命令会报错
|
43. Systemd
43.1. 最佳实践
43.1.1. 保存文本格式日志
标准配置
cat << EOF > /usr/lib/systemd/system/xxl_job_admin.service
[Unit]
Description=XXL-JOB Admin Service
After=network.target remote-fs.target nss-lookup.target
[Service]
Type=simple
Environment="PORT=8080"
Environment="CONFIG_FILE=/data/xxl-job/admin/application.properties"
Environment="JAR_FILE=/data/xxl-job/admin/xxl-job-admin-2.2.0-SNAPSHOT.jar"
User=xxl_job
Group=xxl_job
WorkingDirectory=/data/xxl-job/admin
ExecStart=/usr/bin/java -Dserver.port=\${PORT} -Dspring.config.location=\${CONFIG_FILE} -jar \${JAR_FILE}
SuccessExitStatus=143
StandardOutput=null (1)
StandardError=journal (2)
[Install]
WantedBy=multi-user.target
EOF
| 1 | 标准输出重定向至 /dev/null |
| 2 | 标准错误重定向至 journal,journal -u xxl_job_admin 会显示服务运行相关错误日志 |
增强配置
journal 采用非文本格式保存日志,查看不便,增加 syslog 配置,保存副本到文本文件。
重定向到 syslog 后,journal 有同样的日志内容。
|
Service文件配置:
cat << EOF > /usr/lib/systemd/system/xxl_job_admin.service
[Unit]
Description=XXL-JOB Admin Service
After=network.target remote-fs.target nss-lookup.target
[Service]
Type=simple
Environment="PORT=8080"
Environment="CONFIG_FILE=/data/xxl-job/admin/application.properties"
Environment="JAR_FILE=/data/xxl-job/admin/xxl-job-admin-2.2.0-SNAPSHOT.jar"
User=xxl_job
Group=xxl_job
WorkingDirectory=/data/xxl-job/admin
ExecStart=/usr/bin/java -Dserver.port=\${PORT} -Dspring.config.location=\${CONFIG_FILE} -jar \${JAR_FILE}
SuccessExitStatus=143
StandardOutput=null
StandardError=syslog (1)
SyslogIdentifier=xxl-job-admin (2)
[Install]
WantedBy=multi-user.target
EOF
| 1 | 标准错误重定向至 syslog |
| 2 | 设置 syslog 标识 |
syslog 配置:
echo ':programname, isequal, "xxl-job-admin" /var/log/xxl_job/admin_error.log' > /etc/rsyslog.d/xxl-job-admin.conf
重启日志服务:
systemctl restart rsyslog
确认日志文件:
tail -f /var/log/xxl_job/admin_error.log
给Nginx配置一个有 HTTP基本身份验证 的站点,可以用浏览器查看日志,方便开发人员调试。
cat << EOF > /etc/logrotate.d/xxl-job-admin
/var/log/xxl_job/admin_error.log {
daily
missingok
rotate 52
compress
delaycompress
notifempty
create 640 xxl_job adm
copytruncate (1)
}
EOF
| 1 | 复制日志文件后,再清空旧日志文件。需要程序有 reload 类似支持才能改名后重载 |
归档时间由 /etc/cron.daily/logrotate 计划任务控制
|
cat << EOF > /etc/nginx/conf.d/xxl_admin_log.conf
server {
listen 34567;
server_name _;
root /var/log/xxl_job;
default_type text/plain; (1)
autoindex on;
autoindex_localtime on;
# 设置文件大小显示单位
autoindex_exact_size off;
auth_basic "Administrator’s Area";
auth_basic_user_file /etc/nginx/.htpasswd_log;
#location ~ \.log$ {
# default_type text/plain; (2)
#}
}
EOF
nginx -s reload
| 1 | 设置 Content-Type 为 text/plain,浏览器会直接显示而不是提示下载 |
| 2 | admin_error_log.1 默认配置能直接查看,只想支持 .log 文件可以采用本设置 |
43.1.2. 清理journal日志
# 查看日志总大小:方法一
du -sh /run/log/journal/
# 查看日志总大小:方法二
journalctl --disk-usage
# 清理前创建新日志文件
journalctl --rotate
# 清理N天前的日志
journalctl --vacuum-time=60d
journalctl --vacuum-time=2m
# 当前保留多大的日志文件总大小,超过大小的将被删除
journalctl --vacuum-size=500M
# 当前保留多少个日志文件,超过数量的将被删除
journalctl --vacuum-files=5
持久化配置
# 设置保存的日志总大小
crudini --set /etc/systemd/journald.conf Journal SystemMaxUse 500M
crudini --set /etc/systemd/journald.conf Journal RuntimeMaxUse 500M
systemctl restart systemd-journald
44. Jenkins
44.1. 最佳实践
44.1.1. Jenkins+HTPPS
cat << EOF > /etc/nginx/conf.d/jenkins.conf
map \$http_upgrade \$connection_upgrade {
default upgrade;
'' close;
}
server {
listen 443 ssl http2;
server_name jenkins.foo.com;
root /data/web/jenkins.foo.com;
access_log /var/log/nginx/jenkins.foo.com_access.log main;
error_log /var/log/nginx/jenkins.foo.com_error.log;
# certs sent to the client in SERVER HELLO are concatenated in ssl_certificate
ssl_certificate /etc/letsencrypt/live/foo.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/foo.com/privkey.pem;
ssl_session_timeout 1d;
ssl_session_cache shared:SSL:50m;
ssl_session_tickets off;
# Diffie-Hellman parameter for DHE ciphersuites, recommended 2048 bits
ssl_dhparam /etc/letsencrypt/live/foo.com/dhparam.pem;
# intermediate configuration. tweak to your needs.
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers 'ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDHE-ECDSA-DES-CBC3-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA:!DSS';
ssl_prefer_server_ciphers on;
# HSTS (ngx_http_headers_module is required) (15768000 seconds = 6 months)
add_header Strict-Transport-Security max-age=15768000;
# OCSP Stapling ---
# fetch OCSP records from URL in ssl_certificate and cache them
ssl_stapling on;
ssl_stapling_verify on;
# nginx: Specifies a file with trusted CA certificates in the PEM format used to verify client certificates and OCSP responses if ssl_stapling is enabled.
# certbot: If you’re using OCSP stapling with Nginx >= 1.3.7, chain.pem should be provided as the ssl_trusted_certificate to validate OCSP responses.
ssl_trusted_certificate /etc/letsencrypt/live/foo.com/chain.pem;
# pass through headers from Jenkins that Nginx considers invalid
ignore_invalid_headers off;
location / {
#this is the maximum upload size
client_max_body_size 10m;
client_body_buffer_size 128k;
proxy_pass http://127.0.0.1:8282;
proxy_connect_timeout 90;
proxy_send_timeout 90;
proxy_read_timeout 90;
proxy_request_buffering off; # Required for HTTP CLI commands
proxy_set_header Connection ""; # Clear for keepalive
# Required for Jenkins websocket agents
proxy_set_header Connection \$connection_upgrade;
proxy_set_header Upgrade \$http_upgrade;
proxy_set_header Host \$http_host;
proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto \$scheme;
proxy_set_header X-Forwarded-Port \$server_port;
proxy_set_header X-Real-IP \$remote_addr;
proxy_max_temp_file_size 0;
proxy_redirect default;
proxy_http_version 1.1;
}
location /crumbIssuer { (1)
return 403;
}
}
EOF
| 1 | 恶意程序可能通过 /crumbIssuer/api/json 在未经授权的情况下,安装挖坑程序。默认禁止访问 |
45. Chrome
45.1. Chrome
45.1.1. 安装 Proxy SwitchyOmega 扩展
安装 Proxy SwitchyOmega 之前,需要访问Google应用商店,让Chrome挂全局代理:
- Linux
-
google-chrome-stable --proxy-server="socks5://192.168.1.5:1080"
- Windows
-
Google Chrome快捷方式的属性中,追加程序运行参数,得到"C:\xxxx\chrome.exe" --proxy-server="socks5://192.168.1.5:1080"
然后,安装扩展 Proxy SwitchyOmega
Appendix A: The Extended ASCII Table
A.1. ASCII control characters (character code 0-31)
The first 32 characters in the ASCII-table are unprintable control codes and are used to control peripherals such as printers.
| DEC | OCT | HEX | BIN | Symbol | HTML Number | HTML Name | Description |
|---|---|---|---|---|---|---|---|
0 |
000 |
00 |
00000000 |
NUL |
� |
Null char |
|
1 |
001 |
01 |
00000001 |
SOH |
 |
Start of Heading |
|
2 |
002 |
02 |
00000010 |
STX |
 |
Start of Text |
|
3 |
003 |
03 |
00000011 |
ETX |
 |
End of Text |
|
4 |
004 |
04 |
00000100 |
EOT |
 |
End of Transmission |
|
5 |
005 |
05 |
00000101 |
ENQ |
 |
Enquiry |
|
6 |
006 |
06 |
00000110 |
ACK |
 |
Acknowledgment |
|
7 |
007 |
07 |
00000111 |
BEL |
 |
Bell |
|
8 |
010 |
08 |
00001000 |
BS |
 |
Back Space |
|
9 |
011 |
09 |
00001001 |
HT |
	 |
Horizontal Tab |
|
10 |
012 |
0A |
00001010 |
LF |

 |
Line Feed |
|
11 |
013 |
0B |
00001011 |
VT |
 |
Vertical Tab |
|
12 |
014 |
0C |
00001100 |
FF |
 |
Form Feed |
|
13 |
015 |
0D |
00001101 |
CR |

 |
Carriage Return |
|
14 |
016 |
0E |
00001110 |
SO |
 |
Shift Out / X-On |
|
15 |
017 |
0F |
00001111 |
SI |
 |
Shift In / X-Off |
|
16 |
020 |
10 |
00010000 |
DLE |
 |
Data Line Escape |
|
17 |
021 |
11 |
00010001 |
DC1 |
 |
Device Control 1 (oft. XON) |
|
18 |
022 |
12 |
00010010 |
DC2 |
 |
Device Control 2 |
|
19 |
023 |
13 |
00010011 |
DC3 |
 |
Device Control 3 (oft. XOFF) |
|
20 |
024 |
14 |
00010100 |
DC4 |
 |
Device Control 4 |
|
21 |
025 |
15 |
00010101 |
NAK |
 |
Negative Acknowledgement |
|
22 |
026 |
16 |
00010110 |
SYN |
 |
Synchronous Idle |
|
23 |
027 |
17 |
00010111 |
ETB |
 |
End of Transmit Block |
|
24 |
030 |
18 |
00011000 |
CAN |
 |
Cancel |
|
25 |
031 |
19 |
00011001 |
EM |
 |
End of Medium |
|
26 |
032 |
1A |
00011010 |
SUB |
 |
Substitute |
|
27 |
033 |
1B |
00011011 |
ESC |
 |
Escape |
|
28 |
034 |
1C |
00011100 |
FS |
 |
File Separator |
|
29 |
035 |
1D |
00011101 |
GS |
 |
Group Separator |
|
30 |
036 |
1E |
00011110 |
RS |
 |
Record Separator |
|
31 |
037 |
1F |
00011111 |
US |
 |
Unit Separator |
A.2. ASCII printable characters (character code 32-127)
Codes 32-127 are common for all the different variations of the ASCII table, they are called printable characters, represent letters, digits, punctuation marks, and a few miscellaneous symbols. You will find almost every character on your keyboard. Character 127 represents the command DEL.
| DEC | OCT | HEX | BIN | Symbol | HTML Number | HTML Name | Description |
|---|---|---|---|---|---|---|---|
32 |
040 |
20 |
00100000 |
|
  |
Space |
|
33 |
041 |
21 |
00100001 |
! |
! |
Exclamation mark |
|
34 |
042 |
22 |
00100010 |
" |
" |
" |
Double quotes (or speech marks) |
35 |
043 |
23 |
00100011 |
# |
# |
Number |
|
36 |
044 |
24 |
00100100 |
$ |
$ |
Dollar |
|
37 |
045 |
25 |
00100101 |
% |
% |
Procenttecken |
|
38 |
046 |
26 |
00100110 |
& |
& |
& |
Ampersand |
39 |
047 |
27 |
00100111 |
' |
' |
Single quote |
|
40 |
050 |
28 |
00101000 |
( |
( |
Open parenthesis (or open bracket) |
|
41 |
051 |
29 |
00101001 |
) |
) |
Close parenthesis (or close bracket) |
|
42 |
052 |
2A |
00101010 |
* |
* |
Asterisk |
|
43 |
053 |
2B |
00101011 |
+ |
+ |
Plus |
|
44 |
054 |
2C |
00101100 |
, |
, |
Comma |
|
45 |
055 |
2D |
00101101 |
- |
- |
Hyphen |
|
46 |
056 |
2E |
00101110 |
. |
. |
Period, dot or full stop |
|
47 |
057 |
2F |
00101111 |
/ |
/ |
Slash or divide |
|
48 |
060 |
30 |
00110000 |
0 |
0 |
Zero |
|
49 |
061 |
31 |
00110001 |
1 |
1 |
One |
|
50 |
062 |
32 |
00110010 |
2 |
2 |
Two |
|
51 |
063 |
33 |
00110011 |
3 |
3 |
Three |
|
52 |
064 |
34 |
00110100 |
4 |
4 |
Four |
|
53 |
065 |
35 |
00110101 |
5 |
5 |
Five |
|
54 |
066 |
36 |
00110110 |
6 |
6 |
Six |
|
55 |
067 |
37 |
00110111 |
7 |
7 |
Seven |
|
56 |
070 |
38 |
00111000 |
8 |
8 |
Eight |
|
57 |
071 |
39 |
00111001 |
9 |
9 |
Nine |
|
58 |
072 |
3A |
00111010 |
: |
: |
Colon |
|
59 |
073 |
3B |
00111011 |
; |
; |
Semicolon |
|
60 |
074 |
3C |
00111100 |
< |
< |
< |
Less than (or open angled bracket) |
61 |
075 |
3D |
00111101 |
= |
= |
Equals |
|
62 |
076 |
3E |
00111110 |
> |
> |
> |
Greater than (or close angled bracket) |
63 |
077 |
3F |
00111111 |
? |
? |
Question mark |
|
64 |
100 |
40 |
01000000 |
@ |
@ |
At symbol |
|
65 |
101 |
41 |
01000001 |
A |
A |
Uppercase A |
|
66 |
102 |
42 |
01000010 |
B |
B |
Uppercase B |
|
67 |
103 |
43 |
01000011 |
C |
C |
Uppercase C |
|
68 |
104 |
44 |
01000100 |
D |
D |
Uppercase D |
|
69 |
105 |
45 |
01000101 |
E |
E |
Uppercase E |
|
70 |
106 |
46 |
01000110 |
F |
F |
Uppercase F |
|
71 |
107 |
47 |
01000111 |
G |
G |
Uppercase G |
|
72 |
110 |
48 |
01001000 |
H |
H |
Uppercase H |
|
73 |
111 |
49 |
01001001 |
I |
I |
Uppercase I |
|
74 |
112 |
4A |
01001010 |
J |
J |
Uppercase J |
|
75 |
113 |
4B |
01001011 |
K |
K |
Uppercase K |
|
76 |
114 |
4C |
01001100 |
L |
L |
Uppercase L |
|
77 |
115 |
4D |
01001101 |
M |
M |
Uppercase M |
|
78 |
116 |
4E |
01001110 |
N |
N |
Uppercase N |
|
79 |
117 |
4F |
01001111 |
O |
O |
Uppercase O |
|
80 |
120 |
50 |
01010000 |
P |
P |
Uppercase P |
|
81 |
121 |
51 |
01010001 |
Q |
Q |
Uppercase Q |
|
82 |
122 |
52 |
01010010 |
R |
R |
Uppercase R |
|
83 |
123 |
53 |
01010011 |
S |
S |
Uppercase S |
|
84 |
124 |
54 |
01010100 |
T |
T |
Uppercase T |
|
85 |
125 |
55 |
01010101 |
U |
U |
Uppercase U |
|
86 |
126 |
56 |
01010110 |
V |
V |
Uppercase V |
|
87 |
127 |
57 |
01010111 |
W |
W |
Uppercase W |
|
88 |
130 |
58 |
01011000 |
X |
X |
Uppercase X |
|
89 |
131 |
59 |
01011001 |
Y |
Y |
Uppercase Y |
|
90 |
132 |
5A |
01011010 |
Z |
Z |
Uppercase Z |
|
91 |
133 |
5B |
01011011 |
[ |
[ |
Opening bracket |
|
92 |
134 |
5C |
01011100 |
\ |
\ |
Backslash |
|
93 |
135 |
5D |
01011101 |
] |
] |
Closing bracket |
|
94 |
136 |
5E |
01011110 |
^ |
^ |
Caret - circumflex |
|
95 |
137 |
5F |
01011111 |
_ |
_ |
Underscore |
|
96 |
140 |
60 |
01100000 |
` |
` |
Grave accent |
|
97 |
141 |
61 |
01100001 |
a |
a |
Lowercase a |
|
98 |
142 |
62 |
01100010 |
b |
b |
Lowercase b |
|
99 |
143 |
63 |
01100011 |
c |
c |
Lowercase c |
|
100 |
144 |
64 |
01100100 |
d |
d |
Lowercase d |
|
101 |
145 |
65 |
01100101 |
e |
e |
Lowercase e |
|
102 |
146 |
66 |
01100110 |
f |
f |
Lowercase f |
|
103 |
147 |
67 |
01100111 |
g |
g |
Lowercase g |
|
104 |
150 |
68 |
01101000 |
h |
h |
Lowercase h |
|
105 |
151 |
69 |
01101001 |
i |
i |
Lowercase i |
|
106 |
152 |
6A |
01101010 |
j |
j |
Lowercase j |
|
107 |
153 |
6B |
01101011 |
k |
k |
Lowercase k |
|
108 |
154 |
6C |
01101100 |
l |
l |
Lowercase l |
|
109 |
155 |
6D |
01101101 |
m |
m |
Lowercase m |
|
110 |
156 |
6E |
01101110 |
n |
n |
Lowercase n |
|
111 |
157 |
6F |
01101111 |
o |
o |
Lowercase o |
|
112 |
160 |
70 |
01110000 |
p |
p |
Lowercase p |
|
113 |
161 |
71 |
01110001 |
q |
q |
Lowercase q |
|
114 |
162 |
72 |
01110010 |
r |
r |
Lowercase r |
|
115 |
163 |
73 |
01110011 |
s |
s |
Lowercase s |
|
116 |
164 |
74 |
01110100 |
t |
t |
Lowercase t |
|
117 |
165 |
75 |
01110101 |
u |
u |
Lowercase u |
|
118 |
166 |
76 |
01110110 |
v |
v |
Lowercase v |
|
119 |
167 |
77 |
01110111 |
w |
w |
Lowercase w |
|
120 |
170 |
78 |
01111000 |
x |
x |
Lowercase x |
|
121 |
171 |
79 |
01111001 |
y |
y |
Lowercase y |
|
122 |
172 |
7A |
01111010 |
z |
z |
Lowercase z |
|
123 |
173 |
7B |
01111011 |
{ |
{ |
Opening brace |
|
124 |
174 |
7C |
01111100 |
| |
| |
Vertical bar |
|
125 |
175 |
7D |
01111101 |
} |
} |
Closing brace |
|
126 |
176 |
7E |
01111110 |
~ |
~ |
Equivalency sign - tilde |
|
127 |
177 |
7F |
01111111 |
 |
Delete |
A.3. The extended ASCII codes (character code 128-255)
There are several different variations of the 8-bit ASCII table. The table below is according to ISO 8859-1, also called ISO Latin-1. Codes 128-159 contain the Microsoft® Windows Latin-1 extended characters.
| DEC | OCT | HEX | BIN | Symbol | HTML Number | HTML Name | Description |
|---|---|---|---|---|---|---|---|
128 |
200 |
80 |
10000000 |
€ |
€ |
€ |
Euro sign |
129 |
201 |
81 |
10000001 |
|
|
|
|
130 |
202 |
82 |
10000010 |
‚ |
‚ |
‚ |
Single low-9 quotation mark |
131 |
203 |
83 |
10000011 |
ƒ |
ƒ |
ƒ |
Latin small letter f with hook |
132 |
204 |
84 |
10000100 |
„ |
„ |
„ |
Double low-9 quotation mark |
133 |
205 |
85 |
10000101 |
… |
… |
… |
Horizontal ellipsis |
134 |
206 |
86 |
10000110 |
† |
† |
† |
Dagger |
135 |
207 |
87 |
10000111 |
‡ |
‡ |
‡ |
Double dagger |
136 |
210 |
88 |
10001000 |
ˆ |
ˆ |
ˆ |
Modifier letter circumflex accent |
137 |
211 |
89 |
10001001 |
‰ |
‰ |
‰ |
Per mille sign |
138 |
212 |
8A |
10001010 |
Š |
Š |
Š |
Latin capital letter S with caron |
139 |
213 |
8B |
10001011 |
‹ |
‹ |
‹ |
Single left-pointing angle quotation |
140 |
214 |
8C |
10001100 |
Œ |
Œ |
Œ |
Latin capital ligature OE |
141 |
215 |
8D |
10001101 |
|
|
|
|
142 |
216 |
8E |
10001110 |
Ž |
Ž |
|
Latin captial letter Z with caron |
143 |
217 |
8F |
10001111 |
|
|
|
|
144 |
220 |
90 |
10010000 |
|
|
|
|
145 |
221 |
91 |
10010001 |
‘ |
‘ |
‘ |
Left single quotation mark |
146 |
222 |
92 |
10010010 |
’ |
’ |
’ |
Right single quotation mark |
147 |
223 |
93 |
10010011 |
“ |
“ |
“ |
Left double quotation mark |
148 |
224 |
94 |
10010100 |
” |
” |
” |
Right double quotation mark |
149 |
225 |
95 |
10010101 |
• |
• |
• |
Bullet |
150 |
226 |
96 |
10010110 |
– |
– |
– |
En dash |
151 |
227 |
97 |
10010111 |
— |
— |
— |
Em dash |
152 |
230 |
98 |
10011000 |
˜ |
˜ |
˜ |
Small tilde |
153 |
231 |
99 |
10011001 |
™ |
™ |
™ |
Trade mark sign |
154 |
232 |
9A |
10011010 |
š |
š |
š |
Latin small letter S with caron |
155 |
233 |
9B |
10011011 |
› |
› |
› |
Single right-pointing angle quotation mark |
156 |
234 |
9C |
10011100 |
œ |
œ |
œ |
Latin small ligature oe |
157 |
235 |
9D |
10011101 |
|
|
|
|
158 |
236 |
9E |
10011110 |
ž |
ž |
|
Latin small letter z with caron |
159 |
237 |
9F |
10011111 |
Ÿ |
Ÿ |
Ÿ |
Latin capital letter Y with diaeresis |
160 |
240 |
A0 |
10100000 |
|
  |
|
Non-breaking space |
161 |
241 |
A1 |
10100001 |
¡ |
¡ |
¡ |
Inverted exclamation mark |
162 |
242 |
A2 |
10100010 |
¢ |
¢ |
¢ |
Cent sign |
163 |
243 |
A3 |
10100011 |
£ |
£ |
£ |
Pound sign |
164 |
244 |
A4 |
10100100 |
¤ |
¤ |
¤ |
Currency sign |
165 |
245 |
A5 |
10100101 |
¥ |
¥ |
¥ |
Yen sign |
166 |
246 |
A6 |
10100110 |
¦ |
¦ |
¦ |
Pipe, Broken vertical bar |
167 |
247 |
A7 |
10100111 |
§ |
§ |
§ |
Section sign |
168 |
250 |
A8 |
10101000 |
¨ |
¨ |
¨ |
Spacing diaeresis - umlaut |
169 |
251 |
A9 |
10101001 |
© |
© |
© |
Copyright sign |
170 |
252 |
AA |
10101010 |
ª |
ª |
ª |
Feminine ordinal indicator |
171 |
253 |
AB |
10101011 |
« |
« |
« |
Left double angle quotes |
172 |
254 |
AC |
10101100 |
¬ |
¬ |
¬ |
Not sign |
173 |
255 |
AD |
10101101 |
|
­ |
­ |
Soft hyphen |
174 |
256 |
AE |
10101110 |
® |
® |
® |
Registered trade mark sign |
175 |
257 |
AF |
10101111 |
¯ |
¯ |
¯ |
Spacing macron - overline |
176 |
260 |
B0 |
10110000 |
° |
° |
° |
Degree sign |
177 |
261 |
B1 |
10110001 |
± |
± |
± |
Plus-or-minus sign |
178 |
262 |
B2 |
10110010 |
² |
² |
² |
Superscript two - squared |
179 |
263 |
B3 |
10110011 |
³ |
³ |
³ |
Superscript three - cubed |
180 |
264 |
B4 |
10110100 |
´ |
´ |
´ |
Acute accent - spacing acute |
181 |
265 |
B5 |
10110101 |
µ |
µ |
µ |
Micro sign |
182 |
266 |
B6 |
10110110 |
¶ |
¶ |
¶ |
Pilcrow sign - paragraph sign |
183 |
267 |
B7 |
10110111 |
· |
· |
· |
Middle dot - Georgian comma |
184 |
270 |
B8 |
10111000 |
¸ |
¸ |
¸ |
Spacing cedilla |
185 |
271 |
B9 |
10111001 |
¹ |
¹ |
¹ |
Superscript one |
186 |
272 |
BA |
10111010 |
º |
º |
º |
Masculine ordinal indicator |
187 |
273 |
BB |
10111011 |
» |
» |
» |
Right double angle quotes |
188 |
274 |
BC |
10111100 |
¼ |
¼ |
¼ |
Fraction one quarter |
189 |
275 |
BD |
10111101 |
½ |
½ |
½ |
Fraction one half |
190 |
276 |
BE |
10111110 |
¾ |
¾ |
¾ |
Fraction three quarters |
191 |
277 |
BF |
10111111 |
¿ |
¿ |
¿ |
Inverted question mark |
192 |
300 |
C0 |
11000000 |
À |
À |
À |
Latin capital letter A with grave |
193 |
301 |
C1 |
11000001 |
Á |
Á |
Á |
Latin capital letter A with acute |
194 |
302 |
C2 |
11000010 |
 |
 |
 |
Latin capital letter A with circumflex |
195 |
303 |
C3 |
11000011 |
à |
à |
à |
Latin capital letter A with tilde |
196 |
304 |
C4 |
11000100 |
Ä |
Ä |
Ä |
Latin capital letter A with diaeresis |
197 |
305 |
C5 |
11000101 |
Å |
Å |
Å |
Latin capital letter A with ring above |
198 |
306 |
C6 |
11000110 |
Æ |
Æ |
Æ |
Latin capital letter AE |
199 |
307 |
C7 |
11000111 |
Ç |
Ç |
Ç |
Latin capital letter C with cedilla |
200 |
310 |
C8 |
11001000 |
È |
È |
È |
Latin capital letter E with grave |
201 |
311 |
C9 |
11001001 |
É |
É |
É |
Latin capital letter E with acute |
202 |
312 |
CA |
11001010 |
Ê |
Ê |
Ê |
Latin capital letter E with circumflex |
203 |
313 |
CB |
11001011 |
Ë |
Ë |
Ë |
Latin capital letter E with diaeresis |
204 |
314 |
CC |
11001100 |
Ì |
Ì |
Ì |
Latin capital letter I with grave |
205 |
315 |
CD |
11001101 |
Í |
Í |
Í |
Latin capital letter I with acute |
206 |
316 |
CE |
11001110 |
Î |
Î |
Î |
Latin capital letter I with circumflex |
207 |
317 |
CF |
11001111 |
Ï |
Ï |
Ï |
Latin capital letter I with diaeresis |
208 |
320 |
D0 |
11010000 |
Ð |
Ð |
Ð |
Latin capital letter ETH |
209 |
321 |
D1 |
11010001 |
Ñ |
Ñ |
Ñ |
Latin capital letter N with tilde |
210 |
322 |
D2 |
11010010 |
Ò |
Ò |
Ò |
Latin capital letter O with grave |
211 |
323 |
D3 |
11010011 |
Ó |
Ó |
Ó |
Latin capital letter O with acute |
212 |
324 |
D4 |
11010100 |
Ô |
Ô |
Ô |
Latin capital letter O with circumflex |
213 |
325 |
D5 |
11010101 |
Õ |
Õ |
Õ |
Latin capital letter O with tilde |
214 |
326 |
D6 |
11010110 |
Ö |
Ö |
Ö |
Latin capital letter O with diaeresis |
215 |
327 |
D7 |
11010111 |
× |
× |
× |
Multiplication sign |
216 |
330 |
D8 |
11011000 |
Ø |
Ø |
Ø |
Latin capital letter O with slash |
217 |
331 |
D9 |
11011001 |
Ù |
Ù |
Ù |
Latin capital letter U with grave |
218 |
332 |
DA |
11011010 |
Ú |
Ú |
Ú |
Latin capital letter U with acute |
219 |
333 |
DB |
11011011 |
Û |
Û |
Û |
Latin capital letter U with circumflex |
220 |
334 |
DC |
11011100 |
Ü |
Ü |
Ü |
Latin capital letter U with diaeresis |
221 |
335 |
DD |
11011101 |
Ý |
Ý |
Ý |
Latin capital letter Y with acute |
222 |
336 |
DE |
11011110 |
Þ |
Þ |
Þ |
Latin capital letter THORN |
223 |
337 |
DF |
11011111 |
ß |
ß |
ß |
Latin small letter sharp s - ess-zed |
224 |
340 |
E0 |
11100000 |
à |
à |
à |
Latin small letter a with grave |
225 |
341 |
E1 |
11100001 |
á |
á |
á |
Latin small letter a with acute |
226 |
342 |
E2 |
11100010 |
â |
â |
â |
Latin small letter a with circumflex |
227 |
343 |
E3 |
11100011 |
ã |
ã |
ã |
Latin small letter a with tilde |
228 |
344 |
E4 |
11100100 |
ä |
ä |
ä |
Latin small letter a with diaeresis |
229 |
345 |
E5 |
11100101 |
å |
å |
å |
Latin small letter a with ring above |
230 |
346 |
E6 |
11100110 |
æ |
æ |
æ |
Latin small letter ae |
231 |
347 |
E7 |
11100111 |
ç |
ç |
ç |
Latin small letter c with cedilla |
232 |
350 |
E8 |
11101000 |
è |
è |
è |
Latin small letter e with grave |
233 |
351 |
E9 |
11101001 |
é |
é |
é |
Latin small letter e with acute |
234 |
352 |
EA |
11101010 |
ê |
ê |
ê |
Latin small letter e with circumflex |
235 |
353 |
EB |
11101011 |
ë |
ë |
ë |
Latin small letter e with diaeresis |
236 |
354 |
EC |
11101100 |
ì |
ì |
ì |
Latin small letter i with grave |
237 |
355 |
ED |
11101101 |
í |
í |
í |
Latin small letter i with acute |
238 |
356 |
EE |
11101110 |
î |
î |
î |
Latin small letter i with circumflex |
239 |
357 |
EF |
11101111 |
ï |
ï |
ï |
Latin small letter i with diaeresis |
240 |
360 |
F0 |
11110000 |
ð |
ð |
ð |
Latin small letter eth |
241 |
361 |
F1 |
11110001 |
ñ |
ñ |
ñ |
Latin small letter n with tilde |
242 |
362 |
F2 |
11110010 |
ò |
ò |
ò |
Latin small letter o with grave |
243 |
363 |
F3 |
11110011 |
ó |
ó |
ó |
Latin small letter o with acute |
244 |
364 |
F4 |
11110100 |
ô |
ô |
ô |
Latin small letter o with circumflex |
245 |
365 |
F5 |
11110101 |
õ |
õ |
õ |
Latin small letter o with tilde |
246 |
366 |
F6 |
11110110 |
ö |
ö |
ö |
Latin small letter o with diaeresis |
247 |
367 |
F7 |
11110111 |
÷ |
÷ |
÷ |
Division sign |
248 |
370 |
F8 |
11111000 |
ø |
ø |
ø |
Latin small letter o with slash |
249 |
371 |
F9 |
11111001 |
ù |
ù |
ù |
Latin small letter u with grave |
250 |
372 |
FA |
11111010 |
ú |
ú |
ú |
Latin small letter u with acute |
251 |
373 |
FB |
11111011 |
û |
û |
û |
Latin small letter u with circumflex |
252 |
374 |
FC |
11111100 |
ü |
ü |
ü |
Latin small letter u with diaeresis |
253 |
375 |
FD |
11111101 |
ý |
ý |
ý |
Latin small letter y with acute |
254 |
376 |
FE |
11111110 |
þ |
þ |
þ |
Latin small letter thorn |
255 |
377 |
FF |
11111111 |
ÿ |
ÿ |
ÿ |
Latin small letter y with diaeresis |
